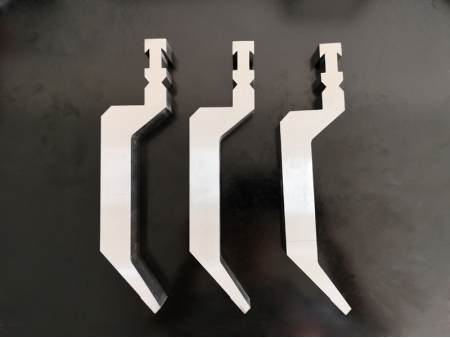

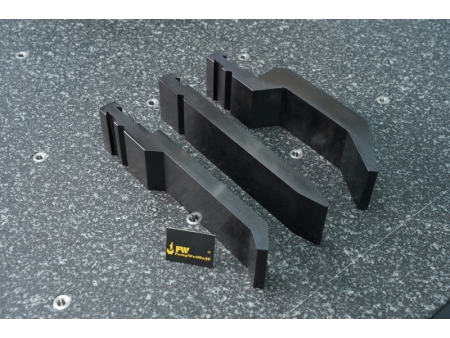

American Precision Style
The Bystronic precision press brake tooling is an American style tooling, which is compatible with press brake machines from Bystronic-Beyeler RFA, Bystronic-Beyeler RF, Bystronic-Beyeler R and Bystronic-Beyeler S, etc.
Fangwei has a large number of inventories of Bystronic press brake tooling for customer to choose from. The following are common types of Bystronic press brake tooling. If you don’t find the press brake tools you need, please feel free to contact us.
- Based on our rich experience in press brake tooling production, the following three optimum materials are recommended to satisfy your high quality requirements. Other materials can also be customized to fit your specific needs.
- 42CrMo4, tempered to 1100 - 1200 N / mm2
- 1.2312, tempered to 950 - 1100 N / mm2
- C45, tempered to 800 - 850 N / mm2
- Bending radius and intake radius are hardened up to 45-50RC.
- The Bystronic press brake tooling features high universality. After the length or bend angle is being adjusted or via the adapters, the press brake tooling is applicable on any other press brake machines.

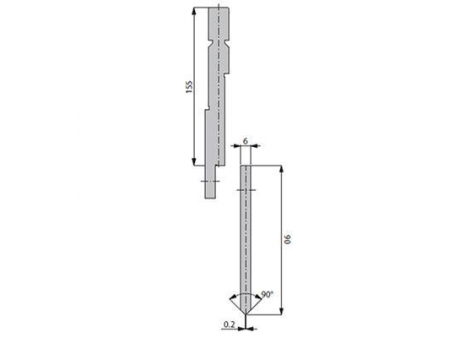

- Length 500 mm
- Length 300 mm
- Length 200 mm
- Length 100 mm
Sectionalized service is available. For example, length 500 mm punches can be sectionalized into 10 segments (100 mm, 25 mm, 25 mm, 30 mm, 35 mm, 40 mm, 45 mm, 50 mm, 100 mm, 100 mm). The punches can also be provided as a complete set.

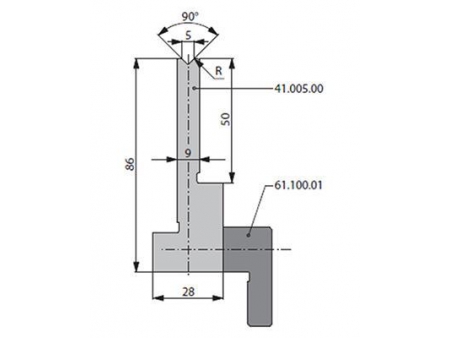

Dies- Length 508 mm
- Length 300 mm
- Length 200 mm
- Length 100 mm
Dies sectionalized service is available. For example, length 550 mm dies can be sectionalized into 9 segments (25 mm, 25 mm, 30 mm, 35 mm, 40 mm, 45 mm, 50 mm, 100 mm, 200 mm). The dies can also be delivered as a complete set.
