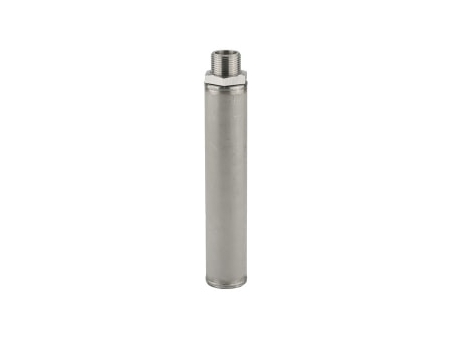

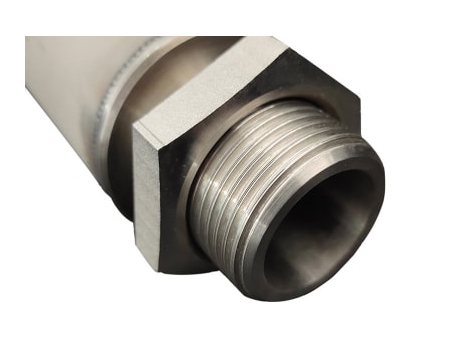

Sintered Metal Powder Filter Cartridge, PHSP Series
Our sintered metal powder filter cartridges are manufactured from sintered 316L/310S stainless steel or hastelloy alloy, providing heat resistance, high strength and corrosion resistance. Besides, this filter cartridge features uniformly-distributed pore size, exclusive permeability, washable and reusable properties.
| Filtration Layer | High-temperature-resistant materials like 316L, 310S, and Hastelloy alloy |
| Filter Medium | 316L stainless steel |
| No. | Liquid Micron Rating (μm) | Absolute Micron Rating (μm) | Porosity (%) | Average Permeability L/m2.s | Liquid Flow m3/h |
| 1 | 0.5 | 5 | 15 | 0.22 | 0.17 |
| 2 | 1 | 10 | 20 | 1.62 | 0.21 |
| 3 | 3.0 | 17 | 30 | 2.67 | 0.3 |
| 4 | 5.0 | 30 | 31 | 3.78 | 1.26 |
| 5 | 8.0 | 40 | 31 | 7.27 | 2.7 |
| 6 | 10 | 50 | 32 | 9.17 | 3.62 |
| 7 | 15 | 60 | 35 | 18.12 | 4.8 |
| 8 | 20 | 70 | 37 | 24.17 | 5.4 |
| 9 | 40 | 100 | 42 | 25.17 | 5.7 |
Note:
Bubble Point Pressure Test: Compliant with ISO 4003
Permeability Test: Compliant with ISO 4022 (Average permeability determined at 200Pa air pressure)
All filtration tests are conducted on a 60mm diameter, 300mm filter cartridge with 1.5bar pressure and liquid viscosity of 1CP·S.
| Standard Diameter | 60mm (Customizable) | ||||||||||||
| Standard Length | 5"(127mm) | 10"(254mm) | 20"(508mm) | 30"(762mm) | 40"(1000mm) | ||||||||
| Filtration Area | 0.024m2 | 0.048 m2 | 0.096 m2 | 0.14 m2 | 0.19 m2 | ||||||||
| Liquid Micron Rating (μm) | 0.5 | 1 | 3.0 | 5.0 | 8.0 | 10 | 15 | 20 | 40 | ||||
| Absolute Micron Rating (μm) | 5 | 10 | 17 | 30 | 40 | 50 | 60 | 70 | 100 | ||||
| Porosity (%) | 15 | 20 | 30 | 31 | 31 | 32 | 35 | 37 | 42 | ||||
| Average Permeability L/m2.s | 0.22 | 1.62 | 2.67 | 3.78 | 7.27 | 9.17 | 18.12 | 24.17 | 25.17 | ||||
| Liquid Flow m3/h | 0.17 | 0.21 | 0.3 | 1.26 | 2.7 | 3.62 | 4.8 | 5.4 | 5.7 | ||||
| Max. Operating Temperature | 480℃ | ||||||||||||
| Max. Differential Pressure | 4bar | ||||||||||||
Note:
Bubble Point Pressure Test: Compliant with ISO 4003
Permeability Test: Compliant with ISO 4022 (Average permeability determined at 200Pa air pressure)
All filtration tests are conducted on a 60mm diameter, 300mm filter cartridge with 1.5bar pressure and liquid viscosity of 1CP·S.
- Temperature, pressure, and corrosion resistance
- Available in various metal materials
- Zero particle shedding
- High porosity, low filtration resistance, and high permeation efficiency
- Uniform structure, narrow pore size distribution, high filtration efficiency
- Steam filtration
- Filtration of oxidative liquids
- Filtration of strong polar solvents
- Filtration of corrosive liquids
- Decarbonization filtration of liquids
- Filtration of high-temperature and high-pressure liquids and gases
