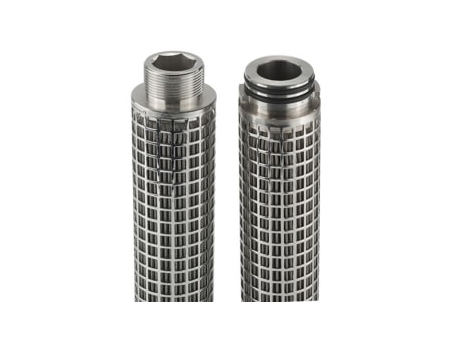

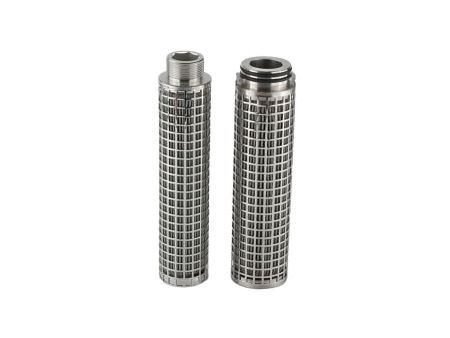

Stainless Steel Fiber Sintered Felt Filter Cartridge, PHSF Series
Introducing our stainless steel fiber sintered felt filter cartridges - a superior filtration solution designed for high-performance applications. Crafted from stainless steel fiber sintered felt, our cartridges are meticulously pleated to deliver an expanded filtration area, boasting more than three times the surface area of equivalent cylindrical filters.
Our stainless steel fiber sintered felt is a porous depth filter material formed by sintering stainless steel fibers at high temperatures. It offers multiple benefits, including an expanded filtration area, high absolute filtration efficiency, high porosity, and superior dirt holding capacity.
| Inner/Outer Support Frame | SUS 304/316 Porous stainless steel plate |
| Filtration Layer | Protective Mesh: 30-mesh or 40-mesh stainless steel woven mesh Filter Mesh: Stainless steel woven mesh with desired precision Lining Mesh: 30-mesh or 40-mesh stainless steel woven mesh |
| End Cap | SUS 304/316 Stainless steel |
| Standard Diameter | 65mm (Customizable) | ||||||||||||
| Standard Length | 5"(127mm) | 10"(254mm) | 20"(508mm) | 30"(762mm) | 40"(1016mm) | ||||||||
| Filtration Area | 0.096 m2 | 0.19 m2 | 0.38 m2 | 0.57 m2 | 0.76 m2 | ||||||||
| Liquid Micron Rating (μm) | 3 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 60 | ||||
| Gas Micron Rating (μm) | 0.5 | 1 | 2 | 3 | 10 | 16 | 20 | 30 | 45 | ||||
| Porosity (%) | 70 | 67 | 73 | 75 | 82 | 78 | 78 | 75 | 85 | ||||
| Dirt Holding Capacity (mg/ m2) | 7.9 | 5.0 | 7.8 | 7.8 | 13 | 19 | ~~ | ~~ | ~~ | ||||
| Average Permeability L/m2.s | 10 | 56.7 | 180 | 300 | 442 | 542 | 750 | 1033 | 2250 | ||||
| Liquid Flow m3/h | 0.8 | 1.3 | 2.0 | 2.3 | 2.5 | 2.8 | 3.5 | 4.5 | 5.5 | ||||
Note:
Permeability Test: Compliant with ISO 4022 (Average permeability determined at 200Pa air pressure)
All filtration tests are conducted on a 65mm diameter, 10" filter cartridge with 1.0bar pressure and liquid viscosity of 1CP·S.
- Ozone water filtration in packaged water
- Steam filtration
- Filtration of strong polar solvents
- Decarbonization filtration of liquid materials
- Filtration of viscous liquids
- Filtration of oxidative and corrosive liquids
- Filtration of high-temperature and high-pressure liquids and gases
