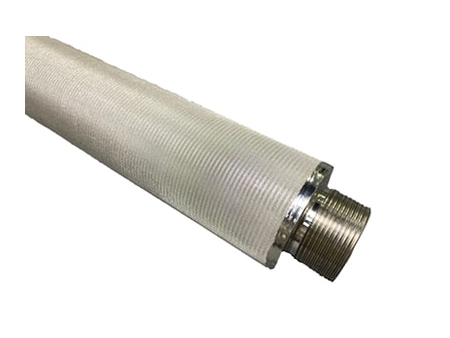

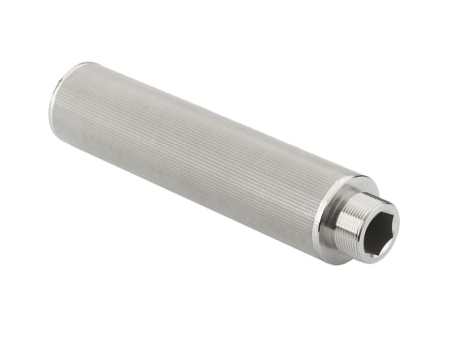

Stainless Steel Sintered Multi-layer Mesh Filter Cartridge, PHSW Series
Request a Quote
View All: http://filtrationcartridge.com/4-5-stainless-steel-sintered-multi-layer-mesh-filter-cartridge.html
Our stainless steel sintered multi-layer mesh filter cartridges are a superior alternative to titanium rod products for solid-liquid separation. Made from multiple layers of 316L or 304 stainless steel mesh through high-temperature sintering, our filter cartridges offer superior resistance to temperature, pressure, and corrosion. With high backwashing efficiency, our filter cartridges are your ideal choice for rigid particle filtration.
Materials of Construction
| Filter Medium | 316L/304 |
| Protective Mesh | SUS 304/316L Stainless steel woven mesh |
| Filter Mesh | SUS 304/316L Stainless steel woven mesh |
| Diffusion Mesh | SUS 304/316L Stainless steel woven mesh |
| Support Frame | SUS 304/316L Stainless steel woven mesh |
| Frame Layer | SUS 304/316L Stainless steel woven mesh |
Specifications
| Standard Diameter | 65mm (Customizable) | ||||||||||||
| Standard Length | 5"(127mm) | 10"(254mm) | 20"(508mm) | 30"(762mm) | 40"(1016mm) | ||||||||
| Filtration Area | 0.025m2 | 0.05 m2 | 0.10 m2 | 0.15 m2 | 0.20 m2 | ||||||||
| Liquid Micron Rating (μm) | 2 | 5 | 10 | 15 | 20 | 25 | 40 | 50 | 70 | ||||
| Gas Micron Rating (μm) | 0.8 | 1 | 3 | 10 | 15 | 20 | 25 | 35 | 50 | ||||
| Porosity (%) | 35 | ||||||||||||
| Average Permeability L/m2.s | 3.8 | 4.0 | 5.0 | 6.7 | 7.5 | 8.3 | 11.8 | 15.3 | 22.7 | ||||
| Liquid Flow m3/h | 0.25 | 0.43 | 0.5 | 0.54 | 0.58 | 0.61 | 0.67 | 0.72 | 0.91 | ||||
Note:
Bubble Point Pressure Test: Compliant with ISO 4003
Permeability Test: Compliant with ISO 4022 (Average permeability determined at 200Pa air pressure)
All filtration tests are conducted on a 65mm diameter, 10" filter cartridge with 1.0bar pressure and liquid viscosity of 1CP·S.
Features
- Full stainless steel structure
- Multi-layer sintered stainless steel design
- Uniform pore size
- Corrosion, pressure, and temperature resistant
- Effective against high-pressure backwashing
- Fully welded structure with no medium migration
Applications
- Steam and oxidative liquid filtration
- Filtration of strong polar solvents
- Filtration of corrosive liquids
- Decarbonization filtration of liquids
- Filtration of high-temperature and high-pressure liquids and gases
