JEE Series Ultra Slim LED Exit Sign

Request a Quote

Website: http://ft-emergencylight.com/2-1-8-ultra-slim-led-exit-sign.html

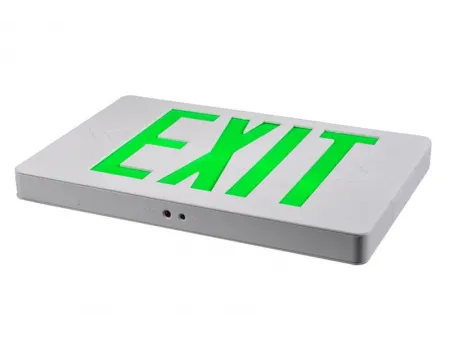

Ultra-slim 6-inch LED exit sign from the JEE Series, UL certified, available with red or green lettering.
Made with flame-retardant ABS housing compliant with UL 94V-0 standards.
Designed for easy installation with a universal junction box mounting pattern.
Features high-visibility 6-inch characters, offered in single-sided or double-sided configurations.
Equipped with removable directional arrows for flexible placement and clear egress indication.
Operates on a wide input voltage range of 120V-277VAC, suitable for various building standards.
Uses ultra-bright red or green LEDs for consistent visibility in emergency situations.
Integrated 1.2V 1000mAh Ni-MH rechargeable battery provides at least 90 minutes of backup lighting during power outages.

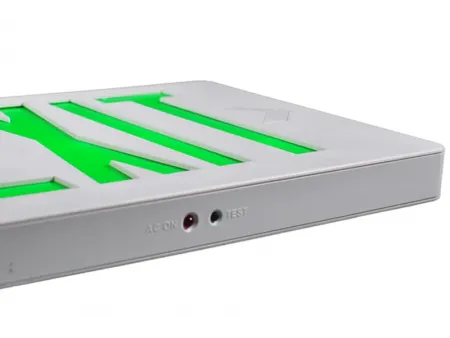

Fully recharges within 24 hours and includes a test switch with charge indicator for routine checks.
Designed for indoor use in damp locations, with an optimal operating temperature range of 0-40°C.

Specifications

Model	JLEED2GWEM/JLEED2RWEM
Color	White/Green or Red EXIT Letter
Material	ABS
Voltage	120 - 277 Volts
Battery	1.2V 1000mAh Ni-MH
Wattage	1.6W
Type of Bulb	LED
Emergency Time	90mins
Mounting	Wall, side and top mounting
Certifications	UL&cUL, CEC, DOE, FCC, ROHS
Weather Rating	Listed for damp location
Product Weight	1.76lbs/0.8kgs
Product Size	30.4×2.6×19.3cm
Ordering and Packing Information
MOQ	1000pcs
Lead Time	35 days
Sample Delivery Time	3~10 days
Packing	White box
Carton Size (L×W×H)	43×32.7×19cm/8pcs
Carton CBM	0.027m³
Quantity per Carton	8pcs
Gross Weight	6.5kgs/ctn
Net Weight	5.5kgs/ctn
Container Loading Quantity	1×20'	1×40'	1×40' HQ
	8148pcs	17037pcs	19852pcs
