3000 Marine Engine(810KW-1200KW)
Request a Quote
Description of 3000 Marine Engine
- Proven reliability, longer service life
- Economical operation, reduced downtime
- Overall dimensions: 2969 mm ×1907 mm×2206 mm
- Net weight: 9300 kg
- Rated power: 810~1200 KW
Applications
This propulsion engine is ideal for transport ships and engineering vehicles, such as dredger
Click Here to

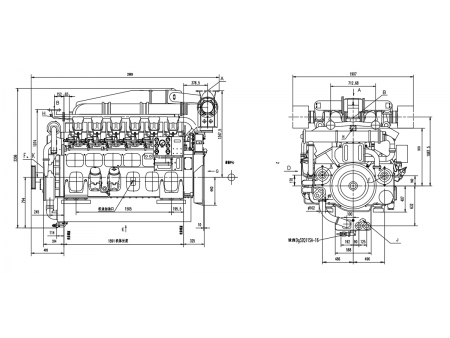

The project drawing of exterior view and interface size
Technical Specification of 3000 Marine Diesel Engine
| Model | Rated power (kW) | Rated rpm (r/min) | Fuel consumption (g/kW.h) | Oil consumption (g/kW.h) | Overall dimensions (mm) | Net weight (kg) |
| A12V190ZLC | 1200 | 1500 | ≤205 | ≤1.0 | 2969×1907×2206 | 9300 |
| A12V190ZLC1 | 1200 | 1450 | ≤205 | ≤1.0 | 2969×1907×2206 | 9300 |
| A12V190ZLC-1 | 900 | 1200 | ≤205 | ≤1.0 | 2969×1907×2206 | 9300 |
| A12V190ZLC-2 | 810 | 1000 | ≤205 | ≤1.0 | 2969×1907×2206 | 9300 |
CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
