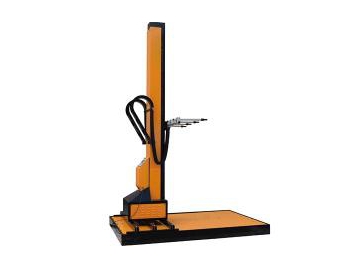

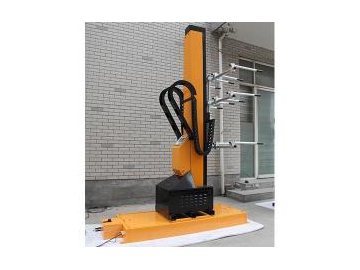

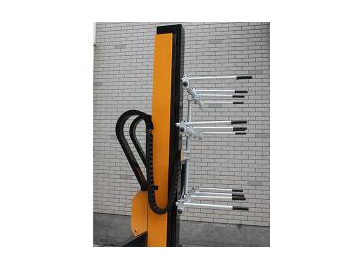

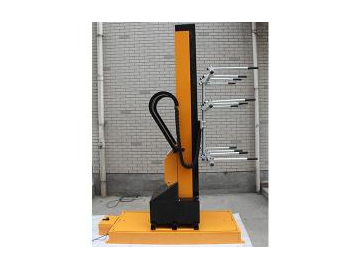

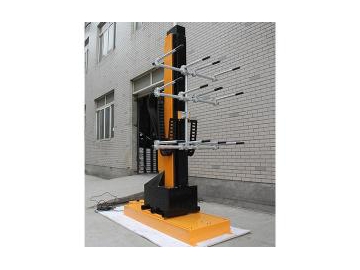

Powder Coating Reciprocator Painting Robot COLO-2300D
COLO-2300 powder coating reciprocator with 2 axis is an advanced coating system, not only supports to vertically move at Z-axis, but also move in and out of the booth at X-axis to adapt to the part width, ideal for coating complex shaped parts, and makes it easy to clean booth and spray guns.
Features
1. Precise speed, stroke and other parameters could be set on PLC controller
2. Fore-and-aft moving speed in X-axis and stroke in Z-axis both can be adjusted as required.
3. Allows to create and store 20 individual programs for different coating applications.
4. Extremely smooth & accurate running through high-precision and wear-resisting metal chain transmission.
5. Could be equipped with 2-24 pcs spray guns for powder coating or liquid painting.
| Model | COLO-2300D |
| Power supply | AC 220V/110V 50-60Hz |
| Motor power | 1.1 kw |
| Speed | 0-0.8m/s (0-50m/min) |
| Acceleration | 1m/s |
| Max. loading capacity | 25 kg |
| Controller | Digital |
| Motor | Frequency adjustable |
| Stroke | 1.5m/2m/2.5m |
| Qty. of spray gun | 2-24 pcs |
