Automatic Reciprocator COLO-2100D
Request a Quote
This auto coating machine has different speeds in different places, for example, at the top, the speed is A; and when it comes down, the speed is B, it is suitable for the complex workpieces.

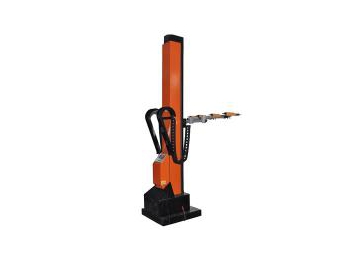

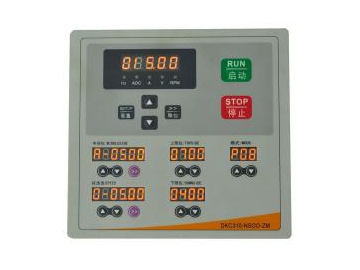

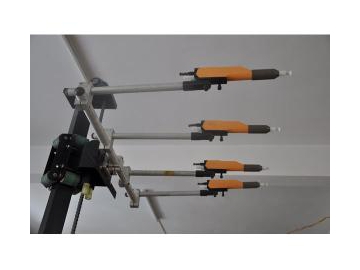

This COLO-2100D automatic reciprocator makes use of the digital display in signal mode. It is able to move in the scope of 0.3m to 2.5m on the basis of work pieces. Installed with 8 storable programs. Working at variable speed in different strokes, the product is adequate to address complicated coating on the work piece. It is endowed with high load capacity and stability while running. The reciprocator can also be used in liquid coating line or powder coating line.
Technical Specifications| Max. Load capacity of lifting rod | 25kg (8 guns) |
| Speed range | 0-40m/min (adjustable) |
| Input voltage | AC220V/110V, 50-60Hz, 5A |
| Rated power of motor | 0.75kw |
| Standard stroke | 2000mm (1500/1800/2500mm) |
| Protective function | Up-down limit setting, rubber cushion |
| Delay at arbitrary point | 0-5sec(optional) |
Related Names
Variable Speed Reciprocating Device | Metal Product Painting Unit
