Automatic Bulk Weighing System Manufacturer

Automatic Bulk Weighing System

Request a Quote

View All: http://autopacking-en.com/1-automatic-bulk-weighing-system.html

Max weighing speed up to 2000 bags/hour

Automatic Bulk Weighing Solutions

Bulk weigher for accurate dosing and weighing of free-flowing bulk granular (powdery) materials

The automatic bulk weighing system is designed for accurate dosing and weighing of free-flowing bulk granular (powdery) materials, providing precise electronic weighing of materials for packaging operations. This system is ideal for a wide range of bulk granular (powdery) materials, including granular materials, powders, lumps, strips, and flakes, making it highly versatile for various industries.

Depending on the characteristics of the bulk materials, the bulk weigher offers several feeding options, such as gravity feeding, vibratory feeding, and spiral feeding, ensuring flexibility and accuracy for different material types.

Weighing speed: up to 2000 bag/hour (20-50kg bag), 10-50 bag/hour (500-1000kg bag)
Weighing accuracy: ±0.1% (20-50kg bag), ±0.05 to 0.1% (500-1000kg bag)

Applications

The automatic bulk weighing system is ideal for packaging and weighing a variety of materials, including granular, powder, lump, strip, and flake materials. It is widely used in industries such as petrochemical, chemical, fertilizer, animal feed, and additives, helping companies achieve accurate, high-speed packaging while reducing labor costs.

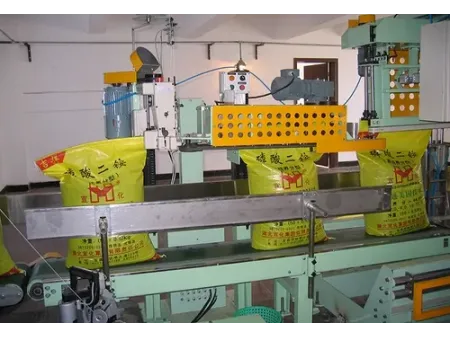

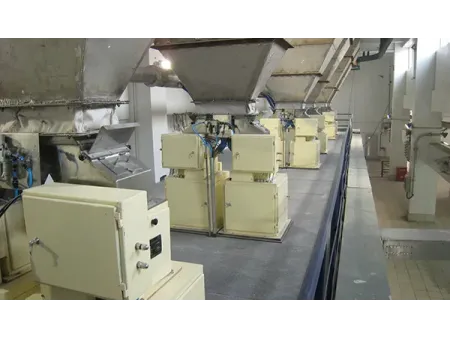

Electronic bulk weighing scale with servo control for soda ash (40kgs per bag)

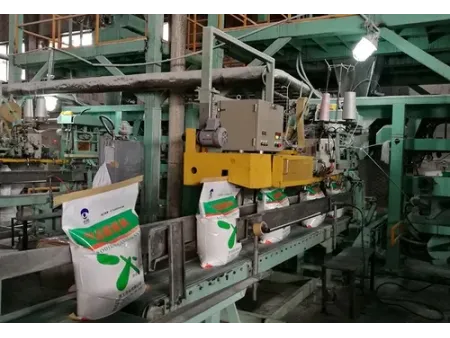

Electronic bulk weighing scale for bulk urea (40kgs per bag)

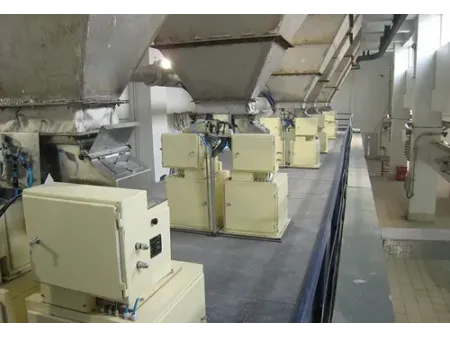

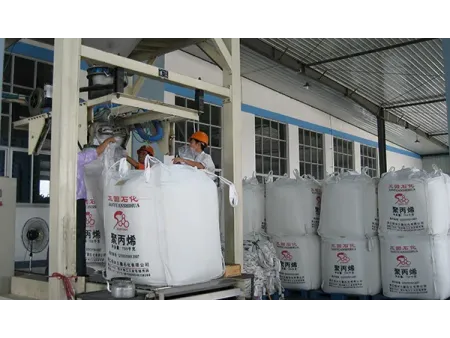

Electronic bulk weighing scale for PP granules (1000kgs per bag)

Electronic bulk weighing scale for laundry additives (1000kgs per bag)

Customization Options

Selection of feeding methods (gravity, vibratory, spiral) based on material flow characteristics
Design of weighing hoppers according to material bulk density and weighing requirements
Choice of single or dual scale configurations, and gross or net weight systems, depending on output, weighing accuracy, and speed
304 or 316L stainless steel construction for parts in contact with materials (he choice of material depends on the characteristics of the bulk product)

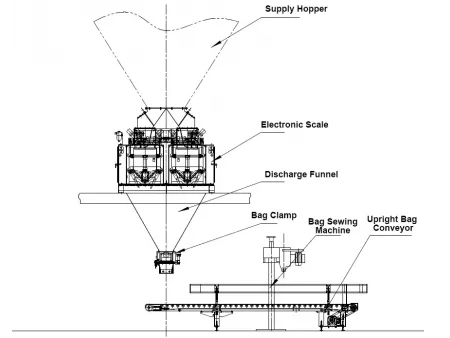

Machine Structure and Key Components

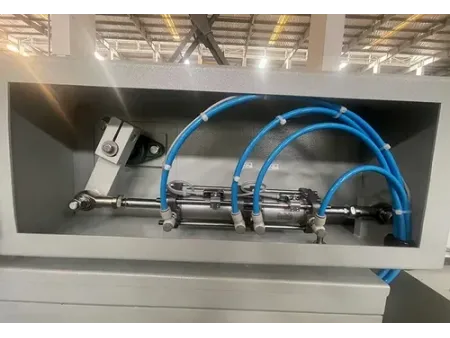

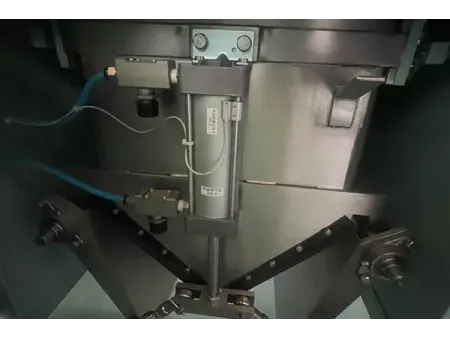

Our automated weighing systems are equipped with advanced electrical components, ensuring reliable performance and long-term durability. We utilize SMC cylinders and solenoid valves from Japan for superior quality. The PLC controllers from OMRON or SIEMENS offer digital calibration capabilities, providing precise adjustments for air volume compensation and the flexibility to freely set coarse and fine feeding values. This design makes our systems incredibly user-friendly, low-maintenance, and cost-efficient, offering a hassle-free experience with minimal operational costs.

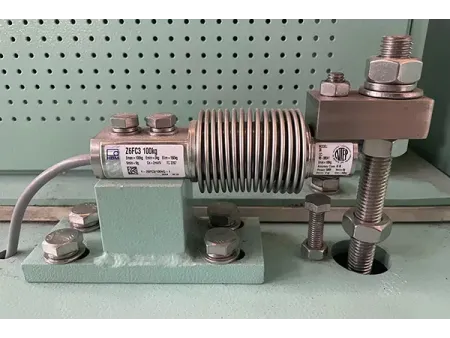

Our weighing modules are equipped with HBM stainless steel bending beam load cells from Germany, featuring strong interference resistance, fast weighing speeds, and quick response times, ensuring precise measurements with excellent stability. Our weighing modules provide consistent, reliable performance to meet a wide range of weighing needs, delivering both efficiency and dependability in every application.

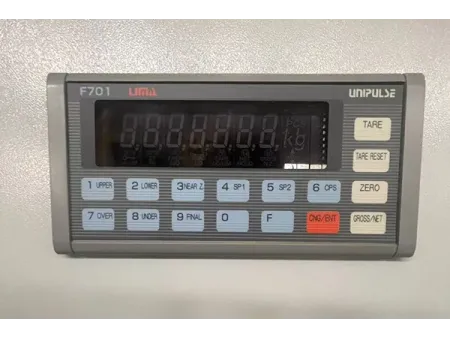

The weighing controllers are equipped with UNIPULSE F701 or F805 models (touchscreen) from Japan, known for their high interference resistance and exceptional sensitivity. With a sampling rate of up to 100 times per second and fast A/D conversion, these controllers meet the stringent demands of high-precision weighing, ensuring accurate and reliable performance for all applications.

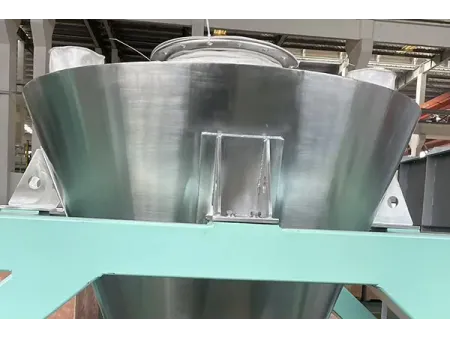

The weighing hopper features a tension rod structure, which effectively reduces vibrations, thereby improving weighing accuracy. Additionally, the discharge door is designed with a cone-shaped opening, allowing for faster material discharge and enhanced operational efficiency.

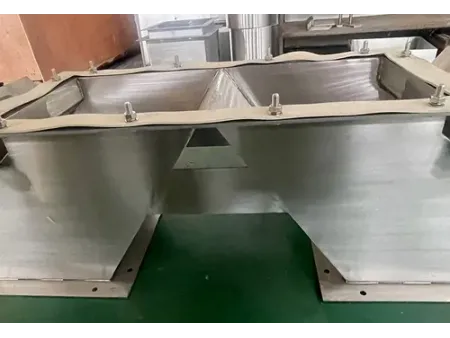

The components in direct contact with materials are made from 304 stainless steel, and are finished with 150# abrasive polishing to prevent material buildup and ensure smooth, efficient operation.

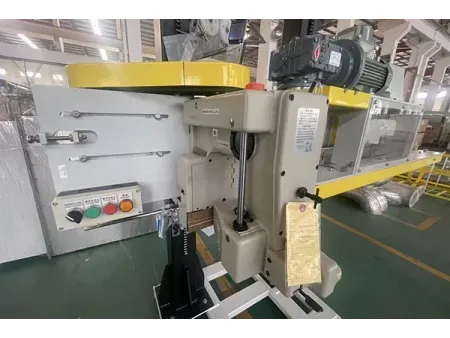

The bag sewing machine is from the renowned brand Newlong in Japan, known for its high-speed stitching. It features a pneumatic cutting system for paper tape/cord and is compatible with a variety of packaging bag materials, offering versatility and efficiency in the packaging process.

Optional Configurations

The automatic bulk weighing system can be customized with additional equipment based on customer requirements, including conveyors, bag sewing machines, and heat-sealing machines, providing a tailored solution to meet specific operational needs.

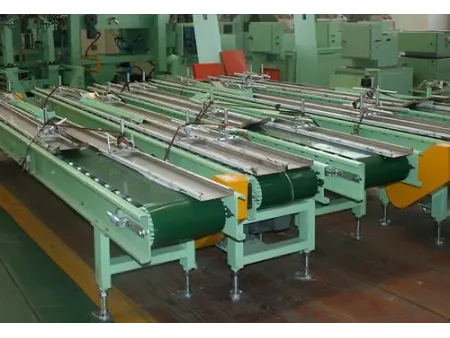

Belt Conveyor

Bag Sewing Machine

Heat Sealing Machine

Here are some of automatic weighing systems we custom made

Package weight: 25kgs per bag

Bulk weighing scale used in automatic packaging line
Configured with: fully automatic bagging machine, heat sealing machine, belt conveyor, bag handling conveyor
Package weight: 25kgs per bag

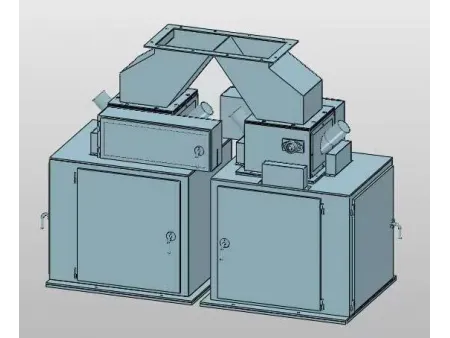

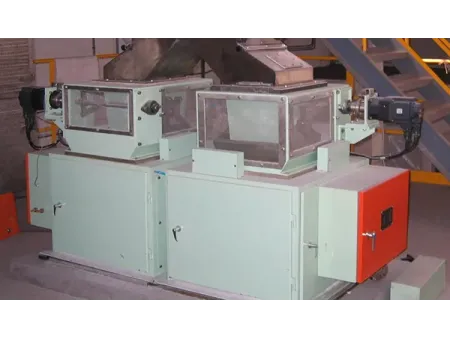

Dual scale net weigher
(gravity feed weigher with two weigh hoppers)

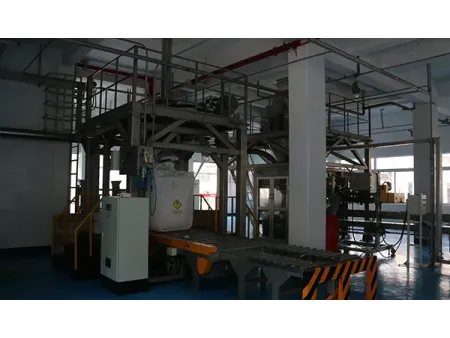

Package weight: 1000kgs per bag

Gross weigher
(gravity feed weigher for big bags)
Package weight: 25kgs per bag

Gross weigher
(vibratory feed weigher)
Package weight: 25kgs per bag

Bulk weighing scale used in Riverina Company's automatic animal feed packaging line
Configured with: fully automatic bagging machine, heat sealing machine, belt conveyor, bag handling conveyor
