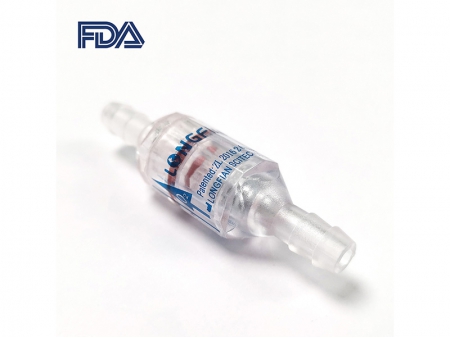

Oxygen Firebreak Valve (Cannula Valve)

Oxygen Firebreak Valve (Cannula Valve)
Oxygen Firebreak Valve (Cannula Valve)
Oxygen Firebreak Valve (Cannula Valve)
Request a Quote

With firebreak valve, you don’t have to worry about the oxygen leak anymore. It can be used with all types of oxygen sources and designed to protect against oxygen tubing fires and keep patients safe.

Technical Parameters
Resistance to Flow 2 L/min(1 kPa)
5 L/min(2 kPa)
15 L/min(16 kPa)
Flow Rate 0.3 to 25 L/min
Max Operating Pressure 400 kPa
Max Internal Leakage Following Activation No leakage
Max External Leakage Following Activation No leakage
Operating Temperature 0 to 50 °C (32 to 122 °F)
Transit & Storage Temperature Range -20 to 60 °C (-4 to 140 °F)
Gas Type Oxygen / oxygen-enriched air
Features
  • Bi-directional design;
  • Reduced size making it less noticeable in the supply tubing;
  • Designed to protect against oxygen tubing fires;
  • Operate from a thermal fuse designed to stop the flow of gas in the event that the downstream oxygen tubing is ignited;
  • Keeps patients safe;
  • Works with all types of oxygen sources, tank, oxygen concentrator and wall connection;
  • Kit designed for 1 oxygen source;
  • Does NOT restrict oxygen flow unless it senses heat/fire;
