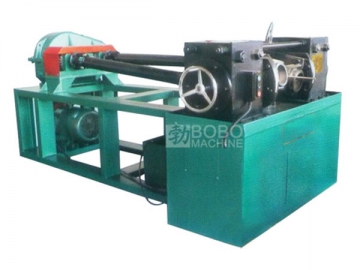

Thru-Feed Thread Rolling Machine
Request a Quote
View All: http://foam-spraying.com
Thru-feed thread rolling machine is suitable for threading bars with unlimited length according to the customer requirements. The threading speed is about 3-5m/min. We also provide roll feeding machine for the long bars, which makes easily and conveniently to carry the bolts. The material of rollers is Cr12MnVo, 1.2379 steel and DR steel.
Main Technical Data
| Mold | | | | | | | |
| Max. roll pressure | 80KN | 150KN | 180KN | 200KN | 280KN | 500KN | 650KN |
| Threading diameter | Φ5-Φ30mm | Φ5-Φ42mm | Φ5-Φ50mm | Φ5-Φ60mm | Φ5-Φ90mm | Φ5-Φ100mm | Φ5-Φ120mm |
| Threading pitch | 1-2mm | 1-3mm | 1-3.5mm | 1-4mm | 1-6mm | 1-10mm | 1-15mm |
| Roller diameter | Φ120-Φ170mm | Φ120-Φ240mm | Φ120-Φ170mm | Φ150-Φ270mm | Φ150-Φ300mm | Φ150-Φ300mm | Φ300-Φ410mm |
| Spindle speed | 34-72 r/min | 36-78 r/min | 36-78 r/min | 16-90 r/min | 16-90 r/min | 16-90 r/min | 16-90 r/min |
| Active power | 4kw-4 | 4kw-4 | 5.5kw | 11kw | 15kw | 18kw | 22kw |
| Hydraulic power | 2.2kw | 2.2kw | 2.2kw | 4kw | 5.5kw | 6.5kw | 7.5kw |
| Cooling power | 90w | 100w | 125w | 125w | 125w | 125w | 125w |
| Threading length | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
| Unit weight | 1100±50kg | 1400±50kg | 1700±50kg | 2300±50kg | 3000±50kg | 5000±50kg | 6100±50kg |
| Dimensions | 1480*1500*1050mm | 1500*1380*1140mm | 1600*1550*1445mm | 1700*1850*1550mm | 2450*1780*1670mm | 2450*2000*2000mm | 2300*2540*2700mm |
