Two-Die Thread Rolling Machine

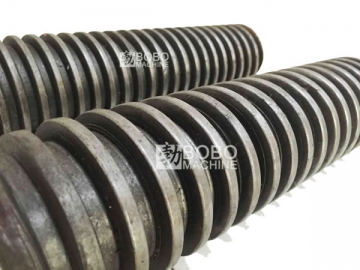

The two-die thread rolling machine is used to form the straight thread, screw thread, and inclined thread on solid bar and solid rod. It can be customized according to the nonstandard screw thread. The thread rolling machine is used to make the bar or rod with diameter of 5-30mm, screw pitch of 1-2mm, and the thread rolling length is unlimited as you like. With hydraulic drive system, the 2 die cylindrical machine can work strongly and smoothly, the hydraulic pressure is adjustable. We will supply necessary spare parts free of charge at least one year. The two-die thread rolling machine is easy to operate, we will supply the video and operation manual, we also can provide free training service. The wooden package is optional to protect the cylindrical thread rolling machine well during shipment.
Main Technical Data
| Model | |||||||
| Max. roll pressure | 80KN | 150KN | 180KN | 200KN | 280KN | 500KN | 650KN |
| Threading diameter | Φ5-Φ30mm | Φ5-Φ42mm | Φ5-Φ50mm | Φ5-Φ60mm | Φ5-Φ90mm | Φ5-Φ100mm | Φ5-Φ120mm |
| Threading pitch | 1-2mm | 1-3mm | 1-3.5mm | 1-4mm | 1-6mm | 1-10mm | 1-15mm |
| Roller diameter | Φ120-Φ170mm | Φ120-Φ240mm | Φ120-Φ170mm | Φ150-Φ270mm | Φ150-Φ300mm | Φ150-Φ300mm | Φ300-Φ410mm |
| Spindle speed | 34-72 r/min | 36-78 r/min | 36-78 r/min | 16-90 r/min | 16-90 r/min | 16-90 r/min | 16-90 r/min |
| Active power | 4kw | 4kw | 5.5kw | 11kw | 15kw | 18kw | 22kw |
| Hydraulic power | 2.2kw | 2.2kw | 2.2kw | 4kw | 5.5kw | 6.5kw | 7.5kw |
| Cooling power | 90w | 100w | 100w | 125w | 125w | 125w | 125w |
| Threading length | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
| Unit weight | 1100±50kg | 1400±50kg | 1700±50kg | 2300±50kg | 3000±50kg | 5000±50kg | 6100±50kg |
| Dimensions | 1480*1500*1050mm | 1500*1380*1140mm | 1600*1550*1445mm | 1700*1850*1550mm | 2450*1780*1670mm | 2450*2000*2000mm | 2300*2540*2700mm |
