PT220PT230 Transmission Control Valve

PT220PT230  Transmission Control Valve
PT220PT230  Transmission Control Valve
PT220PT230  Transmission Control Valve
PT220PT230  Transmission Control Valve
Request a Quote
  • The proportional valves are designed to output specific pressure curves tailored to the clutch parameters, enabling precise control over transmission operation
  • Depending on the combination of proportional valves, the system can accommodate different transmission setups, including 4-speed forward and reverse or 6-speed forward and reverse gear combinations
  • Electromagnetic proportional switches and voltage options are available, allowing for further customization to meet specific operational requirements
  • Designed to be fully compatible with the overall system, meeting a wide range of customer needs and ensuring seamless integration into existing setups
Applications
  • Tractor gearbox
  • Construction machinery gearbox
Parameters
Rated pressure (MPa) 3
Rated flow (L/min) 36
Working voltage of solenoid valve 12VCD±15%
24VCD±15%
Hydraulic oil Mineral oil (HL, HLP) in accordance with DIN 51 524
Fluid temperature range (℃) -20~100
Viscosity range (mm2/s) 10~380
Fluid cleanliness Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10
Weight (kg) 13.5

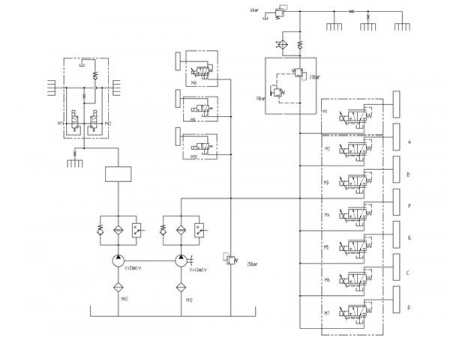

Hydraulic System Schematic Diagram

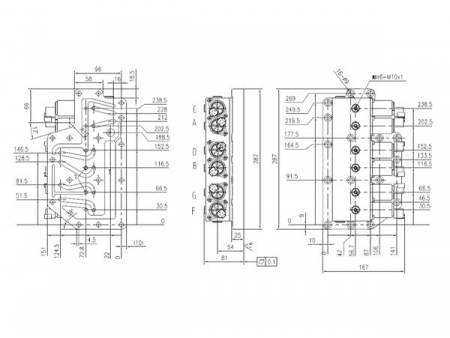

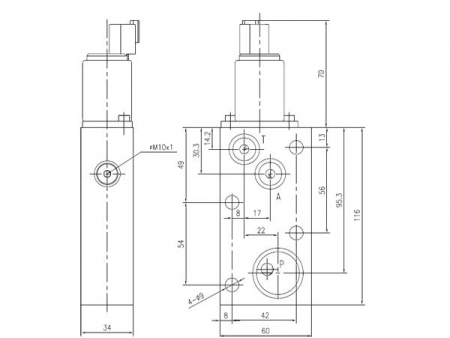

External Connection Dimensions

Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components

Annual production capacity of 250,000 sets of hydraulic components

Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
