8-Cylinder Marine Engine (500~720kW)

8-Cylinder Marine Engine (500~720kW)
Request a Quote
HIGH QUALITY AND EFFICIENCY WIDE POWER RANGE
Features of 8-Cylinder Marine Engine
  • Legendary fuel economy, robust construction
  • Renowned reliability, improved performance
  • Rated power: 500~720KW
  • Oil consumption: ≤1.2g/kW.h
  • Fuel consumption: ≤204 g/kW.h;
Applications
  • This propulsion engine is mainly suitable for transport ships and ocean fishing boats
  • It also can be used in container carriers, bulk carriers etc.
Click Here to

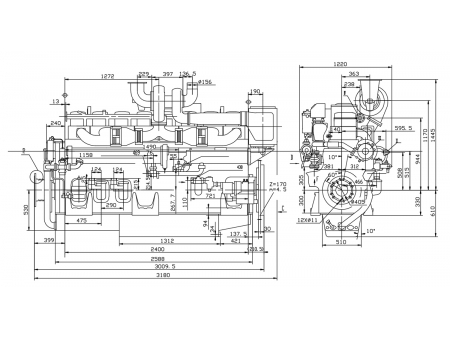

The project drawing of exterior view and interface size
Technical Specification of 8-Cylinder Diesel Engine
Model Rated power
(kW)
Rated rpm
(r/min)
Fuel consumption(g/kW.h) Oil consumption(g/kW.h) Overall dimensions
(mm)
Net weight
(kg)
8190ZLCZ-R 720 1450 ≤204 ≤1.2 3175×1220×2055 5200
8190ZLC 720 1450 ≤204 ≤1.2 3175×1220×2055 5200
8190ZLCZ-1R 600 1200 ≤202 ≤1.2 3175×1220×2055 5200
8190ZLC-1 600 1200 ≤202 ≤1.2 3175×1220×2055 5200
8190ZLCZ-2R 500 1000 ≤202 ≤1.2 3175×1220×2055 5200
8190ZLC-2 500 1000 ≤202 ≤1.2 3175×1220×2055 5200
8190ZLCZ-3R 650 1300 ≤202 ≤1.2 3175×1220×2055 5200
8190ZLC-3 650 1300 ≤202 ≤1.2 3175×1220×2055 5200

CNPC JICHAI was formed in 1920, we are a prestigious brand in China and is a global leader in internal conbustion engine and generator set manufacturing. Our power solutions are designed to improve your performance and productivity.
