Technical Parameters of Aging Oven
Model SSHH-195 SSHH-1000
Temperature range RT 60℃ to 500℃
Internal size (mm) W600×H650×D500 W1000×H1000×D1000
Power supply 3-phase 380V 50HZ 25KW 3-phase 380V 50HZ 40KW
Temperature controller 1. Micro-computer controller. 2. LED display 3. Auto Turning PID Control. 4. Programmable input. 5. Alarm and timer. 6. The unit can be℃ or °F. 7. Switch power AC 85-265V. 8. Parameter precision can be 1℃ or 0.1℃.
Temperature fluctuation ±0.3℃(100℃)
Temperature deviation RT-300℃ ≤±3.0℃(300℃ to 500℃≤±5.0℃)
Temperature sensor T-shaped thermocouples (stainless steel)
Materials Interior: SUS#304 stainless steel. The interior part has no welded structure, thus eliminating the influence of high-temperature creep. Exterior: plastic covered. The tapered structure avoids deformation under high temperature.
Insulation materials Glass wool air, separation boards
Heat-up time RT-400℃≤20min (15min for the second time heat-up)
Cool-down time 400℃-RT 15 ℃≤ 100min
Control method PID SSR output
Door gasket Cellucotton double-layer stainless steel plates
Accessories 6-meter long power cord, 2 fuses, recorder (optional), ampere meter, 2 racks, tricolor light
Heating equipment Heater
Advantage Continuous, reliable and safe operation

The detection system and detection method are suitable for various test chambers for different temperatures. According to the specific needs for testing, users can control the heating power to realize rapid warming. The temperature difference can also be accurately controlled. 500 aging oven is characterized by fast heating rate, small temperature difference and high detection precision.

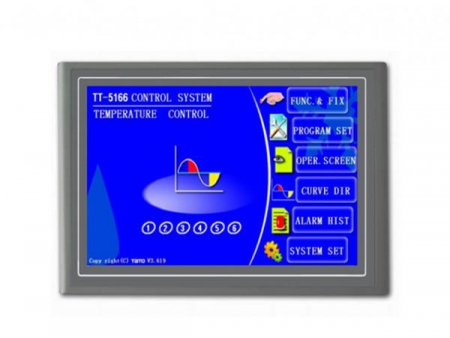

  • Simplewell controller

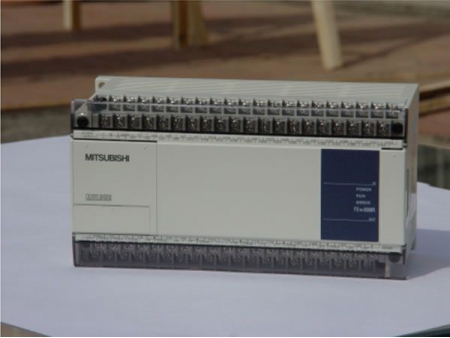

  • Mitsubishi PLC

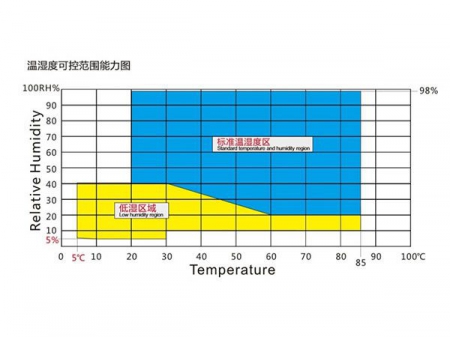

  • Temperature and humidity adjustment range
Optional Configurations

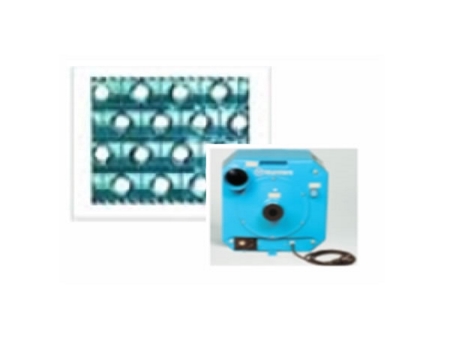

1. Rotary dehumidifier/ polymeric membrane, with a lowest temperature/ humidity content of 5℃/5 %RH.

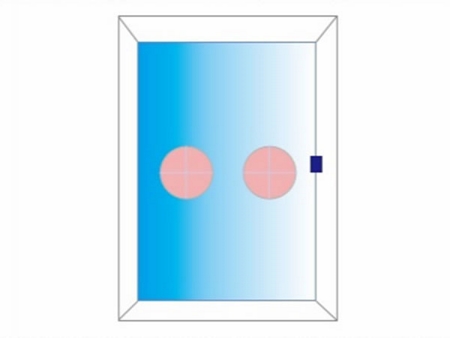

2. Built-in tempered glass door, easy to move

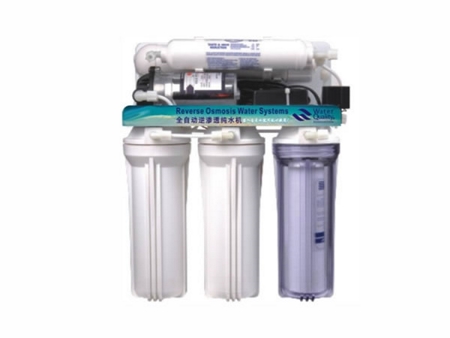

3. Water purification system, with automatic replenishment function

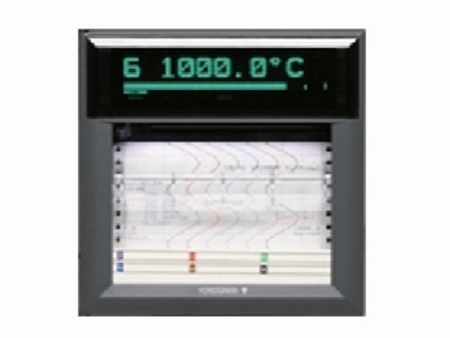

4. Recorder, save and print testing data

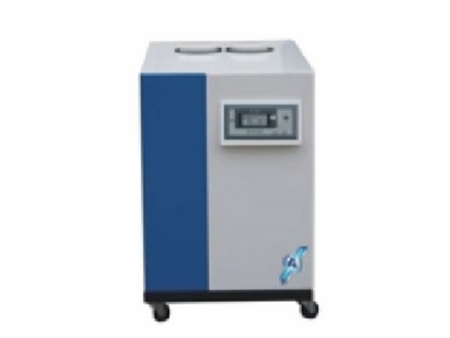

5. Ultrasonic humidifier/ high-pressure spray humidifier, providing continuous high humidity under extreme temperature

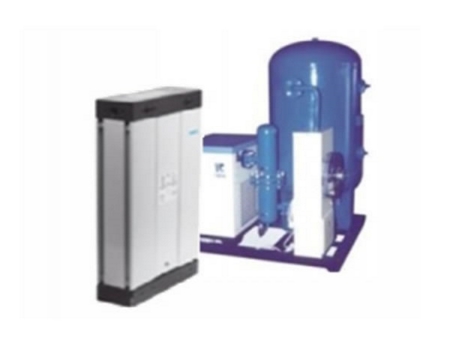

6. Dry air blow system, anti-condensation

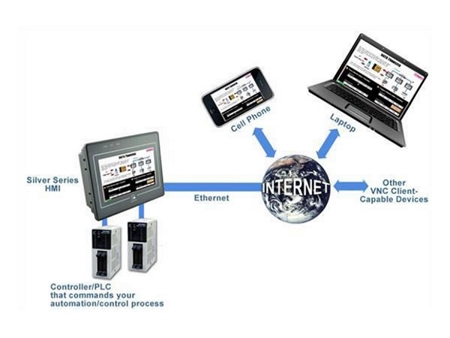

7. Remote monitoring function, cellphone and computer supportive

Cooling Equipment

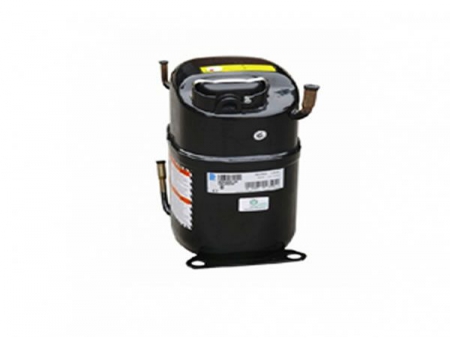

  • TECUMSEH fully hermetic compressor

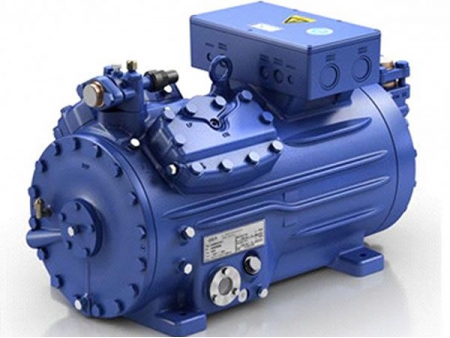

  • BOCK inverter compressor

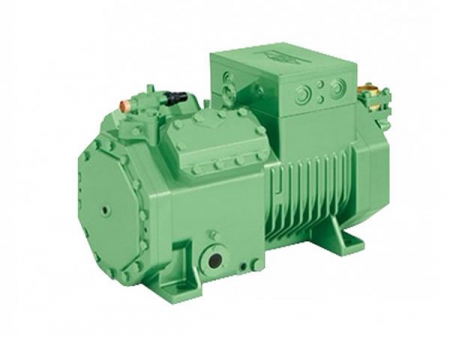

  • BITZER semi-hermetic compressor
