CNC Turret Punch Press
The CNC turret punch press possesses good performance, high efficiency, and convenient operation. It is ideal for automotive, decoration, processing, and electric power industries. With the adoption of CNC technology, this equipment enables the workpiece to be deposited accurately and quickly. It can automatically choose the tools in the turret for punching holes with different sizes, shapes, and distances. The CNC turret punch press can produce round, square, or oval holes by stepping method.

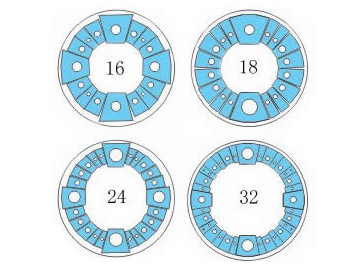

Standard Tool Magazine
| Die Station | Hole Size (mm) | Tool Station Number | |||
| 16 | 18 | 24 | 32 | ||
| A | 3-12.7 | 4 | 8 | 12 | 16 |
| B | 12.7-31.7 | 8 | 8 | 8 | 12 |
| C | 31.7-50.8 | 4 | 2(1) | 2 | 2 |
| D | 50.8-88.9 | 0 | 0(1) | 2 | 2 |
Technical Parameters
| Item | ||||
| Punching force | 250kN | 300kN | ||
| Max. punching thickness | ≤6mm | |||
| Working area | 2500×1250mm (or customized) | |||
| Max. workpiece weight | 210kg | |||
| Punching speed | 230HPM | 300HPM | ||
| Worktable moving speed | ≤60m/min | |||
| Punching accuracy | ±0.1mm | |||
| Air flow | 0.1m3/min | |||
| Air pressure | 0.5MPa | |||
| Die stations | 16 | 18 | 24 | 32 |
| Machine weight | 13T | 15T | ||
Note: Our company also can supply other CNC turret punch press with higher production capacity.
