Pure Electric Air Conditioner for New-energy Bus Manufacturer

Pure Electric Air Conditioner for New-energy Bus

Request a Quote

View All: http://auto-airconditioner.com/4-9-electric-powered-bus-ac.html

This product has been discontinued and removed from our shelves.

This DC electric powered bus air conditioner is suitable for big trolley bus, 8-12m electric train and 8-12m train with pure battery.

Technical Specifications

Model	VBDC30A	VBDC30B
Cooling capacity	309530Kcal/h (36KW)
compressor	Whole sealing and sleeping whorl
Refrigerant	R407C
Amount of refrigerant(kg)	(5.4±0.1)×2
Evaporator Air flow	6000 m³/h
Condenser Air flow	10000 m³/h
Voltage scope imported	DC340~840V	DC300~460V
Rated voltage imported	DC600V	DC388V
Auxiliary electric Power source	Reversion change of AC and DC	Reversion change of AC and DC With increasing voltage
Working electric voltage	AC380-3P-50Hz
Rated power imported	12Kw
Rated current	18.5A
Control pattern	Controlled by PLC
Control voltage	DC24V
Vehicle adaptable	8~12m Electric train with our track	8~12m Train with pure electric bottle

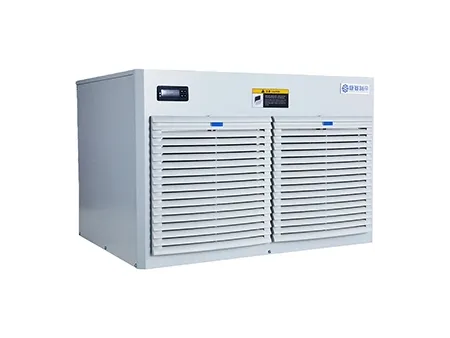

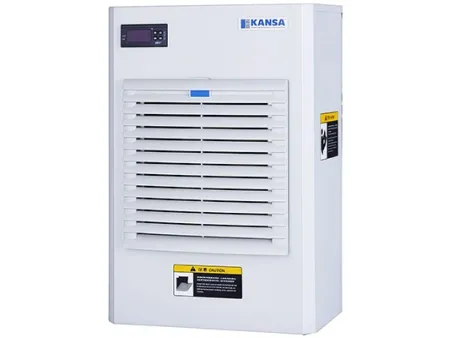

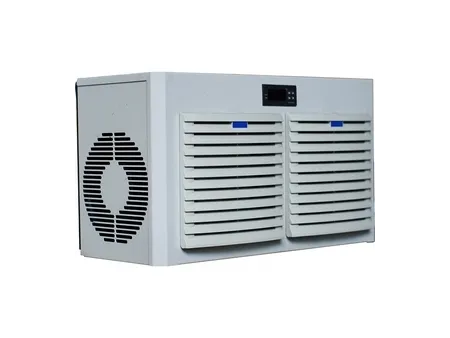

As an experienced DC electric powered bus air conditioner manufacturer and supplier in China, VehiClima Industry also offers cabinet air conditioner, air duct mount air conditioner, van refrigeration unit, battle tank air conditioner, and more.
