New Energy Vehicle Motor Stamping Press
Request a Quote
Metal stamping machinery for manufacturing new energy vehicle (NEV) drive motor laminations
Specifically designed for large-tonnage stamping of laminated cores for stator and rotor assemblies in new energy vehicle drive motors. This high-speed mechanical press handles high-strength silicon steel sheets and large-sized cores with consistent precision performance, meeting the mass production demands of new energy vehicle manufacturers for high-performance motor cores.
Samples of Stamped Parts

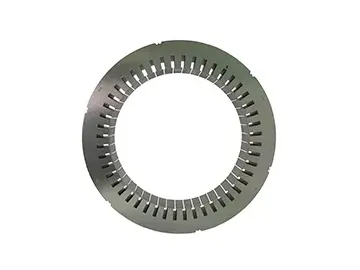

- Rotor and stator lamination stamping and forming

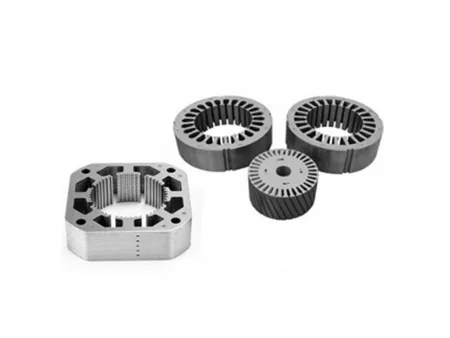

- Rotor and stator lamination stamping and forming
- Metal hardware stamping and forming
Mechanical Straight Side Press (400 ton), DDH-400ZW-3700
Technical Specifications
| Press capacity (kN) | 4000 |
| Stroke (mm) | 40 |
| Stroke speed (spm) | 80-200 |
| Shut height (mm) | 500-560 |
| Worktable size (bolster) (mm) | 3700×1200 |
| Slide area (mm) | 3700×1000 |
| Slide adjustment (mm) | 60 |
| Scrap hole size (mm) | 2700×400 |
| Motor (kW) | 90×6P |
