Request a Quote

Our new generation series prefabricated holiday lodge offers a nice blend of functionality and style, specifically tailored to meet your requirements.

Innovatively designed, our prefabricated holiday lodges come in two options - the 'Standard Quick Assembly Modules' and the 'Customized Design System'. Each option ensures not only high cost-effectiveness and rapid construction but also allows for meeting unique and specific design preferences of our valued customers.

Discover the range of sizes we offer, including 34m², 39m², 44m², 48m², 58m², and 59m², all meticulously crafted to provide a comfortable and enjoyable living experience.

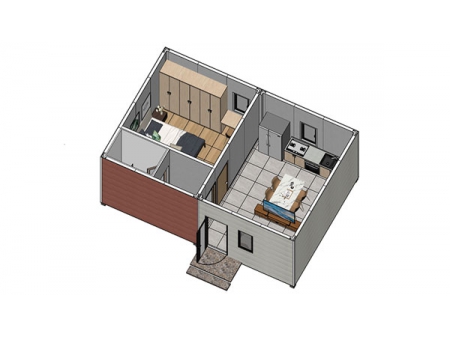

Prefab Holiday Lodge, Model 34

Total Area: 52m² (34m² living space, 10m² terrace, 8m² entrance canopy)

Layout: 1 Bedroom, 1 Bathroom, 1 Living Room, 1 Kitchen

Standard Model: 1 Bedroom Module, 1 Kitchen Module

Prefab Holiday Lodge, Model 39

Total Area: 45m² (39m² living space, 6m² entrance canopy)

Layout: 1 Bedroom, 1 Bathroom, 1 Living Room, 1 Kitchen

Standard Model: 1 Bedroom Module, 1 Kitchen Module

Prefab Holiday Lodge, Model 44

Total Area: 62m² (44m² living space, 10m² terrace, 8m² entrance canopy)

Layout: 2 Bedrooms (1 master bedroom and 1 guest bedroom), 1 Bathroom, 1 Living Room, 1 Kitchen

Standard Model: 2 Bedroom Modules (1 master bedroom and 1 guest bedroom), 1 Kitchen Module

Prefab Holiday Lodge, Model 48

Total Area: 61m² (48m² living space, 13m² terrace)

Layout: 1 Bedroom, 1 Bathroom, 1 Living Room, 1 Kitchen

Standard Model: 1 Bedroom Module, 1 Kitchen Module

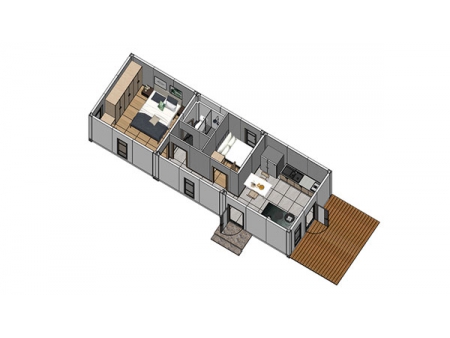

Prefab Holiday Lodge, Model 58

Total Area: 60m² (58m² living space, 2m² entrance canopy)

Layout: 2 Bedrooms, 2 Bathrooms, 1 Living Room, 1 Kitchen

Standard Model: 2 Bedroom Modules, 1 Kitchen Module

Prefab Holiday Lodge, Model 59

Total Area: 72m² (59m² living space, 13m² terrace)

Layout: 2 Bedrooms, 2 Bathrooms, 1 Living Room, 1 Kitchen

Standard Model: 2 Bedroom Modules, 1 Kitchen Module

Foundation System

Hot-dip galvanized ground screws (standard)

Structural System
  • Framework: 50*160*2.3mm galvanized beams (standard for bottom and top beams)
  • Columns: 160*160*2.3mm galvanized beams (standard)
  • Column heads: 160*160mm, 4.5mm wall thickness (standard)
  • Flooring: PVC polyurethane composite glazed tiles, total thickness 50mm (standard)
  • Wall Panels: color-coated steel sheet EPS (silicate rock board) color-coated steel sheet, total thickness 100mm (standard)
Internal Dimensions
  • Bathroom model 18: 1.8m (length)*1.2m (width)*2.3m (height)
  • Bathroom model 24: 2.4m (length)*1.6m (width)*2.3m (height)
  • Cupboard: 0.6m (length)*2.4m (width)*0.85m (height)
  • Staircase: step width 0.9m, 18 steps, total height 3.32m
Decorative System
  • Floor décor: 600*600 glazed tiles (standard)
  • Wall décor: wall cloth (standard)
  • Ceiling décor: PVC plates (standard)
  • Doors:
  • Interior doors: wood veneer doors
  • Exterior doors: aluminum alloy composite doors (standard)
  • Windows: 600*2100mm aluminum alloy window frame, 6 12 6 low-E hollow glass (standard)
  • Plumbing and electrical fittings: included in the standard package
Architectural Design
  • Exterior wall décor: insulated metal carved panels
  • Wall and roof panels: color-coated steel sheet light steel keel EPS (silicate rock board), total thickness 100mm
  • Roof edge and decorative trim: metal decorative trim
  • Terrace frame: 100*100*2.5 galvanized steel pipe
  • Terrace flooring: wood-plastic outdoor flooring
  • Sliding glass doors: aluminum alloy frame, 6 12 6 low-E hollow glass
