Destoning Machine-Reliable extraction of heavy impurities

The destoner is designed to separate heavy impurities such as stones and metallic particles from coffee, grain, pulses, and more. It is widely used in food processing and milling industries.

Features
  • Structure design
    The destoner features a fully enclosed structure to avoid dust pollution as well as a small size. The double layer design ensures a reliable extraction of all heavy impurities.
  • Vibration motor
    It is driven by a vibration motor which features a smooth and stable operation.
  • Air pressure device
    The air pressure and air volume is adjustable. It is equipped with a negative pressure monitor.
  • Wide range of applications
    It is suitable for elimination of heavy impurities from grain, coffee, pulse, and other food items.
Specifications
Model SLJ-TQSX85B SLJ-TQSX200 SLJ-TQSX160*2 SYX-TQSX150*2
Capacity (T/H) 2.5-4 14-16 12-15 12
Power (kW) 0.75 2.2 2*0.37 2*0.3
Dedusting Connection (M³/Min) 53-56 163-173 166-208 150-200
Weight (Kg) 340 960 800 710
Dimensions (L*W*H)(mm) 1550*1040*2370 1650*2220*2410 1950*1550*2070 1640*1837*1852
Working Principle

The destoner uses a pressurized airflow to lift the light material, ensuring heavy material sinks to the bottom and is expelled from the stone outlet. The light materials will be fluidized by the air system and move down to the outlet through a gravitational pull.

Core Components

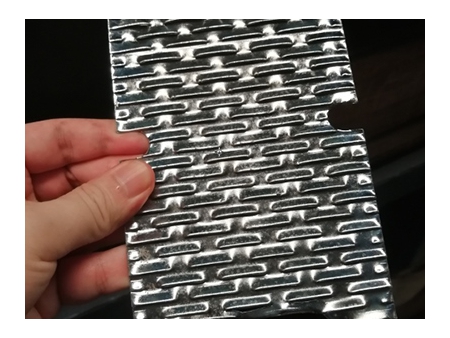

  • Sieve Plate

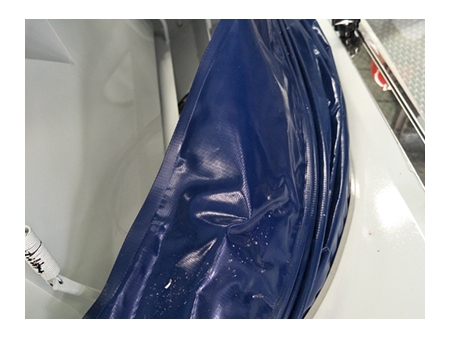

  • Dust collector filter bag

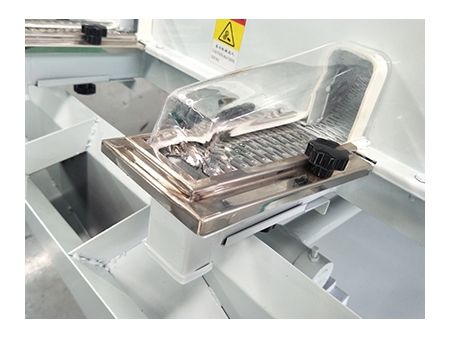

  • Outlet
The impurities it can remove include
  • Gravels
  • Stones

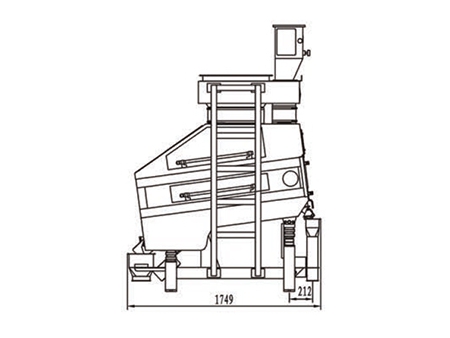

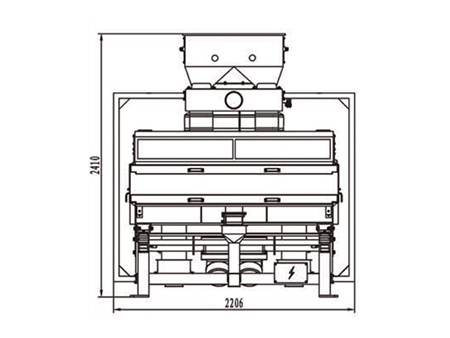

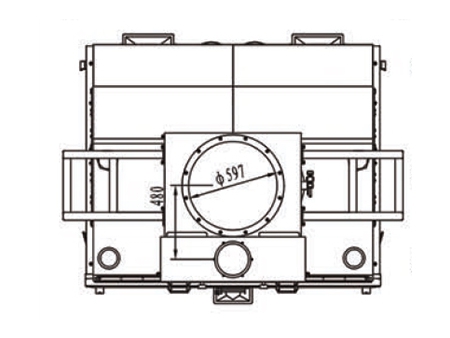

Structure Diagram
