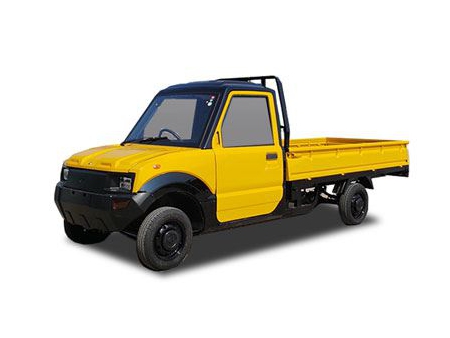

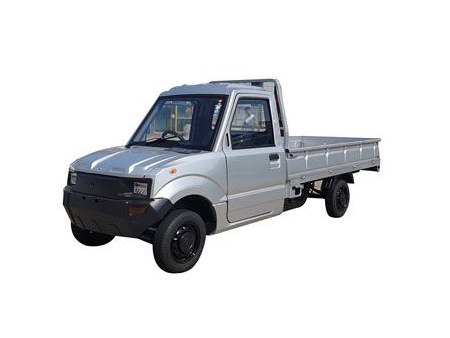

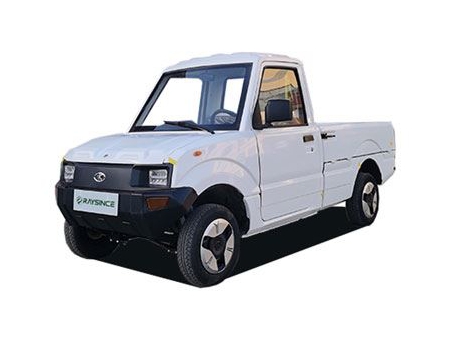

Electric Pickup Truck
This electric pickup truck is an all-electric vehicle with a sleek contour. The finely-decorated cab, broad vision, and complete configurations are dedicated to providing the pilot with pleasant driving experience.
The high-strength riveted vehicle chassis is made using the integral bridge of the light-duty truck style, providing an excellent loading capacity for different delivery needs. Equipped with a combined main and auxiliary progressive multi-leaf composite steel spring rear suspension system, this electric car handles all types of roads with ease.
The vehicle body is made of sheet metal with the key parts reinforced with steel plates for added durability and reliability. This electric pickup truck can be extended to 4,000 and 4,200mm in length or be connected with a cargo box for additional storage space.
| Electrical System | |||
| Controller | 60V Intelligent Controller | Motor | 3,000W Alternator |
| Storage Battery | 12V*5PCS,100AH | Traveling Range | 90-100km |
| Battery charger | Vehicle-mounted Intelligent Charger | Charging Time | 8-10 hours |
| Charger Voltage | Single phase, 220V | GW | 700kg |
| Technical Data | |||
| Overall Size | 3,550*1,450*1,580mm (L*W*H) | Body & Chassis Material | Metal |
| Carriage Box Size | 1,650*1,320*300mm (L*W*H) | Loading Capacity | 800-1,200 kg |
| Speed Range | 40-45km/h | Braking Length | ≤ 7 Meters |
| Climbing Capacity | 25-30% | Min. Turning Radius | 5900 MM |
| Wheel Base | 2,315 MM | Front and Rear Tracks | 1,360 MM |
| Car Body System | |||
| Seat Material | Imitation leather (PU) | ||
| Instrument Panel | Combined Instrument (front/back signal, light, trumpet, dump energy, current speed display) | ||
| Lighting System | Combined type front light and back light, braking light, front/back turning light | ||
| Switch System | Light switch, main power switch, electric horn, wiper switch. | ||
| Entertainment System | Digital LCD panel, MP3 Player, USB Port, Backup Camera | ||
| Car Body Painting | Color can be customized. | ||
| Air Conditioner | Including A/C | ||
| Chassis System | |||
| Drive System | Rear-drive motor (Controller adjusted automatically) | ||
| Steering System | Automatic adjustment rack and pinion direction | ||
| Braking System | Four wheel hydraulic brake double circuit hydraulic brake parking brake device brake assist | ||
| Tire | 145-R12, Steel wheel hub, Air tire | ||
| Front Axle & Suspension | Integral front bridge suspension | ||
- Open Cargo Box

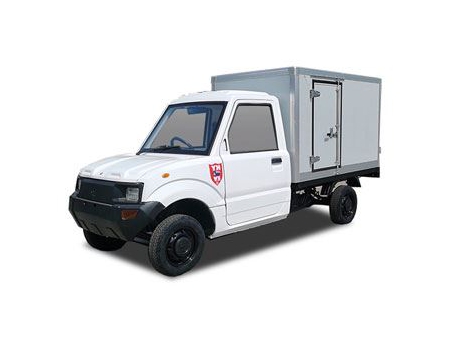

- Cargo Box
- Combination Headlight
- Combination Tail Lamp
- Large Space Cab
- Rotary Gear Switch
- Smart Display Panel
- Multimedia Touch Screen
- Accelerator and Brake
