SSR-A Slitting Machine
Request a Quote
As a type of commonly used converting equipment, a slitter is a primary machine used in the conversion of paper, film, and foil material. Designed to convert a wide roll of material into several thinner rolls, the slitting machine starts by unwinding a master roll, continues by slitting the unwound material into various widths, and finally completes the process by rewinding the slit material onto cores of various widths. The slitter comes with many configurations according to the customer needs.
- Max slitting speed: 500mpm
- Max web width: 1050/1300/1500mm
- Max unwinding diameter: 800mm
- Max rewinding diameter: 600mm
- Min slitting width: 50mm
Features
- Suitable substrates: Plastics films, metalized films, papers, aluminum foils, etc.

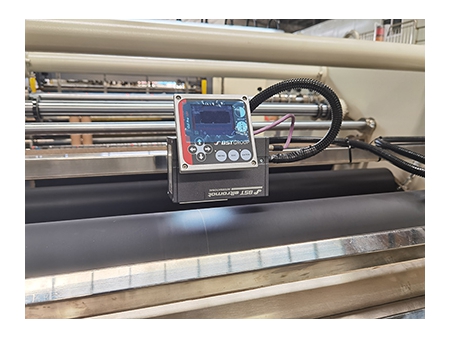

- Automatic tension control;

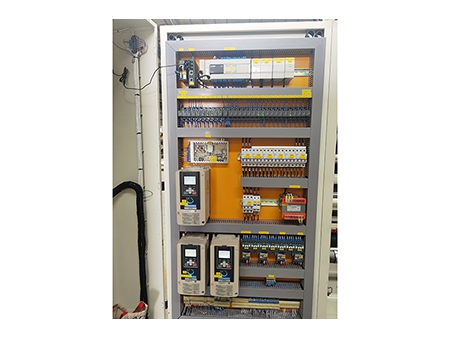

- PLC control with touch screen;
- Shaftless unwinder with electric lifting system;
- Laser positioning system for paper core;
- Stand for unloading the slit reels.
