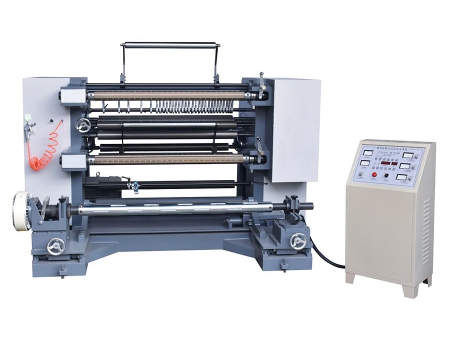

Slitting Rewinding Machine
Request a Quote
The slitting rewinding machine adopts an automatic photoelectric correction system when unwinding, so that irregular materials can be slit normally. The machine is suitable for the slitting of various roll materials such as BOPP, PET, CPP, CPE, PVC and paper.
Finished products- Slitting rewinding machine adopts frequency control to keep running smoothly in the acceleration process.
- It is equipped with functions of meter counting and alarming. For example, it will alarm when the machine runs out of material or when a fault is detected.
- It adopts an automatic photoelectric correction system when unwinding, so that irregular materials can be slit normally.
- This machine adopts manual feeding. With 3 inch air shaft, it can be suitable for the slitting of various roll materials such as PET, CPP, CPE, PVC and paper.
| Min Width of Slit | 12mm |
| Max Width of Slit | 600mm |
| Speed | 20-200m/min |
| Thickness | 0.02-0.18mm |
| Power Consumption | 11KW |
| Max Die of Rewind Rolls | 350mm Dia |
| Machine Dimension L×W×H | 2200×2300×1600mm |
| Machine Weight | 3000KG |
| Overall Weight | 3100KG |
