FCS1.0-1300 flattening slitting cutting machine is used to slit the coil and cut the coil to length.

  • Easy operation, low maintain cost
  • Higher cost performance
  • High quality with faster working speed, max speed can reach 30m/min
  • With 3 to 5 sets slitter, this machine can slit the wide width to small strips.
Specifications
Model FCS1.0-1300
Dimension 2100*2400*1500mm
Hydraulic Motor Power 7.5kW
Motor Power 3.7kW
Forming Speed 10-15m/min
Voltage 380V/50HZ/3PH
Max. Width 1300mm
Cutting Tolerance ±0.5mm within 2 meters length, ±1mm for diagonal within 2 meters length
Size of Flattening Roller 85mm, total 13pcs
Slitter Quantity According to your request
Thickness 0.5-2.0mm
Control System PLC Control
Details
  • Cutter material is made of Cr12Mov mold steel, with HRC58-60 heat treatment for high quality and long service life.

  • Shaft is made by high quality 40Cr steel with CNC lathes for long service life.
    Body frame is welded with use 400# H bean.

  • PLC control system can be chosen from Schneider, Siemens, Delta.

  • Slitter is made by Cr12Mov mold steel, with HRC58-60 heat treatment for high quality and long service life, available to add 3 sets to 5 sets of slitter.

Main Accessories
  • Main machine
  • 5 tons manual uncoiler
  • Flattening device
  • Hydraulic cutting device
  • Hydraulic motor system
  • PLC computer controlling system with touch screen (Brand: Schneider)
  • Tools
  • Operation manual

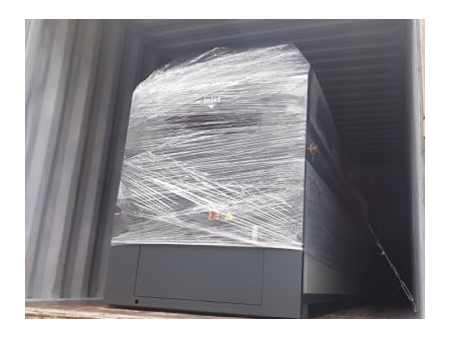

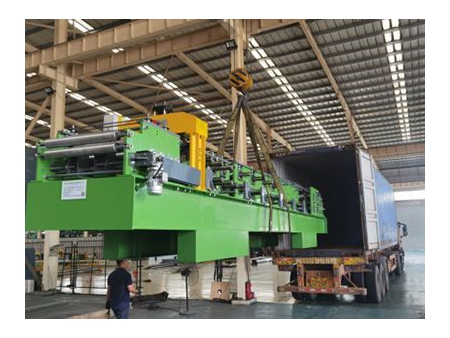

Transportation Package
Customer Show
Company Exhibition
