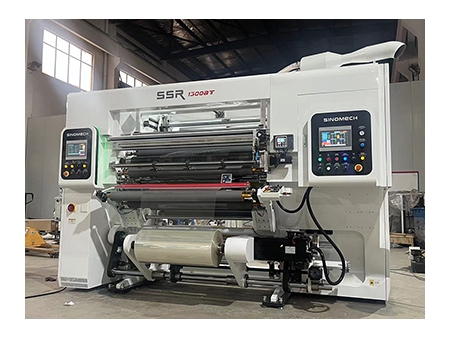

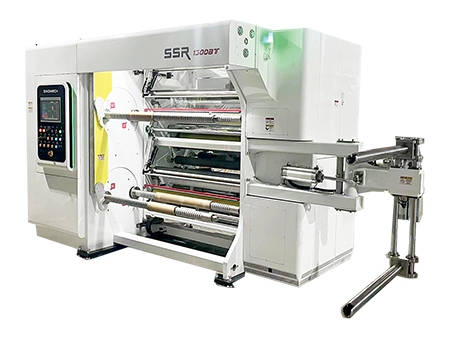

SSR-AT Slitting Machine
Request a Quote
This slitting machine is suitable for slitting BOPP, PET, CPP, PE, and other plastic films or laminated materials commonly used in flexible packaging applications.
- Max web width: 1050/1300mm or customized
- Max slitting speed: 650m/min
- Max unwinding diameter: 800mm or customized
- Max rewinding diameter: 600mm
- Inner diameter of core for unwinder: 3'' or 6''
- Inner diameter of core for rewinder: 3''
- Slitting accuracy: ≤±0.2mm

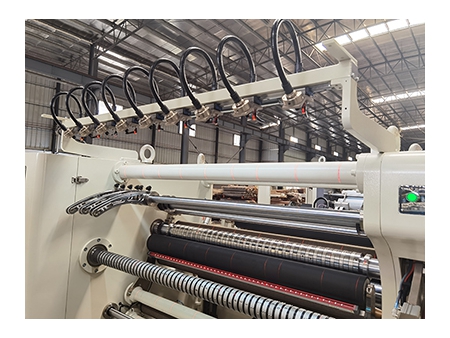

- Optional function: automatic knife positioning system
Features
- Automatic tension regulation ensures stable web control throughout the process
- Turret rewinders with zero-speed splicing reduce material waste and shorten changeover times

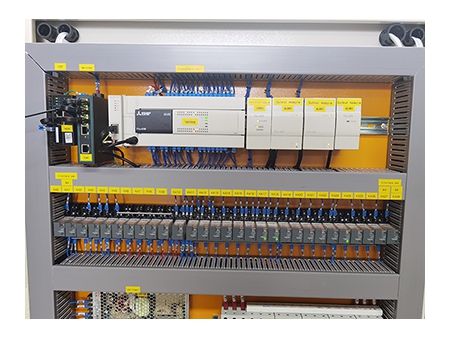

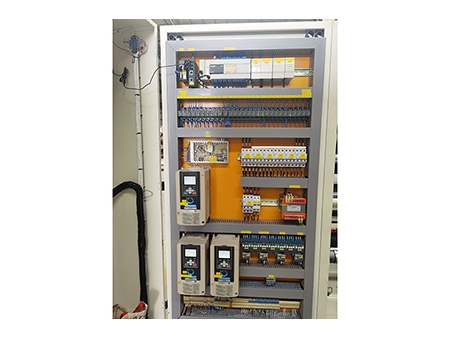

- PLC touchscreen interface provides intuitive control and real-time system monitoring
- The electric lifting system on the unwinder simplifies roll handling and improves operator safety
- Laser-guided core positioning guarantees accurate alignment for every setup
- Finished rolls can be unloaded smoothly using the integrated stand and push-and-rotate system
