XIZI IPARKING can design a custom parking system that will fulfill all your parking needs.

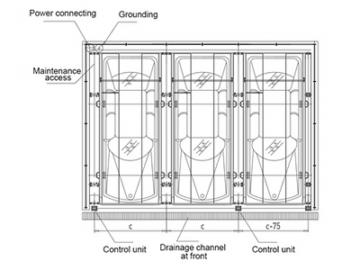

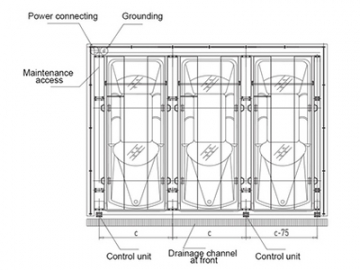

1. Pit Parking System, PJS

Specifications

Model		Z	D	T2	T
Allowable Vehicle	Vehicle Length	4700 mm	5000 mm	5200 mm	5300 mm
	Vehicle Width	1800 mm	1850mm	1900 mm	1900 mm
	Width including wing mirror	1900 mm	1950mm	2000 mm	2000 mm
	Width (tyre to tyre)	1760 mm	1800mm	1860mm	1860mm
	Vehicle Height	1550 mm	1550 mm	1550mm	1550 mm
	Vehicle Load	1500 Kg	1700 kg	2000 kg	2350 kg
Lifting Speed		2~3m/min
Drive Mode		Motor and chain driven
Lifting Motor		2.2Kw/3.7Kw
Power		Mx5.5KVA (M: number of controlled units)
Power Supply		AC380V 50Hz
Operation Mode		Button operation
Overall Width of Equipment		CxN (Number of rows) 400
Parking Capacity		Nx3

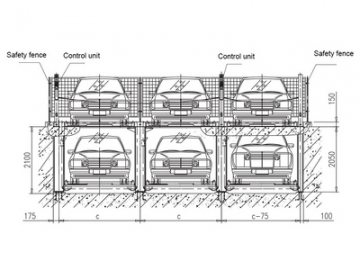

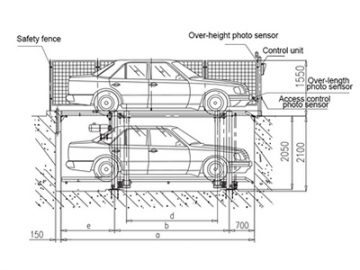

PJS2 (One level underground)

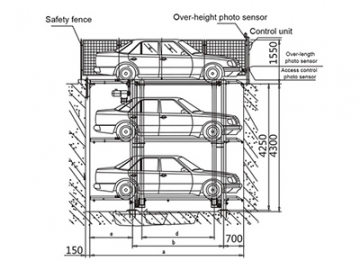

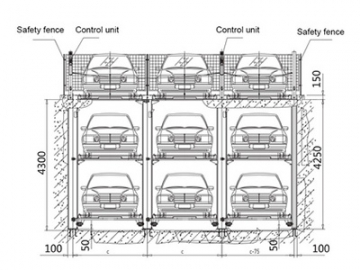

PJS3 (Two levels underground)

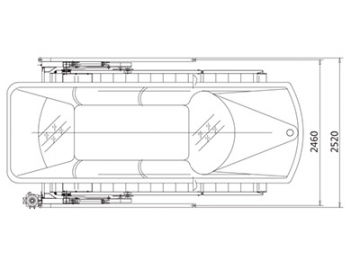

2. Stacker Parking System, PJS (MINI)

Specifications

Vehicle Dimension (depending on level height)
Model		MINI Standard		MINI Extended
Allowable Vehicle	Vehicle Length	4700mm	5000mm	5300mm
	Vehicle Width	1800mm	1850mm	1950mm
	Width including wing mirror	1900mm	1950mm	2050mm
	Vehicle Height	1450mm	1550mm	2000mm
	Vehicle Load	1500kg	1700kg	2200kg

Technical Parameters
Model	MINI Standard	MINI Extended
Operation Mode	Key-operated Rotary Switch	Key-operated Rotary Switch
Control	Electronic Control, Hydraulic	Electronic Control, Hydraulic
Motor Power	1.5KW	1.5KW
Power Capacity	3KVA	3KVA
Power Supply	AC220V 50Hz Single Phase	AC220V 50Hz Single Phase
Rated Speed	Lifting Speed: 50s(approx.) Lowering Speed: 25s(approx.)	Lifting Speed: 50s(approx.) Lowering Speed: 25s(approx.)
Working Pressure	16Mpa	20Mpa
Overflow Pressure	20Mpa	24Mpa
Parking Capacity	2 parking spaces	2 parking spaces

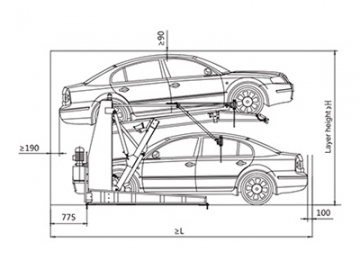

MINI Standard

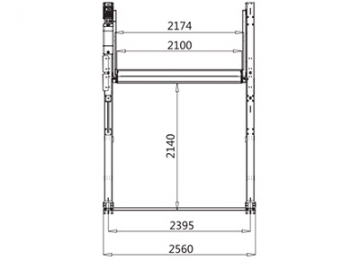

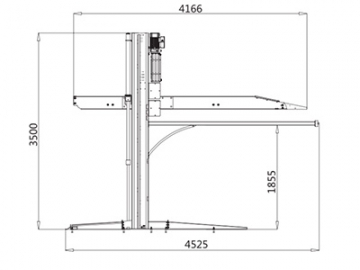

3. Two-Post Parking Lift, PJS2

Specifications

Vehicle Dimension (depending on level height)
Model		Two-Post Parking Lift
Allowable Vehicle	Vehicle Length	5200mm
	Vehicle Width	1850mm
	Width including wing mirror	1950mm
	Vehicle Height	1550mm
	Vehicle Load	2700kg

Technical Parameters
Operation Mode	Key-operated Rotary Switch
Control	Electronic Control, Hydraulic
Motor Power	2.2KW
Power Capacity	3KVA
Power Supply	AC220V 50Hz Single Phase/AC380 3 Phase
Rated Speed	Lifting Speed: 50s(approx.) Lowering Speed: 25s(approx.)
Working Pressure	16MP
Overflow Pressure	20MP
Parking Capacity	2 parking spaces

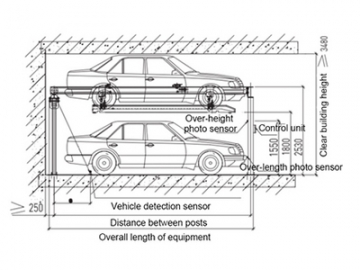

4. Four-Post Parking Lift, PJS2

Specifications

Model		Z	D	T2	T
Allowable Vehicle	Vehicle Length	4700mm	5000mm	5200mm	5300mm
	Vehicle Width	1800mm	1850mm	1900mm	1950mm
	Width including wing mirror	1900mm	1950mm	2000mm	2050mm
	Width (tyre to tyre)	1760mm	1800mm	1860mm	1900mm
	Vehicle Height	1550mm	1550mm	1550mm	1550mm
	Vehicle Load	1500kg	1700kg	2000kg	2350kg
Lifting Speed		4.0-5.0m/min
Drive Mode		Motor and chain driven
Lifting Motor		2.2KW			3.7KW
Power		4KVA			7KVA
Power Supply		AC380V 50HZ
Operation Mode		Button or IC Card

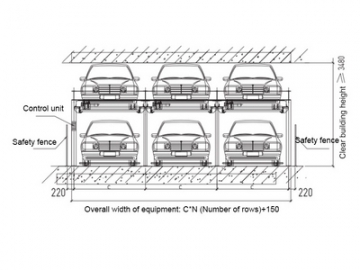

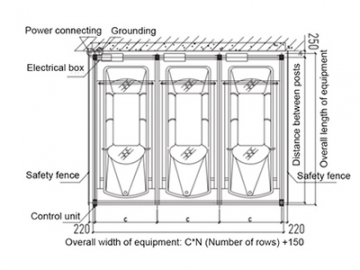

Overall Width of Equipment		C*N(Number of rows) 150
Parking Capacity		3 mechanical parking spaces, 3 ground parking spaces
