Machine Tapes and Belts
Request a Quote
Machine tapes and belts are a central component for many manufacturing operations, allowing for precisely and effortlessly manipulate products through conveying, accelerating, slowing down and positioning, therefore satisfying individual production demands.
At Dongji, you can find a comprehensive range of machine tapes and belts that are featured by energy saving, burr-free edge, antistatic property, high conductivity and good resilience, as well as outstanding resistance to abrasion, bending, chemicals, oil, and high or low temperatures. Our machine belts are fabricated using proven joining method, Thermofix and Flexproof, to give high flexibility of belt length. The reliable features of our machine tapes and belts enable it suitable for use in electronics manufacturing equipment, semiconductor fabrication equipment, PV production equipment, food processing equipment, pharmaceutical machinery, PPE manufacturing equipment, textile equipment, paper converting machines, printing machines, packaging machinery, woodworking machinery and many other manufacturing equipment.

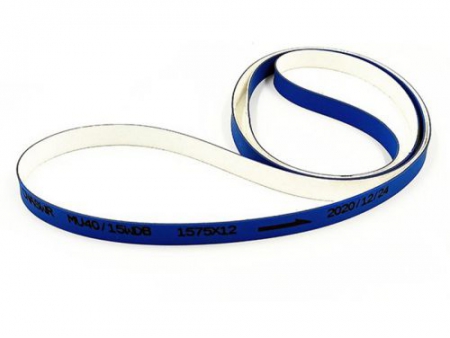

- Elastic Machine Tape (Tangent Flat Belt), MU40/15WDB
- Material: 1 ply of suede leather, 1 ply of thermoplastic polyurethane (TPU)
- Construction: suede leather / TPU
- Thickness: 1.5mm (±0.1mm)
- Color: white / blue
- Min. pulley diameter: 10mm
- Tensile force for 1% elongation (after running-in): 2.0 N/mm
- Mass (belt weight): 1.6kg/m²
- Working temperature: -20 to 100℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof

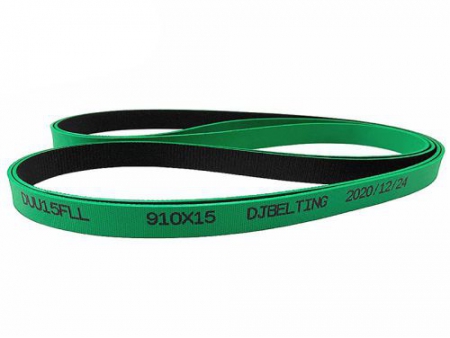

- Elastic Machine Tape, DUU15FLL
- Material: 2 plies of thermoplastic polyurethane (TPU)
- Construction: TPU / TPU
- Surface structure: rough structure
- Thickness: 1.5mm (±0.1mm)
- Color: green / black
- Min. pulley diameter: 10mm
- Tensile force for 8% elongation after running-in: 3.0N/mm
- Mass (belt weight): 1.8kg/m²
- Working temperature: -20 to 60℃
- Antistatic property: no
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)

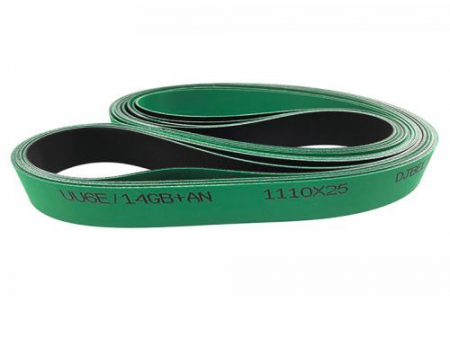

- Machine Tape, UU6E/14GB AN
- Material: 2 plies of thermoplastic polyurethane (TPU), 1 ply of polyethylene terephthalate (PET)
- Construction: TPU / PET / TPU
- Surface finish: double-sided matte finish
- Thickness: 1.4mm (±0.1mm)
- Color: green / black
- Min. pulley diameter: 18mm
- Tensile force for 1% elongation (after running-in): 6.0 N/mm
- Mass (belt weight): 1.8kg/m²
- Working temperature: -20 to 80℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)

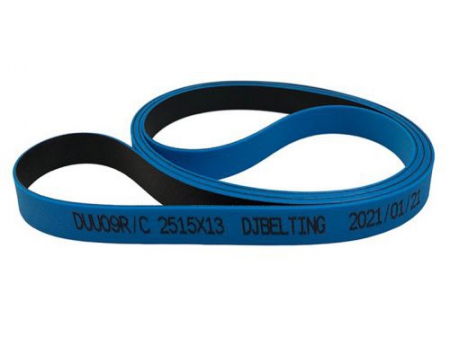

- Elastic Conveyor Tape, DUU09R/C
- Material: 1 ply of thermoplastic polyurethane (TPU), 1 ply of polyurethane (PUR)
- Construction: TPU / PUR
- Surface finish: matte finish
- Thickness: 1.3mm (±0.1mm)
- Color: light blue / black
- Min. pulley diameter: 15mm
- Tensile force for 8% elongation (after running-in): 8.0 N/mm
- Mass (belt weight): 1.6kg/m²
- Working temperature: -20 to 60 ℃
- Conductivity /antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)

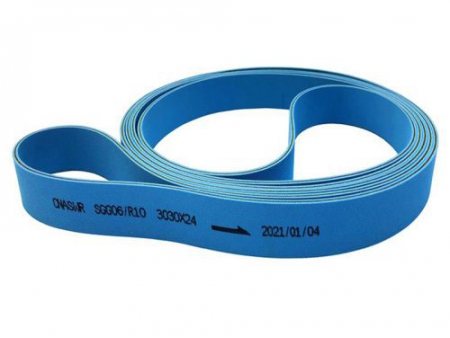

- Machine Belting, SGG06/R10
- Material: 2 plies of nitrile butadiene rubber (NBR)
- Construction: NBR / PA / NBR
- Thickness: 3.0mm (±0.1mm)
- Color: blue / blue
- Min. pulley diameter: 30mm
- Tensile force for 1% elongation (after running-in): 8.0 N/mm
- Mass (belt weight): 3.5kg/m²
- Working temperature: -20 to 80℃
- Antistatic property: no
- Standard belt width: 500mm
- Joining method: Thermofix

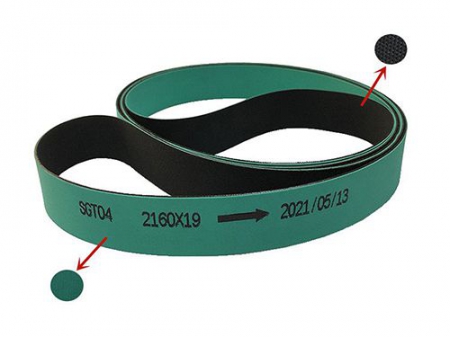

- Machine Tape, CNASWR SGT04
- Material: 1 ply of rubber, 1 ply of polyamide (PA) and 1 ply of sized fabric
- Construction: rubber / PA / sized fabric
- Thickness: 1.2mm (±0.1mm)
- Color: green / black
- Min. pulley diameter: 12mm
- Tensile force for 1% elongation: 6.0 N/mm
- Mass (belt weight): approx.1.3kg/m²
- Working temperature: -20 to 100℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix

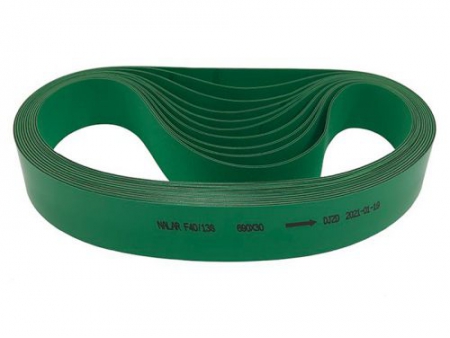

- Machine Belt, Polyamide Plate Based Flat Belt, NALAR F40/13S
- Material: 2 plies of nitrile butadiene rubber (NBR), 1 ply of polyamide (PA)
- Construction: NBR / PA / NBR
- Surface finish: matte finish
- Thickness: 1.3mm (±0.1mm)
- Color: grass green / grass green
- Min. pulley diameter: 20mm
- Tensile force for 1% elongation (after running-in): 4.0 N/mm
- Mass (belt weight): 1.4kg/m²
- Working temperature: -20 to 100℃
- Antistatic property: no
- Standard belt width: 500mm
- Joining method: Thermofix

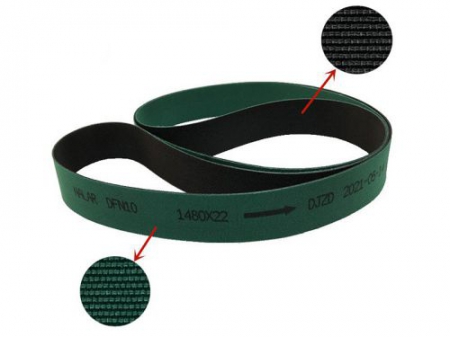

- Machine Belting, NALAR DFN10
- Material: 2 plies of fiber, 1 ply of polyamide (PA)
- Construction: fiber / PA / fiber
- Thickness: 1.0mm (±0.1mm)
- Color: blackish green / black
- Min. pulley diameter: 20mm
- Tensile force for 8% elongation: 2.0 N/mm
- Mass (belt weight): approx.0.8kg/m²
- Working temperature: -20 to 100℃
- Antistatic property: no
- Standard belt width: 500mm
- Joining method: Thermofix

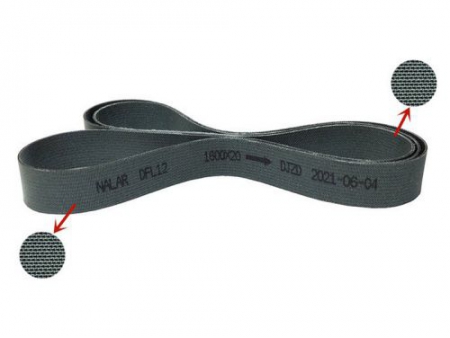

- Machine Tape, NALAR DFL12
- Material: 2 plies of fiber, 1 ply of polyamide (PA)
- Construction: fiber / PA / fiber
- Thickness: 1.2mm (±0.1mm)
- Color: grey /grey
- Min. pulley diameter: 20mm
- Tensile force for 1% elongation: 4.0 N/mm
- Mass (belt weight): approx.1.1kg/m²
- Working temperature: -20 to 100 ℃
- Antistatic property: no
- Standard belt width: 500mm
- Joining method: Thermofix
- Multifunctional Extraline Flat Belt, CNASWR DK-07AN
- Material: 2 plies of soaking fabric, 1 ply of polyamide (PA)
- Construction: soaking fabric / PA / soaking fabric
- Thickness: 1.5mm (±0.1mm)
- Color: black / black
- Min. pulley diameter: 40mm
- Tensile force for 1% elongation: 7.0 N/mm
- Mass (belt weight): approx.1.5kg/m²
- Working temperature: -30 to 150℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix

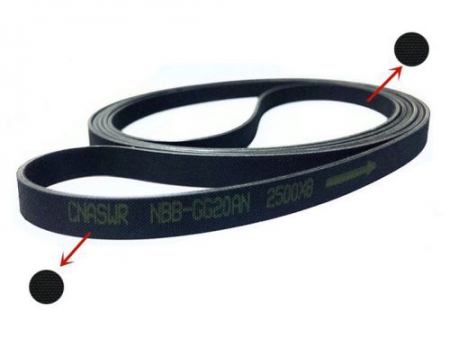

- Extraline Machine Tape, CNASWR NBB-GG20AN
- Material: 1 ply of nitrile butadiene rubber (NBR), 1 ply of rubber
- Construction: NBR / rubber
- Thickness: 2.0 mm (±0.1mm)
- Color: black / black
- Min. pulley diameter: 50mm
- Tensile force for 1% elongation: 10.0 N/mm
- Mass (belt weight): approx.2.4 kg/m²
- Working temperature: -20 to 150℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix
- Production length: 100-120m

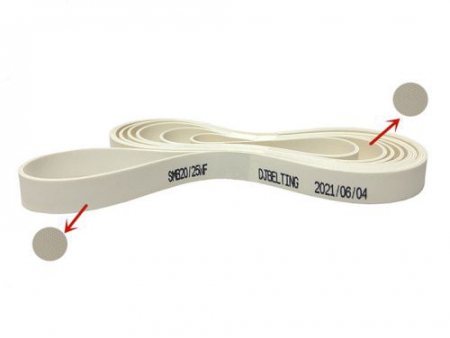

- TPU Machine Tape, SMB20/25WF
- Material: 2 plies of thermoplastic polyurethane (TPU), 1 ply of polyethylene terephthalate (PET)
- Construction: TPU / PET / TPU
- Thickness: 2.5mm (±0.1mm)
- Color: milky white / milky white
- Min. pulley diameter: 25mm (Flexproof), 40mm (Thermofix)
- Tensile force for 1% elongation: 20 N/mm
- Mass (belt weight): approx. 2.0kg/m²
- Working temperature: -20 to 70℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
- Production length: 100-120m

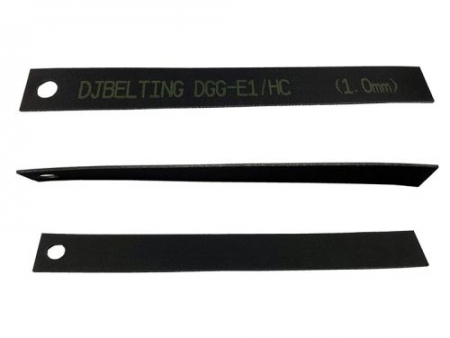

- Machine Tape, E1-HC
- Belt thickness: approx.1.0mm (±0.1mm)
- Material (top /bottom): NBR elastomer / NBR elastomer
- Surface structure (top /bottom): fine structure / fine structure
- Material of tension member: polyester fabric
- Color (top /bottom): black / black
- Min. pulley diameter (mm): 10mm (Flexproof), 15mm (Thermofix)
- Tensile force for 1% elongation: 8.0 N/mm
- Recommended elongation: 0.3-2.0%
- Mass (belt weight): approx.1.3kg/m²
- Working temperature: -20 to 60℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
- Applications: conveyor belt for electronic equipment, conveyer belt scale, comber belt (textile industry)

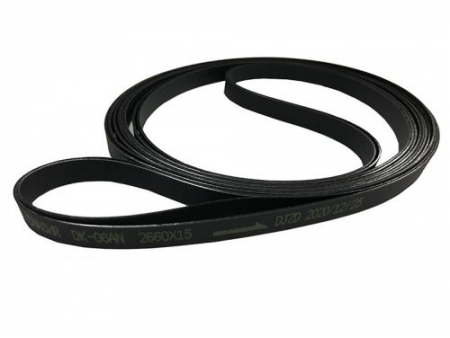

- Multifunctional Extraline Machine Tape, CNASWR DK-06AN
- Material: 2 plies of soaking fabric, 1 ply of polyamide (PA)
- Construction: soaking fabric / PA / soaking fabric
- Thickness: 1.2mm (±0.1mm)
- Color: black / black
- Min. pulley diameter: 30mm
- Tensile force for 1% elongation: 6.0 N/mm
- Mass (belt weight): approx.1.2kg/m²
- Working temperature: -30 to 150℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix

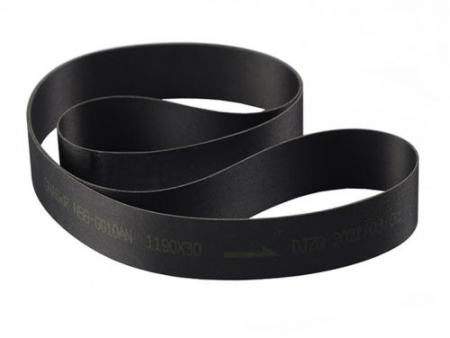

- Machine Belting, CNASWR NBB-GG10AN
- Material: 1 ply of nitrile rubber, 1 ply of nitrile butadiene rubber (NBR)
- Construction: nitrile rubber / PA / NBR
- Thickness: 1.0mm (±0.1mm)
- Color: black /black
- Min. pulley diameter: 15mm
- Tensile force for 1% elongation (after running-in): 15.0 N/mm
- Mass (belt weight): 1.2kg/m²
- Working temperature: -20 to 150℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix

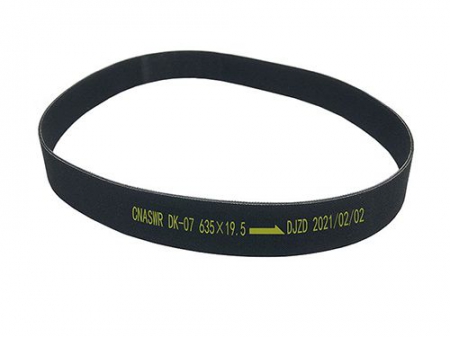

- Machine Tape, CNASWR DK-07AN
- Material: 2 plies of soaking fabric, 1 ply of polyamide (PA)
- Construction: soaking fabric / PA / soaking fabric
- Thickness: 1.5mm (±0.1mm)
- Color: black /black
- Min. pulley diameter: 40mm
- Tensile force for 1% elongation: 7.0 N/mm
- Mass (belt weight): approx.1.5kg/m²
- Working temperature: -30 to 150℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix

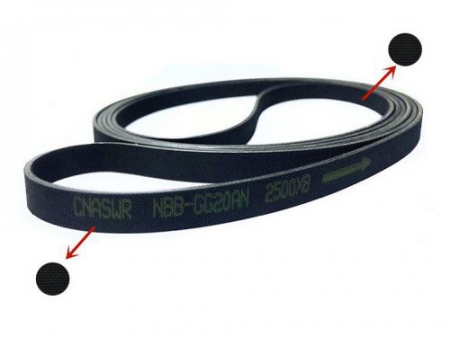

- Machine Belt (Flat Belt), CNASWR NBB-GG20AN
- Material: 1 ply of nitrile rubber, 1 ply of nitrile butadiene rubber (NBR)
- Thickness: 2.0mm (±0.1mm)
- Color: black /black
- Min. pulley diameter: 50mm
- Tensile force for 1% elongation: 8.0 N/mm
- Mass (belt weight): approx.2.4kg/m²
- Working temperature: -20 to 100℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix
- Production length: 100-120m
- Machine Tape (Extraline Belting), MU40/15WDB
- Construction: 1 ply of suede leather, 1 ply of thermoplastic polyurethane (TPU)
- Thickness: 1.5 mm (±0.1mm)
- Color: white /blue
- Min. pulley diameter: 10mm
- Tensile force for 1% elongation (after running-in): 2.0 N/mm
- Mass (belt weight): 1.6kg/m²
- Working temperature: -20 to 80℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof

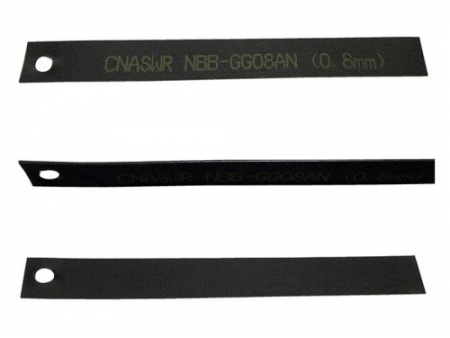

- Machine Tape, NGG-GG08AN
- Brand: UUITA
- Thickness: approx.0.8mm (±0.1mm)
- Material (top/bottom): rubber elastomer / rubber elastomer (no fabric cloth in between)
- Surface finish (top /bottom): rough structure / rough structure
- Material of tension member: polyamide foil
- Color (top /bottom): black / black
- Antistatic property: yes
- Min. pulley diameter:10 mm
- Tensile force for 1% elongation: 2.0 N/mm
- Recommended elongation: 2.0-4.0%
- Mass (belt weight): approx.1.2kg/m²
- Working temperature: -20 to 100℃
- Standard belt width: 500mm
- Joining method: Thermofix
- Industry: electronics, clean room
- Application: machine belting/special purpose flat belt

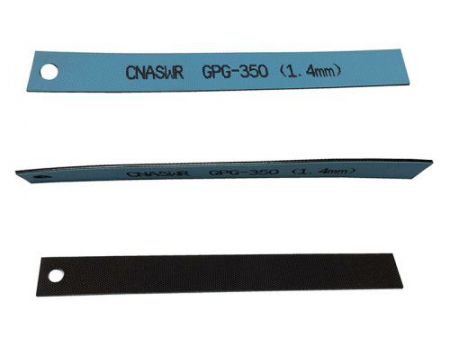

- Machine Belting, GPG-350
- Brand: UUITA
- Thickness: approx.1.4mm (±0.1mm)
- Material (top /bottom): NBR elastomer / NBR elastomer
- Surface finish (top /bottom): rough structure / rough structure
- Material of tension member: polyamide foil
- Color (top /bottom): black / blue
- Antistatic property: yes
- Min. pulley diameter: 20mm
- Tensile force for 1% elongation: 3.5 N/mm
- Recommended elongation: 2.0-3.0%
- Mass (belt weight): approx.1.6kg/m²
- Working temperature: -20 to 100℃
- Standard belt width: 500mm
- Joining method: Thermofix
- Industry: electronics, printing & packaging, paper
- Application: machine belting / polyamide plate based flat belt
- Machine Belting, RD-6P
- Brand: UUITA
- Thickness: approx.1.4mm (±0.1mm)
- Material (top /bottom): thermoplastic elastomer / NBR elastomer
- Surface finish (top /bottom): fine structure / fine structure
- Material of tension member: polyamide fabric
- Color (top /bottom): black / green
- Min. pulley diameter:25mm (Flexproof), 40mm (Thermofix)
- Tensile force for 1% elongation: 6.0 N/mm
- Mass (belt weight): approx.1.5kg/m²
- Working temperature: -30 to 80℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
- Industry: electronics, printing & packaging, paper
- Application: machine belting / paper processing belt
Machine Belting, EUE-12HC- Brand: UUITA
- Thickness: approx.1.2mm (±0.1mm)
- Material (top /bottom): impregnated fabric PET / PET impregnated fabric
- Surface finish (top /bottom): fabric texture / fabric texture
- Material of tension member: polyester fabric
- olor (top /bottom): black / black
- Min. pulley diameter: 15mm (Flexproof), 30mm (Thermofix)
- Tensile force for 1% elongation: 6.0 N/mm
- Recommended elongation: 0.3-2.0%
- Mass (belt weight): approx.1.2kg/m²
- Working temperature: -30 to 80℃
- Conductivity /antistatic property: yes
- Standard belt width: 500mm
- Joining method: Flexproof/ Thermofix/Mechanical Joint
- Industry: electronics, printing & packaging, paper
- Application: machine belting / special purpose conveyor belt / electrical discharge belt
Elastic Machine Belting, DU40/15EL-HC- Brand: UUITA
- Thickness: approx.1.5mm (±0.1mm)
- Material (top /bottom): PUR / PUR
- Surface finish (top /bottom): rough structure / rough structure
- Material of tension member: TPU
- Color (top /bottom): black / black
- Min. pulley diameter: 15mm
- Tensile force for 8% elongation: 8.0 N/mm
- Recommended elongation: 3.0-8.0%
- Mass (belt weight): approx.1.6kg/m²
- Working temperature: -20 to 70℃
- Conductivity /antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
- Industry: photovoltaic, solar energy, electronics, semiconductor, printing and packaging, paper, postal
- Application: machine belting/elastic conveyor flat belt
Elastic Machine Belting, LGT-115EL- Brand: UUITA
- Thickness: approx.1.1mm (±0.1mm)
- Material (top /bottom): TPU / PUR
- Surface finish (top /bottom): rough structure /fine structure
- Material of tension member: TPU
- Color (top /bottom): black / black
- Min. pulley diameter:10mm
- Tensile force for 8% elongation: 3.0 N/mm
- Recommended elongation: 3.0-8.0%
- Mass (belt weight): approx.1.3kg/m²
- Working temperature: -30 to 90℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
- Industry: photovoltaic, distribution center (logistics center), solar energy, electronics, semiconductor, printing & packaging, paper, postal
- Application: machine belting / elastic conveyor flat belt
Elastic Machine Tape, LGT-125EL- Brand: UUITA
- Thickness: approx.1.2mm (±0.1mm)
- Material (top /bottom): TPU / PUR
- Surface finish (top /bottom): rough structure /fine structure
- Material of tension member: TPU
- Color (top /bottom): black / black
- Antistatic property: yes
- Min. pulley diameter:15 mm
- Tensile force for 8% elongation: 3.0N/mm
- Recommended elongation: 3.0-8.0%
- Mass (belt weight): approx.1.3kg/m²
- Working temperature: -30 to 90℃
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
- Industry: photovoltaic, distribution center (logistics center), solar energy, electronics, semiconductor, printing & packaging, postal
- Application: machine belting / elastic conveyor flat belt
Elastic Machine Tape, DUR40EL-HC- Brand: UUITA
- Thickness: approx.1.35mm (±0.1mm)
- Material (top /bottom): PUR / Damid (thermoplastic elastomer)
- Surface finish (top /bottom): rough structure / rough structure
- Material of tension member: TPU
- Color (top /bottom): grey / black
- Antistatic property: yes
- Min. pulley diameter: 13mm
- Tensile force for 8% elongation: 6.4N/mm
- Recommended elongation: 3.0-8.0%
- Mass (belt weight): approx.1.5kg/m²
- Working temperature: -20 to 60℃
- Standard belt width: 500mm
- Joining method: Flexproof (adhesive-free joint) & Thermofix
- Industry: photovoltaic, solar energy, electronics, semiconductor, printing & packaging, paper, postal
- Application: machine belting / elastic conveyor flat belt / folder-gluer polyamide plate based flat belt / pallet-type conveyor belt
Elastic Machine Tape, DU40/11EL-C- Brand: UUITA
- Thickness: approx.1.1mm (±0.1mm)
- Material (top /bottom): TPU / PUR
- Surface finish (top /bottom): rough structure /fine structure
- Material of tension member: TPU
- Color (top /bottom): dark green / black
- Min. pulley diameter:14mm
- Tensile force for 8% elongation: 6.4 N/mm
- Recommended elongation: 3.0-8.0%
- Mass (belt weight): approx.1.2kg/m²
- Working temperature: -20 to 60℃
- Conductivity /antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix & Flexproof (adhesive-free joint)
- Industry: photovoltaic, solar energy, electronics, semiconductor, printing & packaging, paper, postal
- Application: machine belting/elastic conveyor flat belt
Machine Tape, SGT06- Brand: UUITA
- Thickness: approx.1.5mm (±0.1mm)
- Material (top /bottom): polyamide fabric / NBR elastomer
- Surface finish (top /bottom): fabric texture / fine structure
- Material of tension member: polyamide foil
- Color (top /bottom): black / bright green
- Min. pulley diameter: 15mm (Thermofix)
- Tensile force for 1% elongation: 4.0 N/mm
- Recommended elongation: 2.0-3.0%
- Mass (belt weight): approx.1.6kg/m²
- Working temperature: -20 to 100℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Thermofix
- Industry: electronics, printing, paper
- Application: machine belting / polyamide plate based flat belt
Machine Tape, DGG E1-HC- Brand: UUITA
- Thickness: approx.1.0mm (±0.1mm)
- Material (top /bottom): NBR elastomer / NBR elastomer
- Surface finish (top /bottom): fine structure / fine structure
- Material of tension member: polyester fabric
- Color (top /bottom): black / black
- Min. pulley diameter:10mm (Flexproof), 15mm (Thermofix)
- Tensile force for 1% elongation: 8.0 N/mm
- Recommended elongation: 0.3-2.0%
- Mass (belt weight): approx.1.3kg/m²
- Working temperature: -20 to 60℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Flexproof (adhesive-free joint) & Thermofix
- Industry: electronic, conveyer belt scale, textile (comber belt)
- Application group: machine belting
Machine Tape, DB-7E/12 AN- Brand: UUITA
- Thickness: approx.1.2mm (±0.1mm)
- Material (top /bottom): TPU / TPU
- Surface finish (top /bottom): rough structure / fine structure
- Material of tension member: PET
- Color (top /bottom): black / black
- Min. pulley diameter:15mm (Flexproof), 25mm (Thermofix)
- Tensile force for 1% elongation: 8.0 N/mm
- Recommended elongation: 0.3-2.0%
- Working temperature: -20 to 70℃
- Mass (belt weight): approx. 1.5kg/m²
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Flexproof (adhesive-free joint) & Thermofix
- Industry: electronics, photovoltaic solar energy, printing
- Application: machine belting / TPU transmission belt
Machine Tape, DB-8E/15 AN- Brand: UUITA
- Thickness: approx.1.5mm (±0.1mm)
- Material (top /bottom): TPU / TPU
- Surface finish (top /bottom): rough structure / rough structure
- Material of tension member: PET
- Color (top /bottom): black / black
- Min. pulley diameter:20mm (Flexproof), 30mm (Thermofix)
- Tensile force for 1% elongation: 8.0 N/mm
- Recommended elongation: 0.3-2.0%
- Working temperature: -20 to 70℃
- Mass (belt weight): approx.1.7kg/m²
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Flexproof (adhesive-free joint) & Thermofix
- Industry: electronics, photovoltaic solar energy, printing
- Application: machine belting / TPU transmission belt
Machine Tape, DB-10E/20 AN- Brand: UUITA
- Thickness: approx.2.0mm (±0.1mm)
- Material (top /bottom): TPU / TPU
- Surface finish (top /bottom): rough structure / rough structure
- Material of tension member: PET
- Color (top /bottom): black / black
- Antistatic property: yes
- Min. pulley diameter: 30mm (Flexproof), 50mm (Thermofix)
- Tensile force for 1% elongation: 10.0 N/mm
- Recommended elongation: 0.3-2.0%
- Mass (belt weight): approx. 2.4kg/m²
- Working temperature: -20 to 70℃
- Standard belt width: 500mm
- Joining method: Flexproof (adhesive-free joint) & Thermofix
- Industry: electronics, photovoltaic solar energy, printing
- Application: machine belting / TPU transmission belt
Related products
Send Message
Other Products
Most Recent
More
Other Products
Videos
