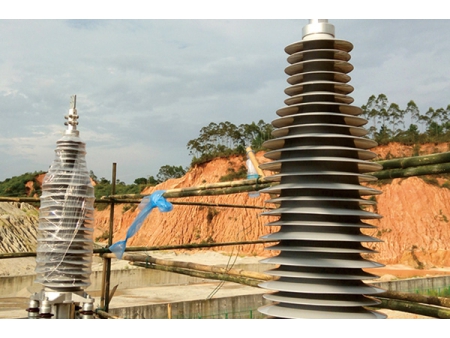

Dry Plug-in Composite Termination, 72.5kV-126kV
Request a Quote
Scope of Application
- Model: WYJZWFGC4
- Suitable for outdoor environment with pollution class of IV
- Rated voltage: 72.5kV (applicable to 120-800mm²)
126kV (applicable to 240-800mm²)
Features
- The termination connects the cable in a plug-in connection method, simplifying the installation and maintenance;
- The termination’s exterior is protected by silicon rubber rain sheds, offering excellent protection against pollution, ultraviolet ray, aging, and explosion;
- The cable preparation length is one third of common outdoor termination, drastically reducing installation time;
- The termination is free from insulating fluids, avoiding any leakage;
- Test standard of IEC 60840 and GB/T 11017
Cable Lug Specifications
| Max. system voltage | Cable nominal cross-section | Lug hole distance C (mm) | Connecting hole of lug Q (mm) | Palm width of cable lug D (mm) | Palm length of cable lug L (mm) |
| 72.5kV | 120 mm2-400 mm2 | 35 | 14 | 63 | 80 |
| 500 mm2-800 mm2 | 45 | 14 | 80 | 100 | |
| 126kV | 240 mm2-400 mm2 | 35 | 14 | 63 | 80 |
| 500 mm2-800 mm2 | 45 | 14 | 80 | 100 |

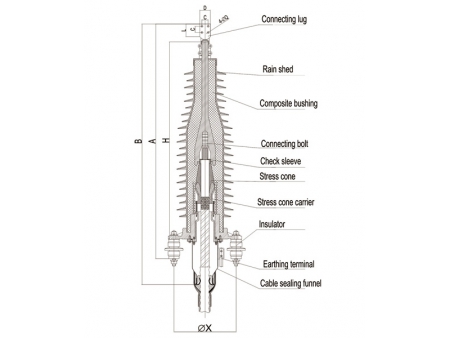

Termination Dimensions
| Max. system Voltage | 72.5kV | 126kV |
| H (mm) | 1420 | 1420 |
| A (mm) | 1715 | 1715 |
| B (mm) | 1930 | 1930 |

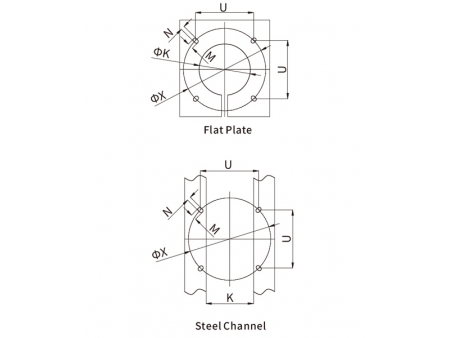

Base Plate Mounting Dimensions
| Max. system voltage | 72.5kV-126kV |
| N (mm) | 21 |
| M (mm) | 30 |
| K (mm) | 270 |
| U (mm) | 318 |
| X (mm) | 450 |
Notice When Ordering:
- Cable configuration and the cross-sectional area of earth wire shall be provided when ordering.
- Welcome to contact our sales manager for any special requirements before placing your order.
