Scope of Application

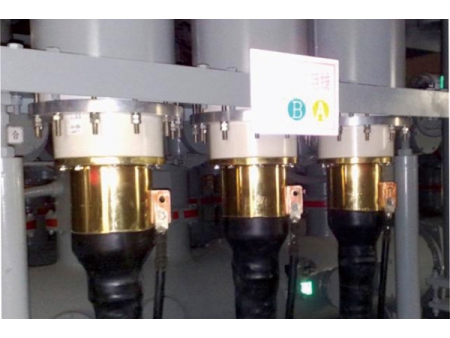

Model: WYJZGG
Suitable for indoor use
Rated voltage: 72.5kV (applicable to 120-1600mm²)
126kV (applicable to 240-1600mm²)
145kV (applicable to 240-1600mm²)
252kV (applicable to 400-2500mm²)

Download

Features

The stress cone of the cable termination is made of imported EPDM through rubber injection molding, and is secured into the epoxy insulator by a spring cone;
In terms of the stress cone surface, measures have been taken to solve the problems caused by aging-induced relaxation and poor contact between the stress cone and the out semi-conducting layer of the cable, ensuring the long-term and stable operation of the cable termination;
Dry structure avoids any leakage;
Compact structure, light weight, and small volume, greatly reducing the installation space;

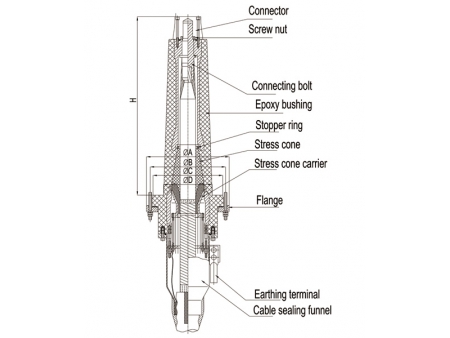

Outline Dimension

Notice When Ordering:

Cable configuration and the cross-sectional area of earth wire shall be provided when ordering.
All GIS termination and GIS composite apparatus produced by our company are strictly comply with IEC 62271-209 and GB/T 22381.When placing an order, please provide the necessary information, such as the executive standards and interface height or assembly drawing of the GIS composite apparatus, to ensure that the corresponding dimensions match up.
