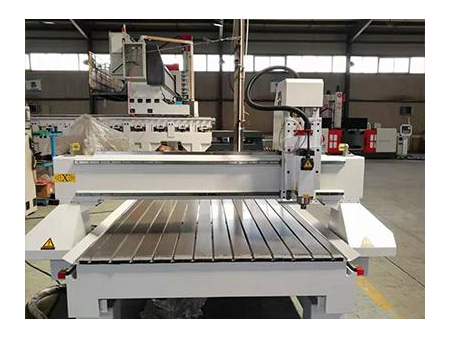

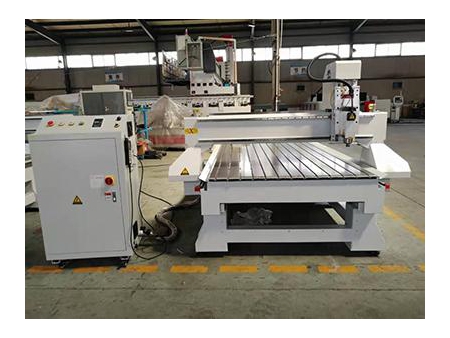

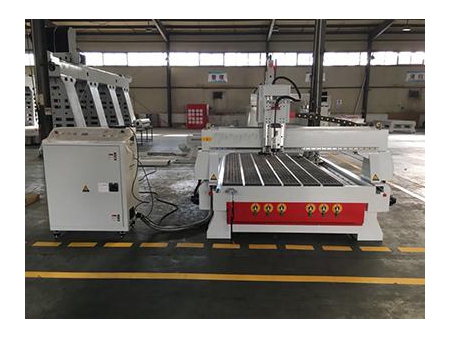

M1325A Series CNC Router/CNC Mill
Request a Quote

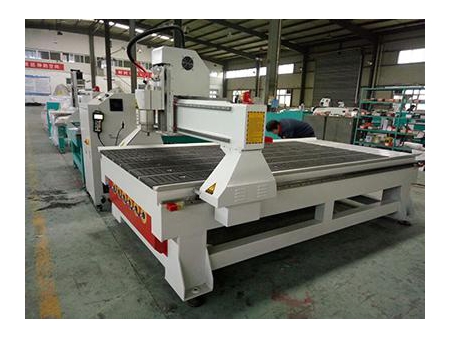

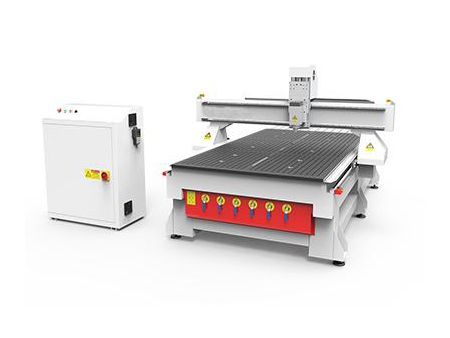

The CNC router is designed for cabinet manufacturing and is designed to complete different processes, including carving, cutting, milling, and drilling. It is used to produce cabinets, doors, shelves, and tabletops, as well as complex furniture such as desks and chairs. This CNC router is precise and efficient, with a smooth processed surface that requires no manual sanding.
Materials Cut
Wood, board, fiberboard, plastic, PVC, acrylic, resin
Features

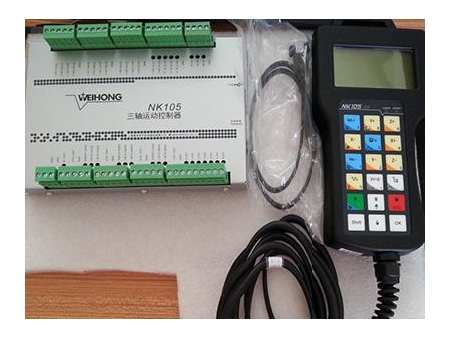

- The Weihong NK105G2 control system features an operating handle, USB ports and easy operation.

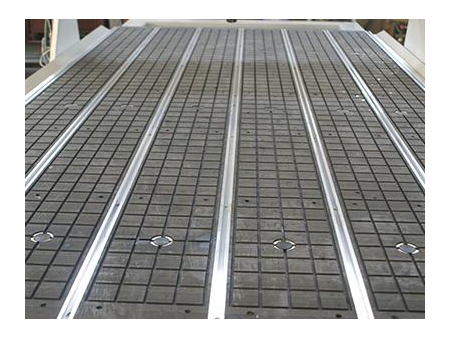

- The CNC router is equipped with a vacuum table for a quick, time saving load.

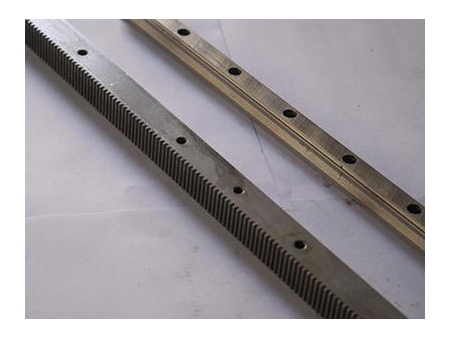

- Its X-axis and Y-axis uses an HIWIN guide rail and rack. It is driven by two motors for a high speed and high efficiency.
- The Z axis uses a TBI square guide rail with double rows and four column ball bearing slider. It features a smooth operation and a large load capacity.

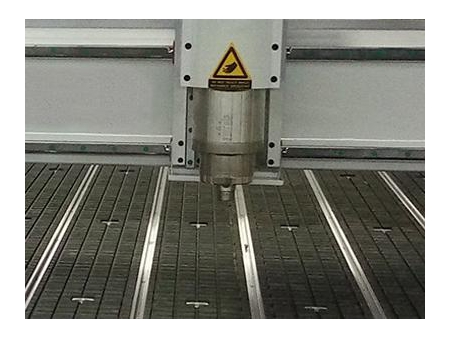

- It is equipped with 3.5KW air cooled spindles.
Parameters
| Model | F5-M1325A | F5-M1631A | F5-M2131A | F5-M2142A | |
| Stroke | 1300*2500*200mm | 1600*3100*200mm | 2100*3100*200mm | 2100*4200*200mm | |
| Support software | Type3/Artcam/Mastercam/UG | ||||
| Working voltage | AC380V-/220V | ||||
| Package dimensions | 3100*2100*2100mm | 3800*2100*2100mm | 3800*2200*2100mm | 4900*2200*2100mm | |
| Weights | 1400kg | 1700kg | 2000kg | 2200kg | |
Options
- The air-cooled spindles can be replaced with water cooled spindles.
- A T slot table with vacuum pump and vacuum cleaner is optional.
