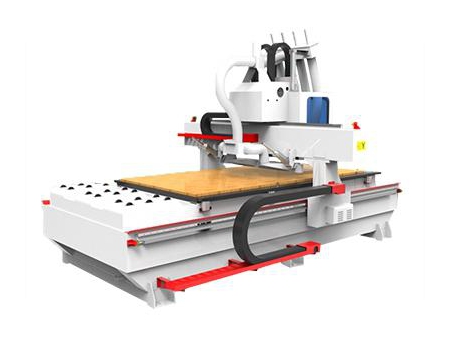

M1325AS4 Series CNC Router/CNC Mill
Request a Quote
This CNC router is specifically applicable to wood processing for completion of versatile and complex products. It will automatically complete a variety of processes, including milling, drilling, and cutting. This cost-effective CNC mill is equipped with 4 independent 3.5KW spindles.
Materials Cut
Board, fiberboard, particle board, PVC, acrylic, solid wood, other non-metallic materials
Applications

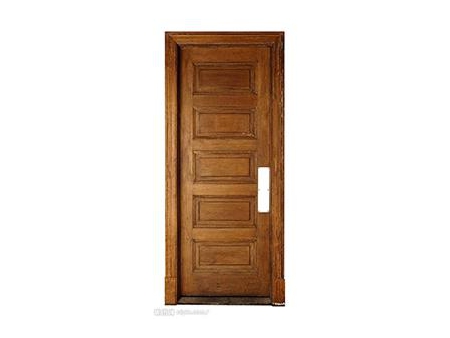

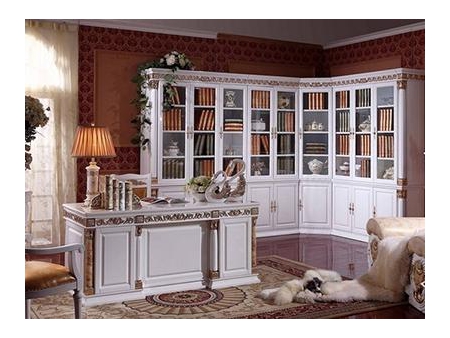

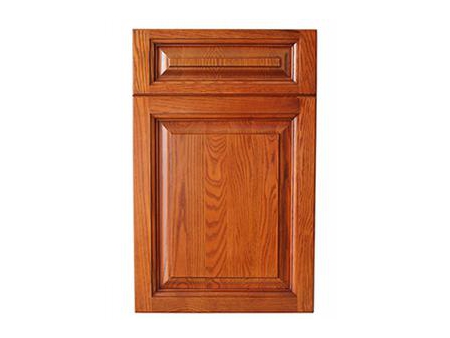

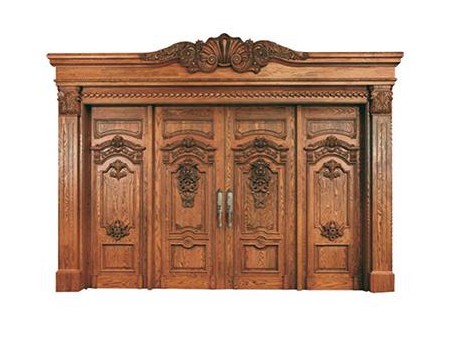

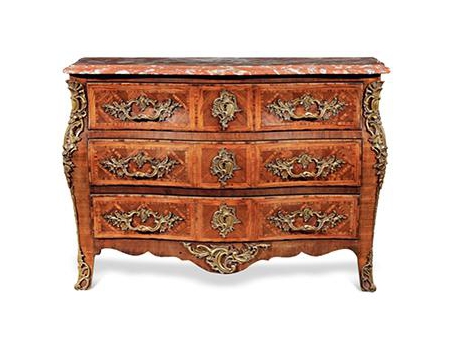

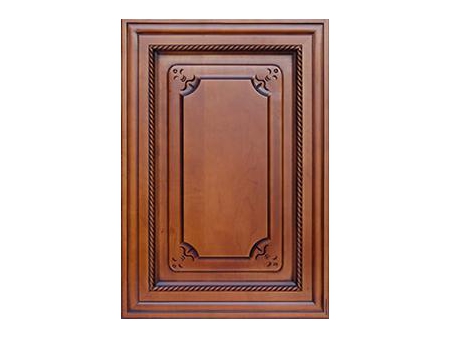

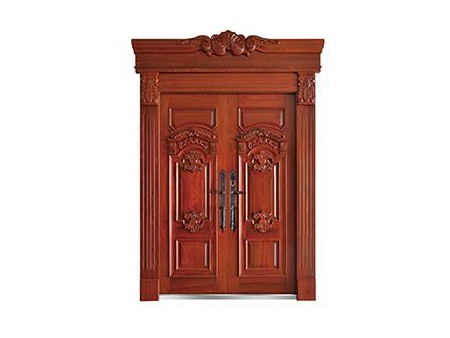

- Woodworking industry: wood doors, furniture, screens, three-dimensional wavy plates, windows and more
- Advertising industry: manufacturing advertising signs, plastic models, cutting acrylic plates, other advertising decorations

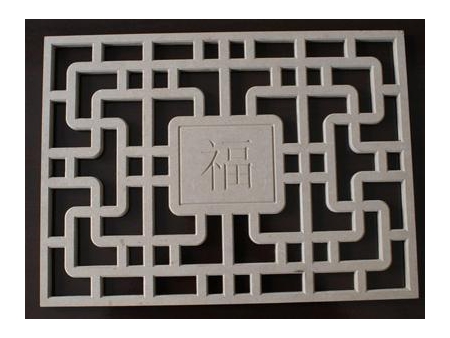

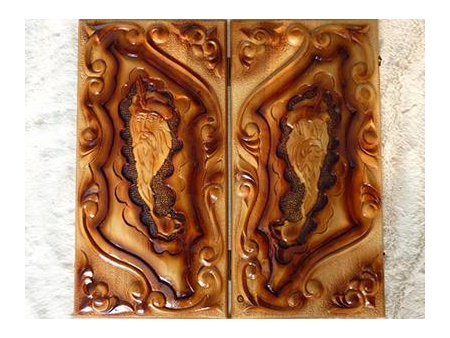

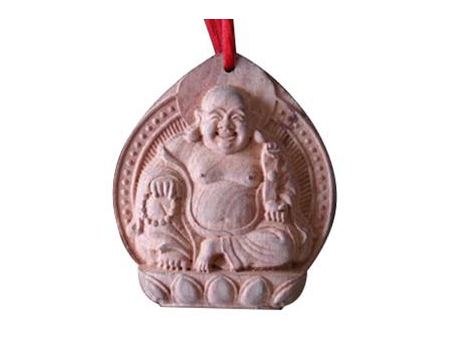

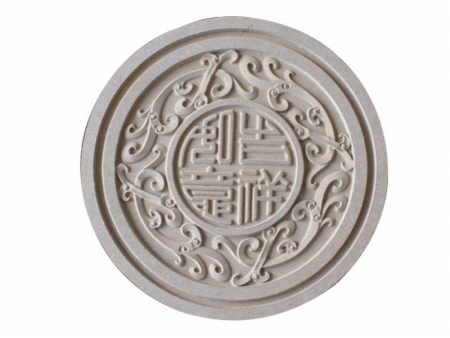

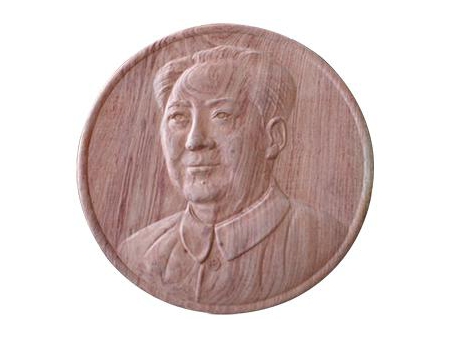

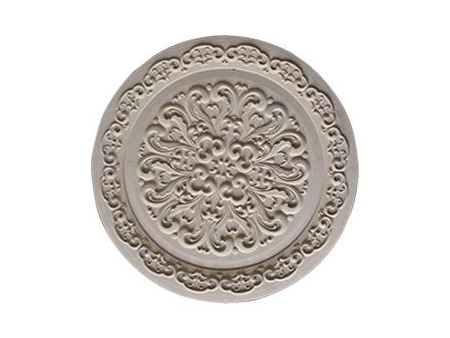

- Other industry: engraving handcrafted gifts and shadow carvings, embossing effects.
Features
- The four pneumatic tool change spindles can hold four different tools. The tools can be used alternately and changed automatically for a significant improvement in processing efficiency.
- This CNC router is equipped with 6 cylinders. Four cylinders allow four spindles to work in an alternate manner while two cylinders provide a force pushing upwards to reduce the Z axis load, protect it, and extend it’s service life.
- The CNC mill is equipped with an independent control cabinet and Weihong 95A-3S control system, which is known for its stable, easy operation.
- The vacuum table with a T-slot can fix workpieces in different dimensions both partially and firmly. It features a quick load and convenient use.
Parameters
| Model | F5-M1325AS4 | F5-M1631AS4 | F5-M2131AS4 | F5-M2142AS4 | ||
| Stroke | 1300*2500*200mm | 1600*3100*200mm | 2100*3100*200mm | 2100*4200*200mm | ||
| Positioning accuracy | ±0.03mm | |||||
| Idle speed | 45m/minute | |||||
| Support software | Type3/Artcam/Mastercam/UG | |||||
| Working voltage | AC380V-/220V | |||||
| Package dimensions | 3100*2100*2100mm | 3800*2100*2100mm | 3800*2200*2100mm | 3800*2200*2100mm | ||
| Weights | 1700kg | 2000 kg | 2200 kg | 2400 kg | ||
Optional Device
- The spindle with a pneumatic tool changer and two/three heads is optional.
- The Z axis features an optional height of 250mm or 300mm.
