Q(D)Y-K2 Multi-stage Submersible Pump
Request a Quote
Performance Range
Max. Flow: 34m3/h
Max. Head: 127m
Application Limits
- Maximum liquid temperature +40℃
- pH level from 6.5-8.5
- Maximum sand content is 0.1%. Passage of suspended solids up to 0.2mm
- Power frequency is 50Hz. Nominal voltage is 220VAC for single phase and 380VAC for three phase with the range from -10% to 10%.
- Immersion depth from 0.5m-5m
Certificate
Applications Fields
Due to multi-stage structure, Q(D)Y-K2 series pumps with high pressure are widely applied in many fields, such as agricultural irrigation, sprinkler irrigation, garden irrigation, water supply for wells, reservoirs, aquaculture, etc.
Features
- Oiled well pump motor structure, portable and durable.
- The impeller and flow components are made of engineering plastics which apply to use in seawater.
- High head, multistage centrifugal pump.

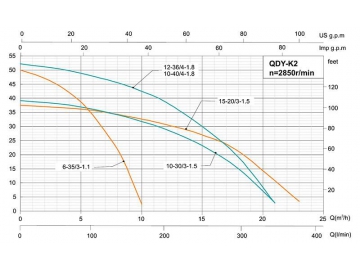

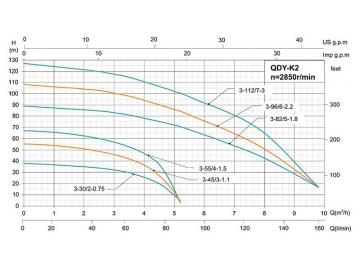

Performance Curve
