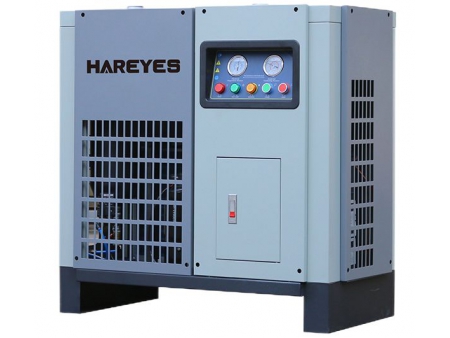

Refrigerated Compressed Air Dryer
Request a Quote
Refrigerated compressed air dryers are designed with a highly efficient refrigerant compressor and refrigerant accessories. With a pressure drop in the airflow channel at less than 0.02Mpa, the working efficiency is improved and electricity usage is reduced.
Working condition- Inlet temperature Lower than 70℃ (high temperature); lower than 45℃ (low temperature)
- Working pressure 6~10kg/cm²
- Maximum pressure 1.0Mpa, 10kg/cm² (customized pressure is available)
- Environment temperature 2~50℃
- Refrigerant R22 (R407c, R134a customized refrigerant is provided)
- Dew point temperature 2~10℃ (when air pressure is 7kg/cm²)
- Refrigerated compressed air dryers use a high quality thermal expansion valve, which is able to automatically adjust refrigerant supply according to the dryer's actual load, making the air compressor more energy saving and energy efficient.
- This air dryer is designed with a superior electronic drain valve, which, after being set, can discharge the moisture accumulated in the compressed air in time, ensuring the dryness of the compressed air.
- The heat exchanger in the refrigerant compressed air dryer uses an 8mm thick copper pipe, ensuring the heat exchanger remains crack free.
- The filter in the air dryer features a small volume and large filtration area, which can filter moisture and impurities in the cooling system, making the air dryer cleaner and less prone to failure frequencies.
- The refrigerant compressed air dryer is able to automatically detect low oil pressures in the semi-hermetic compressor to make it more reliable and safe.
Optional models
| Model | Handling capacity (m3/min) | Air volume SCFM | Overall power (KW) | Power supply(V) | Inlet and outlet size | Dimension H×W×D(mm) | Approximate net weight kg | |
| FD20 | 1.2 | 43 | 0.79 | 1ph 220VAC | G3/4" | 620×280×660 | 46 | |
| FD30 | 1.8 | 63 | 0.81 | 650×280×660 | 52 | |||
| FD40 | 2.4 | 88 | 0.86 | G1" | 760×340×720 | 70 | ||
| FD60 | 3.6 | 135 | 0.88 | G11/2" | 840×380×800 | 77 | ||
| FD120 | 7.2 | 240 | 1.5 | 940×500×930 | 125 | |||
| FD180 | 10.8 | 317 | 2.39 | G21/2" | 1040×540×1100 | 180 | ||
| FD250 | 15 | 459 | 2.7 | 3ph 380VAC | 1040×560×1330 | 230 | ||
| FD300 | 18 | 635 | 3.35 | DN80 | 1080×630×1400 | 255 | ||
| FD400 | 24 | 812 | 4.3 | 1200×710×1500 | 320 | |||
| FD450 | 27 | 987 | 5.2 | 1200×710×1500 | 370 | |||
| FD600 | 36 | 1200 | 6.8 | DN100 | 1350×900×1650 | 550 | ||
| FD750 | 45 | 1588 | 8.8 | DN125 | 1500×1900×1000 | 560 | ||
| FD850 | 51 | 1925 | 10.7 | 1600×2100×1100 | 600 |
- In the specification chart, "G" stands for "screw threaded connection", while the "DN" stands for "nominal diameter of flange connection".
- There should be no less than 1m space left around the dryer unit for ventilation and maintenance. The dryer unit can be easily installed without the base.
- The stop valve must be installed in the dryer unit inlet and outlet. A bypass valve should also be mounted in the unit under the condition that the air displacement is not interrupted. This makes it easier to repair and maintain the equipment.
- If the model, parameters, specifications and colors of the air dryer changes, please refer to the machine for actual data.
- The rated air handling capacity should be adjusted when the working temperature and pressure exceeds the specified requirements.
- Atlas Greenair is able to provide customized air dryers with various specifications.
