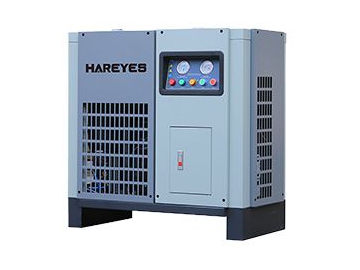

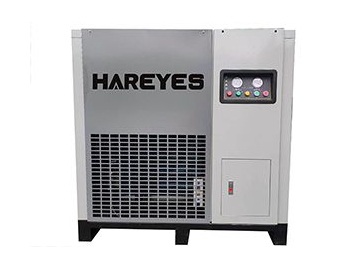

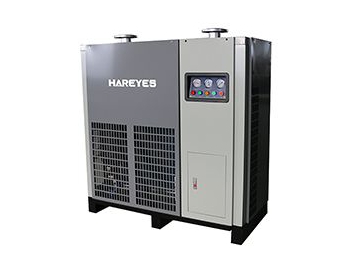

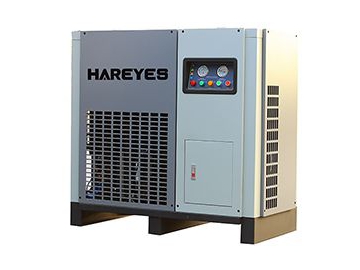

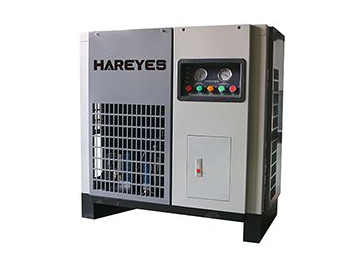

Refrigerated Air Dryer

Request a Quote

View All: http://aircomprs.com/5-1-refrigerated-air-dryer.html

Delivery Air Flow (Nm³/min): 1.5~55
Applicable for air compressor (kW/HP): 7.5/10~370/500
Power Supply (V/Hz): 220V 50Hz/380V 50Hz (Customization is available for various voltage and frequency)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

Resolve moisture issues in your compressed air systems effectively with refrigerated air dryers from HAREYES.

Model		HA-012H	HA-020H	HA-024H	HA-036H	HA-065H	HA-085H	HA-105H	HA-130H	HA-170H	HA-230H	HA-270H	HA-330H	HA-420H	HA-550H
Delivery Air Flow (Nm³/min)		1.5	2.0	2.5	3.8	6.5	8.5	10.5	13.5	17	21.5	28.5	32	41.5	55
Applicable for air compressor(KW/HP)		7.5/10	11/15	15/20	22/30	37/50	45/60	55/75	75/100	90/125	110/150	160/200	220/300	300/400	370/500
N.W.(KG)		48	65	58	95	110	130	160	225	235	295	430	450	600	780
Inlet /Outlet Diameter (inch/mm)		G1	G1	G1″	G1.5″	G1.5″	DN50	G2″	G2.5″	G2.5″	DN80	DN80	DN80	DN100	DN125
Power(KW/HP)		0.68	0.5	0.83	1.1	1.5	2	2.7	3.1	3.1	5.2	5.5	6.2	7.8	11.7
Power Supply(V/Hz)		220V50Hz (Customization is available for various voltage and frequency)							380V50Hz (Customization is available for various voltage and frequency)
Dimension (mm)	L (mm)	680	400	800	980	1030	700	1240	1350	1350	1450	1550	1550	1700	2020
Dimension (mm)	W (mm)	440	800	440	500	550	900	650	670	670	700	850	850	850	950
	H (mm)	710	780	800	930	1000	1000	1150	1300	1300	1510	1595	1595	1740	1850

Note:
1. Pressure: 0.6-1.0Mpa
2. Dew Point: 2-10℃
3. Air inlet temperature: ≦80℃
4. Cooing Method: Fan-cooling (Water-cooling is available)

Features

Constructed with quality thickened copper tubing to prevent corrosion-induced leakage, thereby extending the lifespan of the main unit.
Designed with a 20% buffer to ensure stable performance even under challenging conditions.
Equipped with a high-performance thermal exchanger and other quality components for enhanced efficiency.
Protection against phase loss, phase reversal, high and low-pressure, and overload.
Emergency alert features.
We offer customizable refrigerated air dryers in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
