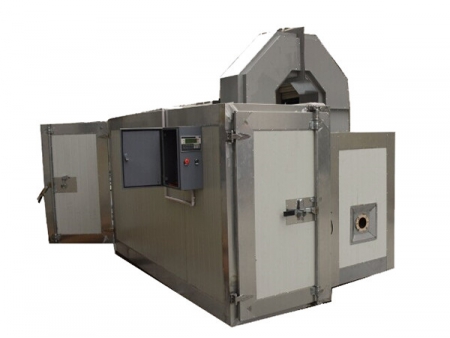

Gas Fired Curing Oven
The gas fired curing oven is composed of combustion chamber, air duct, frame, heating system, exhaust unit, and automatic temperature control system. Adopts high efficiency burner with strong stability, which is exported from Italy. The combustion chamber is made by high temperature resistant, aging resistant, and corrosion-resistant materials. The oven body is made of high quality steel, with beautiful appearance and reasonable sturcture. The powder curing oven is heating by circulating air, that features of uniform temperature, high thermal efficiency.
Applications
Our gas fired curing oven is widely used in the process of metal products, which including drying, curing, etc.
Features
This curing oven combines the functions of burning and heat transferring, smoke and air are discharged separately, there is no pollution during heating process. This hot blast stove comes with high thermal efficiency, fast heating up, small size, easy installation, reliable use, low price, and long service life. The temperature of our product is controlled automatically, which can be adjusted according to the settings.
| No. | Item | Specifications |
| 1 | Dimensions | L5000×W2000×H2300mm |
| 2 | Heat source | LPG |
| 3 | Temperature control | Burner is controlled by temperature sensor |
| 4 | Maximum temperature | 220 ℃ -250 ℃ |
| 5 | Working temperature | 180~200 ℃ |
| 6 | Thermal insulation material | Rock wool |
| 7 | Insulating layer thickness | 150mm |
| 8 | Inner wall material | Galvanized steel sheet |
| 9 | Outer wall material | Cold rolled steel sheet |
| No. | Item | Specifications |
| 1 | Type of curing oven | SLY - 1 |
| 2 | Temperature control | Temperature sensor (temperature sensor is used for detecting the temperature of oven, and burner is controlled by temperature sensor) |
| 3 | Temperature control accuracy | ±3-6 ℃ |
| 4 | Maximum heating capacity | 160Kcal/h |
| 5 | Air blower | No 4 - 72 6.0c |
| 6 | Motor of air blower | Y160M - 4 - 7.5KW 380V |
| 7 | Thermal circulation volume | 8288-16576m3/h |
| 8 | Cooling method | Air cooling |
| 9 | Inner material | 310S stainless steel |
