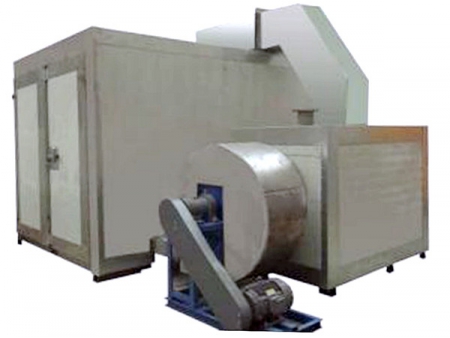

COLO-3217
Features
  • COLO-3217 powder coating oven is specially designed for high-quality curing finish.
  • Fuels can be natural gas, LPG, or diesel. Heating is much faster that reduces operating cost and increases productivity efficiently.
  • Working size of 1.6x1.7x3.2 mm suits for bigger parts or batch powder curing production.
  • Fully assembled shipment, no welding is required, gives a quick access to work.
  • Customized service is available as we have over 10 years design and manufacture abilities.
Specifications
Model COLO-3217
Operating dimensions 1650 width x 1700 height x 3200 depth mm
Overall dimensions 1950 width x 2100 height x 3500 depth mm
Power supply LPG / natural gas / diesel
Voltage 220V/380V
Frequency 50-60 Hz
Warm-up time 15-30min (180°C)
Temperature stability <± 3-5°C
Temperature Max. 250°C
Motor power 4 kW
Ventilation performance 1131-2565m3/h
Burner Italy Riello, 100,000kcal
Details

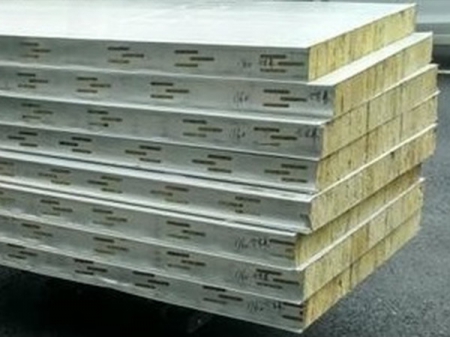

Oven Materials

  • The powder coating oven utilizes a sandwich structure design.
  • Rock wool board insulation of at least 100mm thick is inserted between galvanized inner wall and color-steel external skins to get an optimum insulation effect.

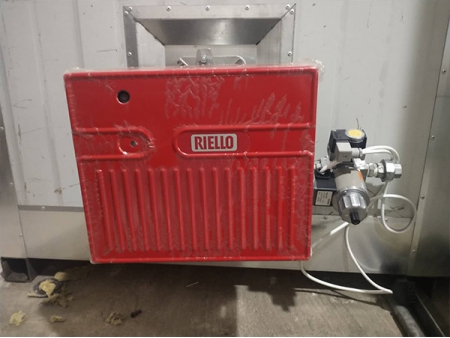

Burner

  • Italy imported Riello burner takes full utilization of fuels and gives much quicker raise to a required temperature inside oven chamber.
  • Indirect heating mode features more environmental friendly, and supplies clean hot air to prevent contamination of powder coated objects.

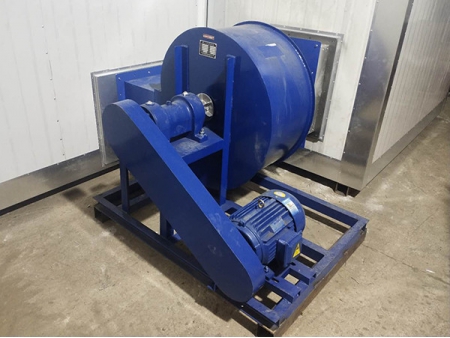

Circulation Fan

Circulation fan cycles the hot air through the entire oven chamber, provides constant temperature and optimum curing environment, ensuring objects to be heated evenly.

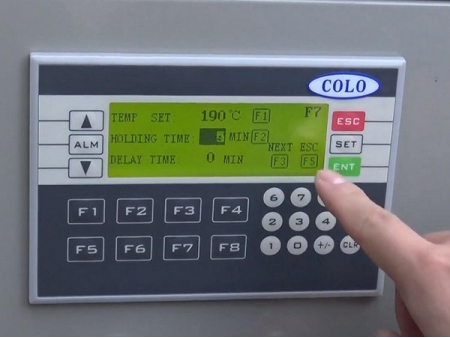

PLC Controller

  • PLC controller supports a high precision and reliable heating process.
  • Operators could set the desired temperature, heating time and other parameters on the panel, and control the fan system.

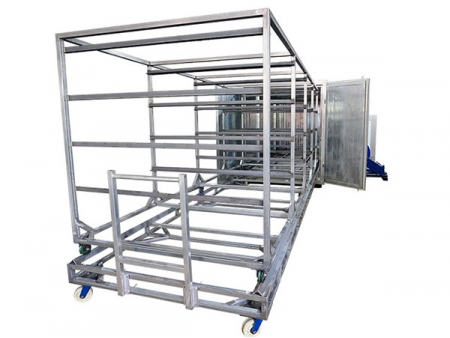

Transport System

Trolleys are convenient to transport objects, combination of outer and inner trolleys will not pollute the oven chamber, ensuring the purity of parts.
