8110 Single Bent Box Wrench Manufacturer

8110 Single Bent Box Wrench

Request a Quote

View All: http://bestsafetytools.com/5-15-8110-single-bent-box-wrench.html

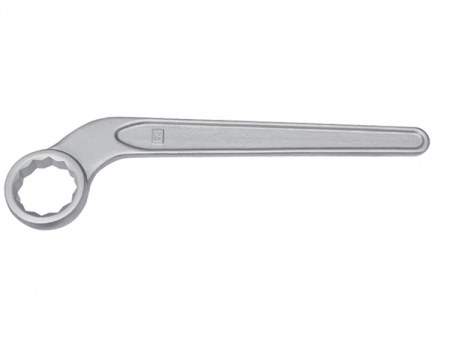

The code No.8110 stainless steel single bent box wrench is used to tighten or loosen bolts and nuts, suitable for use where space is limited instead of straight single box wrench. It is made of stainless steel processed by drop forging.

304QF stainless steel tools technical parameters:
Chemical composition: %

C	Si	Mn	Cr	Ni	S	P	N
≤0.08	≤0.85	≤1.8	18.0-20	8.0-10.5	≤0.03	≤0.045	≤0.2

Physical property

Tensile strength: σb(MPa)≥520
Tensile strength: σb(MPa)≥520
Offset yield strength:σ0.2(MPa)≥205
Elongation:δ5(%)≥40
Contraction percentage of area: z(%)=60
Density (20℃, g/cm3): 7.93
Hardness: HRC15-25

Melting point (℃): 1398~1454
Specific heat (0~100℃, KJ·kg-1K-1): 0.50
Heat conductivity (W·m-1·K-1): (100℃) 16.3, (500℃) 21.5
Linear expansion coefficient (10-6·K-1): (0~100℃) 17.2; (0~500℃) 18.4
Resistivity (20℃, 10-6Ω·m): 0.73
Magnetism: ≤5nT within 10cm in the magnetic field

Martensitic stainless steel (cutting tools stainless steel): representative grade: 420
The mechanical property of martensitic stainless steel is adjustable by heat treatment. Generally speaking, it is a type of hardenable stainless steel. It is hardened after quenching. Different tempering temperatures give different combinations of hardness and toughness. This stainless steel is widely used in such industries where the requirements of corrosion resistance is not very high, plus the cutting tools and machine elements have high requirements on strength.

420 stainless steel tools parameters:
Chemical composition: %

C	Si	Mn	Cr	Ni	S	P
0.16-0.25	≤1.00	≤1.00	12.0-14.0	≤0.75	≤0.03	≤0.04

Physical property

Tensile strength: σb(MPa)≥365
Offset yield strength:σ0.2(MPa)≥440
Elongation:δ5(%)≥20
Contraction percentage of area: z(%)=50
Density (20℃, g/cm3): 7.75

Hardness: HRC35-45
Melting point (℃): 1427
Specific heat (25℃, J·kg-1K-1): 460
Heat conductivity (W·m-1·K-1): 24.9
Linear expansion coefficient (mm/℃): (at20-100℃)

Parameters:

Number	S (mm)	L (mm)	Weight (g)
8110-10	10	119	45
8110-12	12	151	50
8110-14	14	151	60
8110-16	16	174	90
8110-17	17	174	90
8110-19	19	207	195
8110-22	22	207	180
8110-24	24	250	300
8110-27	27	250	270
8110-30	30	295	420
8110-32	32	295	420
8110-34	34	307	600
8110-36	36	307	600
8110-38	38	340	830
8110-41	41	340	810
8110-46	46	370	930
