Automatic finger joint shaper with trimming saw for making finger joints that link several short workpieces into one

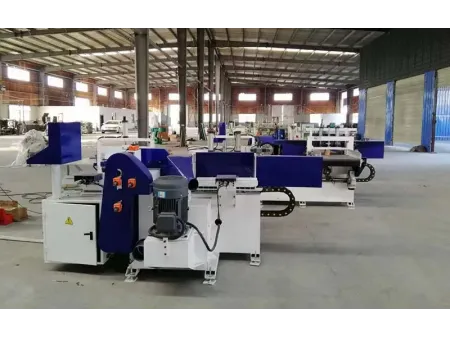

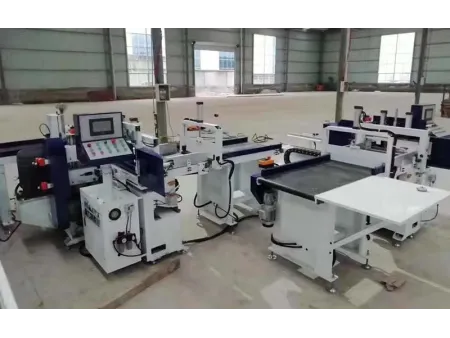

RLT-SC600 Fully Automatic Finger Joint Machine

Woodworking Machinery

Work table size (L×W)760×600mm
Max. workpiece height150mm
Machine dimensions (L×W×H)2700×1730×1550mm
Machine weight2000kg

Finger joint machines precisely join short solid wood pieces into longer, structurally sound components, making them ideal for producing table legs, chair backs, and similar furniture parts. By utilizing short offcuts, they maximize raw material use and reduce waste. These joint shapers automatically handle end trimming, finger joint shaping, and gluing in a continuous workflow, ensuring consistent quality and efficiency.

Specifications

Work table size (L×W) 760×600mm
Max. workpiece height 150mm
Max. workpiece width 600mm
Trimming saw speed 2840rpm
Finger cutter speed 6000rpm
Finger cutter motor power 11kW
Scoring saw motor power 0.75kW
Trimming saw motor power 4kW
Total power 35kW
Machine dimensions (L×W×H) 2700×1730×1550mm
Machine weight 2000kg
Number of operator 1 person

Advantages

Equipped with premium servo motors for smooth, accurate, and fast operation.
Mature control programming ensures seamless jointing and significantly improves production speed.
High automation level minimizes manual labor and reduces workforce costs.
Integrated safety guards protect users during operation, ensuring compliance with workshop safety standards.
Uses durable branded components such as Omron, Schneider, Honeywell, and CHINT for long-term reliability.
High-quality configuration results in minimal downtime and fewer maintenance needs.
Features an automatic gluing system with an aluminum glue roller for uniform coating and long service life, making it more durable and precise than traditional rubber rollers.
