Utility Tractor, 85-95HP
Request a Quote
YTO-NLX854F/NLX904F/NLX954F
Features
- This tractor is designed for versatile performance in orchards and vineyards, compatible with various implements like sprayers, trenchers, and plows.
- The YTO four-cylinder diesel engine with dual-stage balancing provides strong power with low vibration and fuel efficiency.
- A built-in dry air filter and under-mounted muffler protect against impacts during tight orchard work.
- Multiple gear options, including 12F 4R, 12F 12R, or 24F 8R, provide a wide range of speeds to meet different operational needs.
- An independent dual-action clutch allows separate control of driving and PTO, enhancing work efficiency.
- The hydrostatic steering ensures easy, flexible handling, with an adjustable steering wheel for driver comfort.
- Hydraulic disc brakes deliver reliable stopping power with minimal effort.

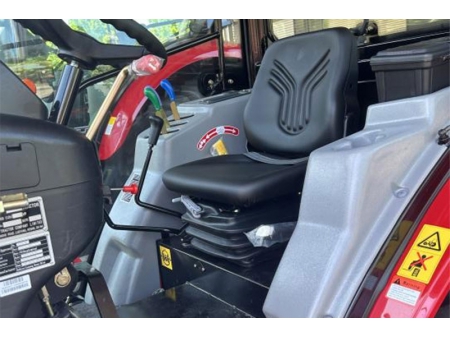

- The GRAMMER seat offers four-stage adjustments for a comfortable ride.
- The panoramic cab provides a clear, wide field of view with durable, wear-resistant interior options and an optional air conditioning system for driver comfort.

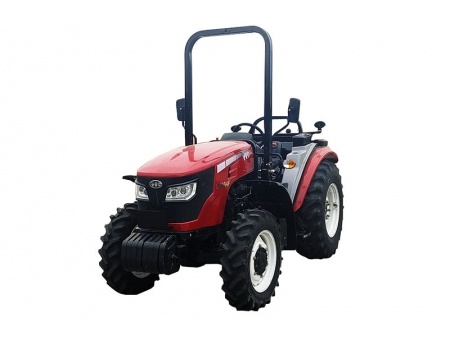

- ROPS (Rollover Protection Structure)
- Tractor interior made of engineering plastics
- Hydraulic control console
- 3 Hydraulic multipliers
Specifications
| Model | NLX854F | NLX904F | NLX954F |
| Engine type | 4-cylinder, natural aspiration diesel engine | ||
| Rated engine power kW(hp) | 62.5(85) | 66.1(90) | 70(95) |
| Rated engine speed (rpm) | 2300 | ||
| Clutch | Independent, double action | ||
| Gears | 12F 4R; 12F 12R or 24F 8R (optional) | ||
| Speed range (km/h) | 1.8-29.8 | ||
| Brake | Wet, disc | ||
| Rear side PTO (rpm) | 540/1000 | ||
| Lifting force (link joint) (kg) | ≥2300 | ||
| Hydraulic output (set) | 3 | ||
| Overall dimensions (L*W*H) (mm) | 4165*1580*2350 (Cab) / 4165*1580*2530 ( ROPS) | ||
| Wheel base (mm) | 2184 | ||
| Ground clearance(mm) | 300 | ||
| Wheel track(mm) (F/R) | 1240/1160 | ||
| Min. turning radius (m) | 3.6±0.3 | ||
| Tyre (F/R) | 9.5-20/14.9-24 | ||
| Total mass (kg) | 3320 (Cab) / 3120 (ROPS) | ||
