C-Frame Hydraulic Press
Request a Quote
Gap frame press for sheet metal forming
Gap frame press for sheet metal forming

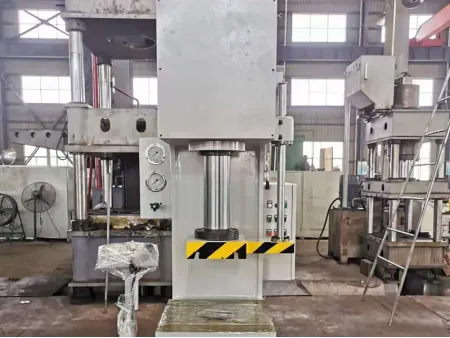

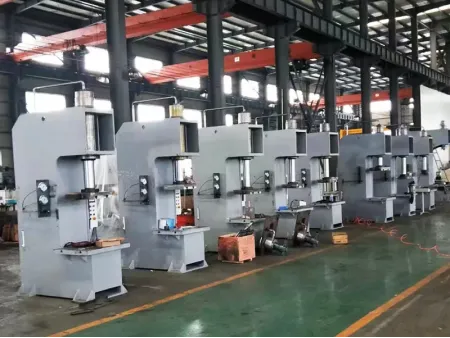

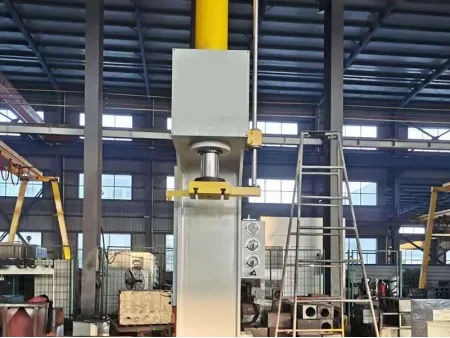

The C-frame hydraulic press features a robust 'C' shaped single-column structure, fully welded from steel, ensuring superior rigidity and durability. The hydraulic system is ingeniously integrated within the frame itself, enhancing the machine’s aesthetic and functional compactness. Equipped with a PC programmable controller, this press offers a centralized button control system allowing operations in adjustment, manual, and semi-automatic modes. This setup ensures intuitive control and ease of maintenance.
- Features
- Specifications
- Accessories
Features
- Robust Design
Engineered with a computer-optimized, C-shaped single-arm structure, the press offers superior rigidity and durability. Its simple design enhances operational ease and accessibility. - Durable Construction
The frame is constructed from fully welded steel plates, ensuring a robust build. An independent electrical control system enhances reliability and simplifies maintenance. - Advanced Hydraulic Control
The machine features an 2-way valve integrated system to ensure reliable performance, long service life, minimal hydraulic shock, and reduced leakages. - Versatile Control Options
The hydraulic system is controlled via a centralized button panel, providing flexible operation modes including jog, automatic, and foot pedal. This allows for adaptable usage according to different manufacturing requirements.
Applications
- Metal Fabrication
Ideal for stretching, punching, and bending operations on metal plates, particularly suitable for forming stainless steel kitchenware and cabinet shells. - Material Handling
Efficient in both hot and cold extrusion processes, and correction of metal components. - Diverse Manufacturing
Extensively used in the molding of powder and abrasive products, as well as in pressing and shaping plastic and insulating materials.
Specifications
Model | |||||||||
Nominal force (KN) | 100 | 250 | 400 | 630 | 1000 | 1600 | 2000 | 3150 | |
Open height (mm) | 630 | 630 | 700 | 800 | 900 | 960 | 960 | 1600 | |
Max. stroke (mm) | 400 | 500 | 500 | 500 | 500 | 500 | 500 | 1000 | |
Max. pressing speed (mm/s) | 50 | 50 | 50 | 50 | 34 | 20 | 20 | 100 | |
Ram working speed (mm/s) | 6-12 | ||||||||
Max. return speed (mm/s) | 140 | 110 | 100 | 100 | 70 | 53 | 53 | 65 | |
Throat depth (mm) | 250 | 305 | 325 | 325 | 325 | 325 | 325 | 1000 | |
Working table size (mm) | left–right | 410 | 510 | 600 | 630 | 700 | 700 | 700 | 1000 |
front–back | 420 | 570 | 650 | 600 | 600 | 600 | 600 | 1000 | |
Working table height (mm) | 600 | 710 | 600 | 600 | 700 | 700 | 700 | ||
Upper platen size (mm) | left–right | 200 | 250 | 250 | 275 | 300 | 400 | 500 | 800 |
Upper platen size (mm) | front–back | 200 | 250 | 250 | 275 | 300 | 400 | 500 | 800 |
Total power (kW) | 3 | 4 | 7.5 | 11 | 11 | 11 | 11 | 22 | |
Max. pressure (Mpa) | 20 | 20 | 20 | 20 | 20 | 20 | 25 | 25 |
Accessories
- Working table
- Precision straightening system
- Photoelectric safety device
- Industrial touch screen
- Proportional speed control system
- Heating device
- Cooling device
- Feeding device
- PLC programmable controller
