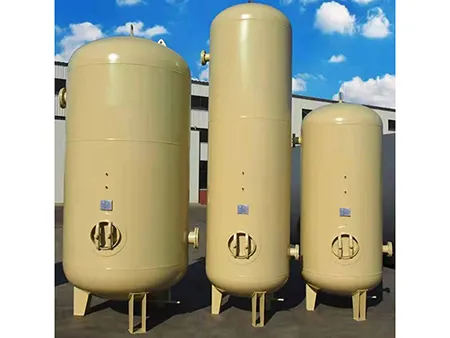

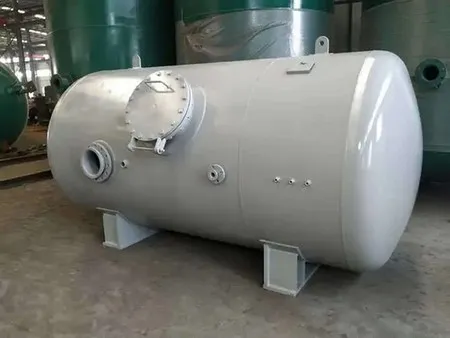

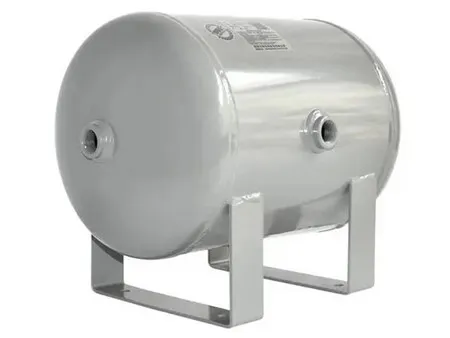

Carbon Steel Air Receiver
Carbon steel air receiver is a specialized pressure vessel designed for storing compressed air. It primarily functions to buffer stored air while stabilizing system pressure, preventing frequent loading and unloading cycles of air compressors and removing most of the liquid water. Typically, it is used in conjunction with air compressors, air dryers, and filters to form a compressed air station for industrial production.
To ensure safety and stability, the air receivers undergo various tests, such as flaw detection, hydrostatic testing, and non-destructive testing. Only after passing inspections by the local Bureau of Quality and Technical Supervision are they certified and released from the factory with a pressure vessel certificate.
- Volume
0.1-100m³
- Working pressure
0.8-7.0MPa
Carbon steel air receivers are mainly used in the industrial sector, such as in chemical and petrochemical companies, for storing non-corrosive gases. In contrast, stainless steel air receivers are versatile enough for both industrial and domestic uses. They are used for storing medical oxygen and other gases and can also store liquefied gases.
Technical Data Low Pressure Flange /Thread Type Inlet and Outlet Air Receiver| Volume/Pressure | Volume/Pressure | Volume/Pressure | Volume/Pressure |
| 0.3m³/8kg | 3m³/8kg | 10m³/8kg | 30m³/8kg |
| 0.3m³/10kg | 3m³/10kg | 10m³/10kg | 30m³/10kg |
| 0.3m³/13kg | 3m³/13kg | 10m³/13kg | 30m³/13kg |
| 0.3m³/16kg | 3m³/16kg | 10m³/16kg | 30m³/16kg |
| 0.6m /8kg | 4m³/8kg | 12m³/8kg | 40m³/8kg |
| 0.6m/10kg | 4m³/10kg | 12m³ /10kg | 40m³/10kg |
| 0.6m³/13kg | 4m³/13kg | 12m³ /13kg | 40m³/13kg |
| 0.6m³/16kg | 4m³/16kg | 12m³ /16kg | 40m³/16kg |
| 1m³ /8kg | 5m³/8kg | 15m³/8kg | 50m³/8kg |
| 1m³/10kg | 5m³/10kg | 15m³/10kg | 50m³/10kg |
| 1m³/13kg | 5m³/13kg | 15m³/13kg | 50m³/13kg |
| 1.5m³/16kg | 5m³/16kg | 15m³/16kg | 50m³/16kg |
| 1.5m³/8kg | 6m³/8kg | 20m³/8kg | 60m³/8kg |
| 1.5m³/10kg | 6m³/10kg | 20m³/10kg | 60m³/10kg |
| 1.5m³/13kg | 6m³/13kg | 20m³/13kg | 60m³/13kg |
| 1.5m³/16kg | 6m³/16kg | 20m³/16kg | 60m³/16kg |
| 2m³/8kg | 8m³/8kg | 25m³/8kg | 75m³/8kg |
| 2m³/10kg | 8m³/10kg | 25m³/10kg | 75m³/10kg |
| 2m³/13kg | 8m³/13kg | 25m³/13kg | 75m³/13kg |
| 2m³/16kg | 8m³/16kg | 25m³/16kg | 75m /16kg |
| Volume/Pressure | Volume/Pressure | Volume/Pressure | Volume/Pressure |
| 0.3m³/25kg | 1m³/40kg | 2m³/60kg | 6m³/30kg |
| 0.3m³/30kg | 1m³/50kg | 2m³/70kg | 6m³/40kg |
| 0.3m³/40kg | 1m³/60kg | 3m³/25kg | 8m³/25kg |
| 0.3m³/50kg | 1m³/70kg | 3m³/30ks | 8m³/30kg |
| 0.3m³/60kg | 1.5m³/25kg | 3m³/40kg | 10m³/25kg |
| 0.3m³/70kg | 1.5m³/30kg | 3m³/50kg | 10m³/30kg |
| 0.6m³/25kg | 1.5m³/40kg | 3m³/60ks | 15m³/25ks |
| 0.6m³/30kg | 1.5m³/50kg | 4m³/25kg | 15m³/30kg |
| 0.6m³/40kg | 1.5m³/60kg | 4m³/30kg | 20m³/25kg |
| 0.6m³/50kg | 1.5m³/70kg | 4m³140kg | 20m³/30kg |
| 0.6m³/60kg | 2m³/25ks | 5m³/25ks | 25m³/25kg |
| 0.6m³/70kg | 2m³/30kg | 5m³/30ks | 25m³/30kg |
| 1m³/25kg | 2m³/40kg | 5m³/40kg | 30m³/25k |
| 1m³/30kg | 2m³/50kg | 6m³/25kg | 30m³/30kg |
