Carbon Steel Doctor Blades

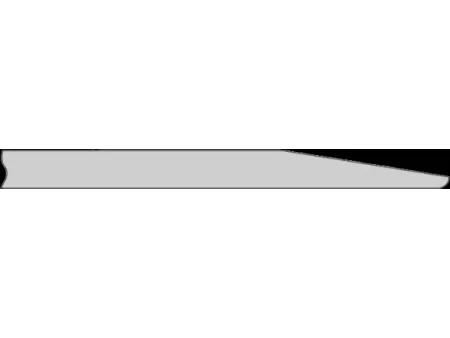

- Short Lamella Blade Edge

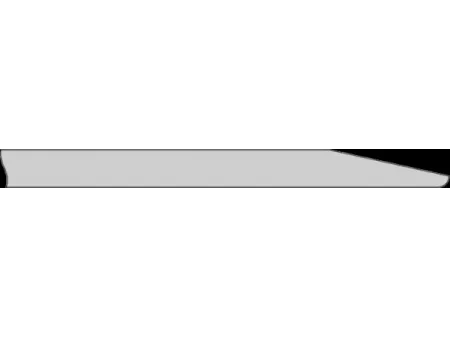

- Long Lamella Blade Edge

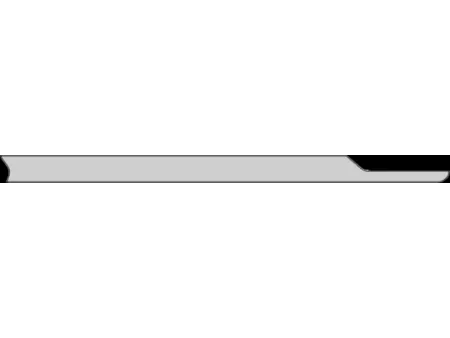

- Short Bevel Blade Edge

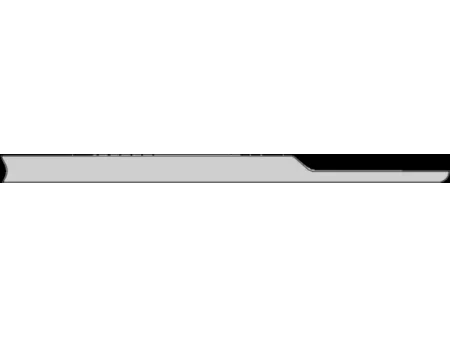

- Long Bevel Blade Edge

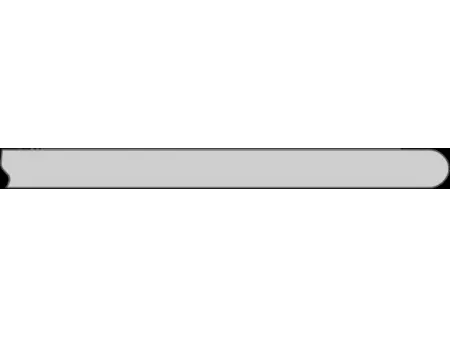

- Round Blade Edge

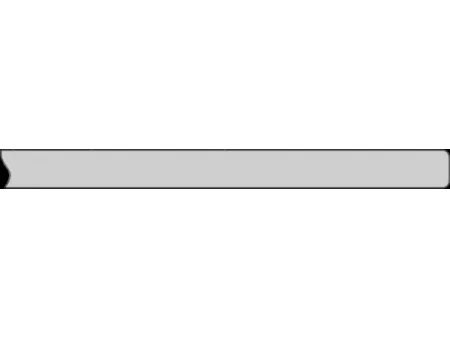

- Square Blade Edge
Carbon steel doctor blades provide high hardness and strong wear resistance, ensuring consistent performance across different printing applications. We use high-quality carbon steel sourced from Europe, delivering reliable ink metering and durability. These metal doctor blades feature a polished blade edge that improves ink transfer while maintaining print quality and reducing defects.
With excellent mechanical properties, these blades perform well at various press speeds, delivering stable results even in high-speed printing environments.
Our carbon steel doctor blades are available in different models to match specific printing needs:
Carbon steel doctor blades provide a cost-effective solution for printing applications that require high durability and strong wear resistance. Their hardness and edge stability ensure consistent ink metering, while the polished surface helps maintain clean ink transfer and reduces common printing defects. These blades are particularly suitable for small to medium print runs, offering a reliable balance between performance and affordability.
The combination of hardness and wear resistance allows these blades to maintain uniform ink distribution, reducing streaking, haze, and ink drag. The polished edge minimizes plate wear, ensuring precise ink control and sharper print details. By providing consistent performance throughout extended use, they contribute to overall print stability.
For basic printing needs where cost efficiency is a priority, CB-10 doctor blades are a practical option. With a maximum speed of 150m/min, they work well in gravure, flexographic, adhesive coating, woven bag printing, plastic film printing, cardboard printing, and coating applications.
For short-run applications that demand improved durability and print clarity, CC-20 doctor blades provide strong wear resistance and smooth blade wear. Capable of handling speeds up to 200m/min, they help reduce streaking and haze, ensuring a cleaner ink transfer in gravure and flexographic printing.
Printing conditions involving thicker, more abrasive inks require CZ-30 doctor blades. Manufactured from 20C2 carbon steel, these metal doctor blades support speeds up to 350m/min while preventing ink buildup and blade wear. The polished edge enhances performance by reducing streaking, haze, and ink drag, which is ideal for fine detail, deep-tone printing, and ceramic plate applications.
