Cat 5 Bulk Ethernet Cable
Request a Quote
Bulk Networking Cables, High Speed Ethernet Cable, Cat 5 Cable
Construction
- 1. Jacket;
- 2. Copper Conductor;
- 3. Insulation;
- 4. Ripcord;
Features
- Rating temperature: 70℃
- Reference Standard: YD/T1019-2013&EIA/TIA 568B.2 & ISO/IEC 11801
- Conductor: High-quality solid oxygen-free copper
- Colored high-density polyethylene insulation layer meet with the RoHS certification
- Rip Cord
- Environmental high-quality LSZH (Low Smoke Zero Halogen) flame retardant jacket meets with the RoHS certification.

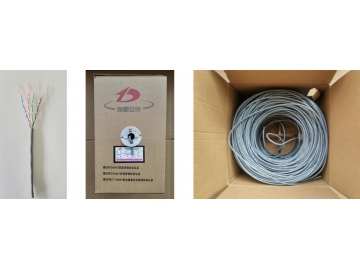

- Packing: In carton (305m/carton, carton size: 36CM x35.5CM x 21.5CM)
Cable Structure & Dimension
| Conductor | Pairs | 4 |
| Conductor type | Solid oxygen free copper | |
| Conductor dia. (mm) | 0.50±0.01(24AWG) | |
| Insulation | Material | HDPE |
| Insulation dia. (mm) | 0.9±0.02 | |
| Color | WH/BL - BL | |
| WH/OR - OR | ||
| WH/GN - GN | ||
| WH/BR - BR | ||
| Jacket | Material | PVC or PE |
| Color | Gray/White/Blue/Yellow, or it can be designated by customer. | |
| Overall dia. (mm) | 5.1±0.3 |
Physical Characteristics
| Working Temp. | -20℃~ 70℃ |
| Rated Temp. | 70℃ |
| Max Tensile Load | 110N |
| Min. Bending Radius | 8xOD |
| Flame Retardant Grade | PVC (CMR) |
Application
- 100 Base-T4
- 100 Base-TX
- 100VG-AnyLAN
- 155Mbps ATM
- 622Mbps ATM
Electrical Properties
| Max. Conductor DC. Resistance @ 20℃ | Ω/100m | ≤9.50 |
| DC. Resistance Unbalance between Pairs @ 20℃ | % | ≤2 |
| Min. Insulation Resistance @ 20℃ DC100V~500V | MΩ.KM | ≥5000 |
| Max. Working Capacitance @0.8kHz or 1kHz | nF/100m | ≤5.6 |
| Delay Difference between Pairs | ns/100m | ≤45 |
| Freq. | Zc | Atten. (20℃) | RL | NEXT | ELFEXT | PS ELFEXT | Phase Delay | Delay Difference |
| MHz | Ω | dB/100m | dB | dB | dB/100m | dB/100m | ns/100m | ns/100m |
| 4 | 100±15 | 4.1 | 18.8 | 53.3 | 53.3 | 49.0 | 552 | 45 |
| 8 | 100±15 | 5.8 | 19.7 | 48.8 | 48.8 | 42.9 | 547 | 45 |
| 10 | 100±15 | 6.5 | 20.0 | 47.3 | 47.3 | 41.0 | 545 | 45 |
| 16 | 100±15 | 8.2 | 20.0 | 44.2 | 44.2 | 36.9 | 543 | 45 |
| 20 | 100±15 | 9.3 | 20.0 | 42.8 | 42.8 | 35.0 | 542 | 45 |
| 25 | 100±15 | 10.4 | 19.3 | 41.3 | 41.3 | 33.0 | 541 | 45 |
| 31.25 | 100±15 | 11.7 | 18.6 | 39.9 | 39.9 | 31.1 | 540 | 45 |
| 62.5 | 100±15 | 17 | 16.5 | 35.4 | 35.4 | 25.1 | 539 | 45 |
| 100 | 100±15 | 22 | 15.1 | 32.3 | 32.3 | 21.0 | 538 | 45 |
