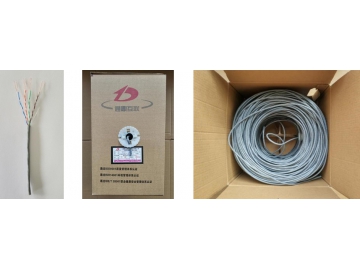

Cat 6A Bulk Ethernet Cable
Request a Quote
Bulk Networking Cables, High Speed Ethernet Cable, Cat 6A Cable
Construction
- 1. Copper conductor;
- 2. Insulation;
- 3. Aluminum;
- 4. Tinned copper;
- 5. Jacket;
Features
- Rating temperature: 70℃
- Reference Standard: YD/T1019-2013&EIA/TIA 568B.2&ISO/IEC 11801
- Conductor: High-quality solid oxygen-free copper
- Colored high-density polyethylene insulation layer meet with the RoHS certification
- Rip Cord
- Environmental high-quality LSZH (Low Smoke Zero Halogen) flame retardant jacket meets with the RoHS certification.
- Packing: In carton (305m/carton, carton size: 36CM x35.5CM x 21.5CM)
Cable Structure & Dimension
| Conductor | Pairs | 4 |
| Conductor Type | Solid oxygen free copper | |
| Conductor Dia. (mm) | 0.57±0.01(23AWG) | |
| Insulation | Material | HDPE |
| Insulation Dia. (mm) | 1.35±0.05 | |
| Color | WH/BL - BL | |
| WH/OR - OR | ||
| WH/GN - GN | ||
| WH/BR - BR | ||
| Jacket | Material | PVC or PE |
| Color | Gray/White/Blue/Yellow, or it can be designated by customer. | |
| Overall Dia. (mm) | 8.0±0.3 |
Physical Characteristics
| Working Temp. | -20℃~ 70℃ |
| Rated Temp. | 70℃ |
| Max Tensile Load | 110N |
| Min. Bending Radius | 8xOD |
| Flame Retardant Grade | CMR |
Application
- 100 Base-T4
- 100 Base-TX
- 100VG-AnyLAN
- 1000 Base-T
- 1000 Base-TX
- 155Mbps ATM
- 622Mbps ATM
Electrical Properties
| Max. Conductor DC. Resistance @ 20℃ | Ω/100m | ≤9.50 |
| DC. Resistance Unbalance between Pairs @ 20℃ | % | ≤2 |
| Min. Insulation Resistance @ 20℃ DC100V~500V | MΩ.KM | ≥5000 |
| Dielectric Strength, DC, 2s | KV | 2.5 |
| Delay Difference between Pairs | ns/100m | ≤45 |
| Freq. | Atten. (20℃) | NEXT | PS NEXT | ELFEXT | PS ELFEXT | Phase Delay | Delay Difference |
| MHz | dB/100m | dB | dB | dB/100m | dB/100m | ns/100m | ns/100m |
| 4 | 3.8 | 66.3 | 63.3 | 56.0 | 53.0 | 552 | 45 |
| 8 | 5.3 | 61.8 | 58.8 | 49.9 | 46.9 | 547 | 45 |
| 10 | 5.9 | 60.3 | 57.3 | 48.0 | 45.0 | 545 | 45 |
| 16 | 7.5 | 57.2 | 54.2 | 43.9 | 40.9 | 543 | 45 |
| 20 | 8.4 | 55.8 | 52.8 | 42.0 | 39.0 | 542 | 45 |
| 25 | 9.4 | 54.3 | 51.3 | 40.0 | 37.0 | 541 | 45 |
| 31.25 | 10.5 | 52.9 | 49.9 | 38.1 | 35.1 | 540 | 45 |
| 62.5 | 15.0 | 48.4 | 45.4 | 32.1 | 29.1 | 539 | 45 |
| 100 | 19.1 | 45.3 | 42.3 | 28.0 | 25.0 | 538 | 45 |
| 200 | 27.6 | 40.8 | 37.8 | 22.0 | 19.0 | 537 | 45 |
| 250 | 31.1 | 39.3 | 36.3 | 20.0 | 17.0 | 536 | 45 |
| 300 | 34.3 | 38.1 | 35.1 | 18.5 | 15.5 | 536 | 45 |
| 400 | 40.1 | 36.3 | 33.3 | 16.0 | 13.0 | 536 | 45 |
| 500 | 45.3 | 34.8 | 31.8 | 14.0 | 11.0 | 536 | 45 |
