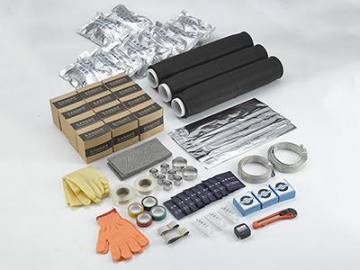

Cold Shrink Cable Joint Single Core to Three Core up to 24kV

20kV Cold shrinkable cable intermediate connectors feature an excellent insulation property, thus ensuring overall circuit safety and reliability.

We offer single core and three core cable joints for different cable types, allowing these cable joints to be applicable to a wide array of cable types, so long as the voltage is between 12-24kV.

1-core cold shrinking intermediate joint

Type and specification	Cross sectional area of applicable cable (mm²)
JLS-20/1.1	35 - 70
JLS -20/1.2	95-150
JLS -20/1.3	185-300
JLS -20/1.4	400-630

3-core cold shrinking intermediate joint

Type and specification	Cross sectional area of applicable cable (mm²)
JlS-20/3.1	35 - 70
JlS-20/3.2	95-150
JlS-20/3.3	150-240
JlS-20/3.4	400-630

Major technology index

Item	Parameter
West state power frequency withstand voltage test(external)	72kv,1min
Dry power frequency voltage withstand test(inside)	51kv,5min
Impact withstand voltage test	125kv1.2/50us 10 times
Partial discharge test	≤10pc(1.73U)
