The marker and coiler, as a 3-roll coiling machine, is specially designed for coiling wheel rims. It features a strong structure, easy adjustment, a high efficiency and easy operation. This machine flattens the welding joints, ensuring the next butt-welding process is smooth. The material thickness is no more than 4.5mm.

The marker and coiler supports both marking and flattening. It allows for printing required marks on the rim blank, including the rim size, model, manufacturer, production date, and more. Flattening is carried out for subsequent welding.

The electrical system consists of PLC, contactor, inverter, servo system, motor, and various testing sensors. The controller is sourced from the Schneider M218 series, and features a small size, fast speed, standardization, serial communication port, excellent functions and an outstanding reliability.

Process drawings

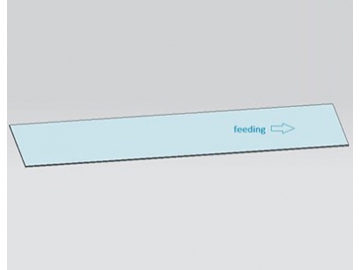

  • Feeding

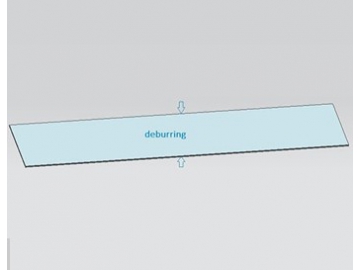

  • Deburring

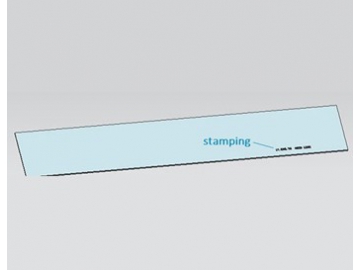

  • Stamping

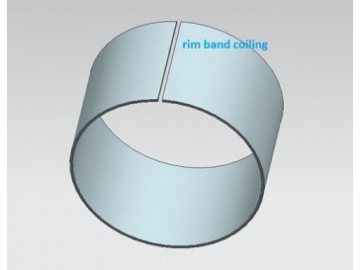

  • Rim Band Coiling
Features
  • Integrating deburring, marking and coiling functions, this marker and coiler improves productivity and saves floor space.
  • The horizontal structure and chain transmission ensures a convenient operation and simple daily maintenance.
  • The marker speed is adjustable according to customer requirements.
  • An automatic discharging platform can be installed behind the discharging end to achieve automatic workpiece transportation.
  • Long life span: the main shaft uses a high-performance bearing from NSK.
  • Safe and reliable: The safety is guaranteed through the use of an electrical control system from Schneider.
  • Small rim production line supports weld joint flattening operation, which allows the coiled workpieces to directly enter the butt-welding process.
Technical specs
Application Small rim line Large rim line Extra large rim line
Rim diameter range 13inch to 18inch 17.5inch to 26inch 20inch to 54inch
Rim band thickness ≤ 4mm ≤ 8 mm ≤ 8 mm
Rim band width 3inch to 10inch 5.5inch to 16inch 7inch to 28inch
Main machine spec Feeder available available available
Deburrer JMC-100 JMC-100 JMC-100
Stamper DZJ-120 DZJ-120 DZJ-120
Coiler QYJ-600 QYJ-800 QYJ-1500
Input power Deburrer power 4kW 5.5kW 5.5kW
Coiler power 7.5kW 11kW 11kW
Input total power 11.5kW 16.5kW 16.5kW
Coiling roller diameter 155mm 165mm 175mm
Coiling roller speed 88r/min 63r/min 63r/min
Power supply AC 380V/3phase/50Hz, Can be customized
