Top load cartoning machine for packaging products in cartons

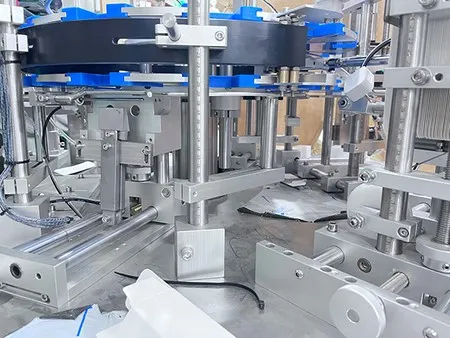

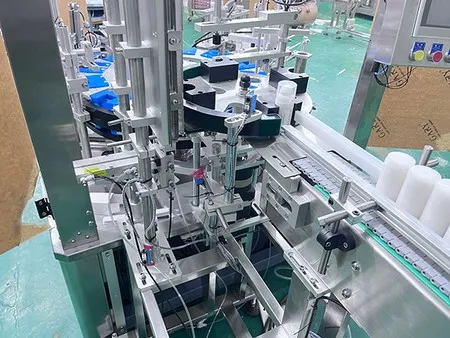

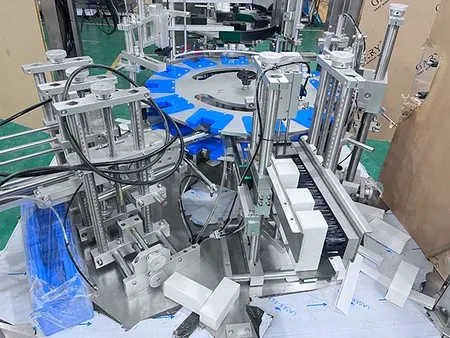

The automatic vertical cartoner employs a vacuum carton suction mechanism to feed cartons into the starwheel. Empty cartons are transferred by the starwheel to Folding Mechanism 1, where the carton bottom is sealed. Afterward, products are manually inserted into the cartons, and the starwheel then moves the cartons to Folding Mechanism 2 to seal the cartons. Finally, the starwheel transfers the finished cartons to the carton pusher for output.


Technical Specifications
Model YX- LZH50
Min. Carton Size 60×20×20mm
Max. Carton Size 200×80×80mm
Speed 20-60 cartons per minute
Power Supply 220V 50/60HZ single phase
Motor Power 1/4HP 15:1
Air Consumption 150L/min
Machine Dimensions (L×W×H) 1750×1200×1500mm
Machine Weight 950kg
Machine Constructions
  • Main Frame
  • Transmission System
  • Starwheel
  • Carton Feeding System
  • Folding Mechanism 1
  • Folding Mechanism 2
  • Carton Pusher
