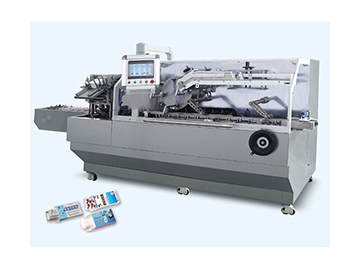

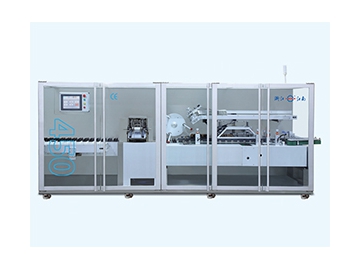

Multifunctional Automatic Cartoner
Request a Quote

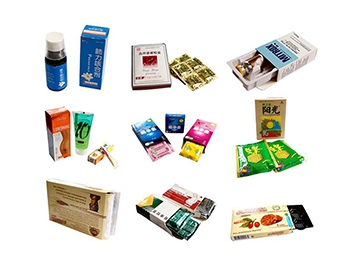

This multifunctional automatic cartoning machine is designed to handle a diverse range of packaging needs. It's suitable for AL/PVC blister plates, injection trays, bottles, ointments, and various rectangular or flat products. Thanks to its versatility, it is an ideal solution for automated cartoning in different industries.
Main functions- Automatically folds and conveys leaflets (1-4 folds).
- Automatically distributes and supplies materials.
- Automatically unfolds cartons and places leaflets and materials inside.
- Synchronously prints batch numbers (three rows).
- Automatically seals the paper cartons.
- Automatically eliminates waste products.
- The automatic multifunctional cartooning machine ensures continuous feeding across all mechanisms, resulting in stable and reliable carton packing.

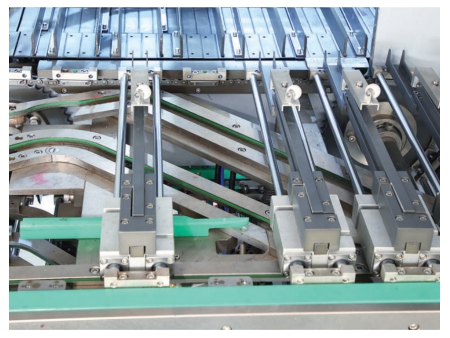

- It has an alarm and halt system in the pusher device for instances when products do not reach the correct position, guaranteeing high-quality packaging and safe operation.

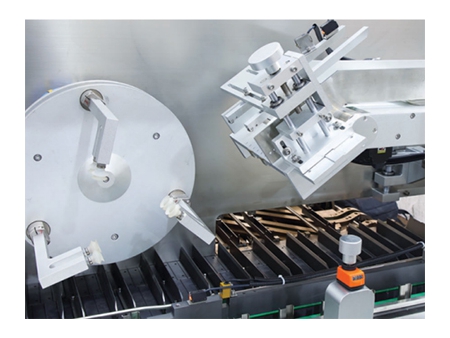

- The cartoning machine's carton-opening systems, both continuously moving and pulling types, are designed for enhanced stability and reliability.
- The servo-driven material feeding mechanism is both stable and dependable.
- Safety features include a halt facility for air pressure and vacuum protection and an automatic halt check when the safety cover is open, ensuring the operator's safety.
- Adjusting product sizes is made simple and quick with a hand wheel.
- Operates with variable frequency speed regulation, an automatic PLC control system with a touchscreen interface, ensuring easy operation and stable system performance.
- Includes overload protection for the main drive, failure diagnosis indicators, and an automatic shutdown in case of faults.
| Model | ||||
| Cartoning Speed (box/min) | ≤220 | ≤320 | ≤450 | |
| Box | Quality Requirement (g/m²) | 250-350 | 280-350 | 280-350 |
| Dimension Range (L×W×H) | (70-220)×(35-135)×(15-85)mm | (70-180)×(35-85)×(15-65)mm | (70-180)×(35-80)×(15-50)mm | |
| Leaflet | Quality Requirement (g/m²) | 60-80 | 60-80 | 60-80 |
| Unfolded Leaflet Size (1-4 Fold) (mm) | (90-250)×(90-180) | 90-250)×(90-180) | 90-250)×(90-180) | |
| Compressed Air | Air Consumption | ≥0.3m³/min 0.6mpa | ≥0.3m³/min 0.6mpa | ≥0.3m³/min 0.6mpa |
| Main Motor Power | 2.2kW 380V 50HZ | 2.2kW 380V 50HZ | 3.2kW 380V 50HZ | |
| Machine Dimensions (L×W×H) (mm) | 4700×1550×1700 | 4200×1550×1700 | 4500×1550×1700 | |
| Machine Weight (kg) | 3000 | 3000 | 3500 | |
Jiangnan Enterprise is an experienced vertical cartoning machine manufacturer based in China. Our products include horizontal cartoning machine, automatic medicine packaging production line, automatic capsule filling machine, and much more.
