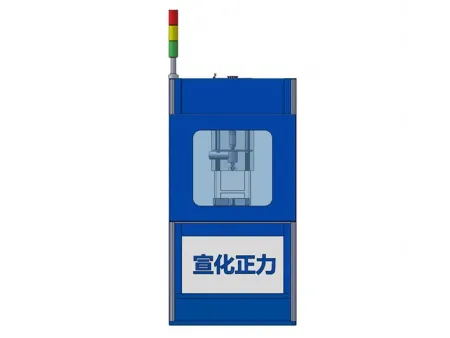

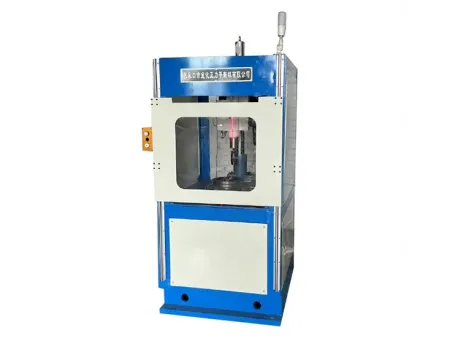

Automatic Vertical Balancing Machine

Request a Quote

Website: http://balancingmachine-en.com/1-1-1-automatic-vertical-balancing-machine.html

YLDZD-40

Hard-bearing balancing machine for workpiece with diameter of up to 360mm and maximum weight of 20kg

Automatic vertical balancing machines are hard-bearing balancing systems designed for disc-shaped components. They are commonly used for parts such as rotors, brake discs, flywheels, and pulleys. By removing material, these hard-bearing balancing machines correct unbalance with residual values as low as 1 mg. These balancing machines are easy to operate, and one person can manage several units at the same time with just simple start and stop commands.

Applications

Suitable for measuring and correcting unbalance in disc-shaped parts such as brake discs, pulleys, brake drums, clutches, flywheels, and similar components.

Brake disc balancing
Pulley balancing
Brake drum balancing

Specifications

Model	YLDZD-40
Workpiece weight	20kg
Max. workpiece diameter	36cm
Min. achievable residual unbalance (eMar)	1mg
Unbalance reduction ratio (URR)	≥90%
Unbalance compensation method	Drilling
Balancing machine type	Hard-bearing balancing machine
Balancing speed	300-800rpm
Power supply	TN-S (50Hz)
Air pressure	0.4-0.6MPa
Air consumption	6L/min
Max. workpiece thickness	350mm
Protection	Phase loss,overload,air pressure
Industrial dust collection	Automatic slag removal

Features

Can be equipped with different unbalance correction methods, including drilling, milling, or turning. The setup is flexible and can be adjusted according to the structure of the workpiece and the level of accuracy required, covering everything from rough balancing to high-precision correction.
A single-station design allows measurement, correction, and re-checking to be completed in one step, improving efficiency and ensuring reliable results.
When material removal is carried out at a dedicated station, overall balancing efficiency is significantly higher, up to 70% more compared with manual processes.

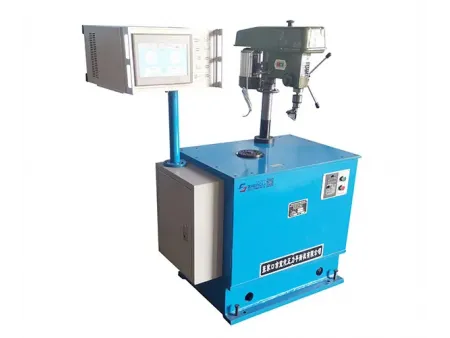

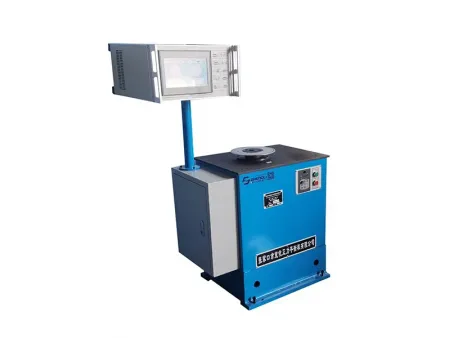

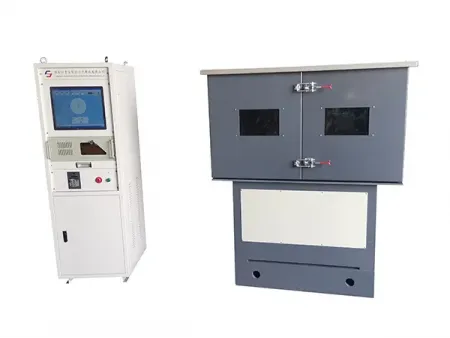

Related Balancing Machine
