Cartoning machine for carton forming, loading and closing

The automatic horizontal cartoner is suitable for packaging automotive interiors, home appliances, cosmetics, and similar items. It can automatically complete processes such as leaflet folding, carton opening, item cartoning, batch number printing, and carton sealing.


Technical Specifications
Model YX-CP100
Speed 30-60 cartons per minute (depending on products)
Carton Length 70-250mm
Carton Width 85-190mm
Carton Height 35-80mm
Motor Power 1.5kW
Power Supply 220V 50/60Hz
Cardboard Gray cardboard, white cardboard, corrugated cardboard
Air Pressure 0.6-0.8 MPa
Machine Dimensions (L×W×H) Approximately 4500×1600×1800mm
Machine Weight Approximately 1500kg
Configurations
Item Brand
PLC Delta Electronics
Touch Panel Delta Electronics
Inverter Delta Electronics
Photoelectric Sensor Omron
Switching Power Supply MEAN WELL
Circuit Breaker Schneider Electric
Push Button Schneider Electric
Contactor Schneider Electric
Relay Module Omron
Pneumatic Components AirTAC/SMC/domestic brands
Linear Guide SHAC
Motor DPG
Features
  • Temperature is precisely controlled using an intelligent digital display temperature controller or a touch screen control panel, designed for user-friendly operation.
  • The frame structure and openable control cabinet door design make installation and maintenance quick and easy.
  • Imported electronic components and seals ensure stable glue output with minimal fluctuations and high pressure, significantly improving production efficiency.
  • The progressive preheating melting tank design, with imported Teflon non-stick coating, minimizes energy consumption, reduces carbonization, and prevents clogs, maintaining optimal glue quality.
  • A precision filtration device removes impurities, ensuring smooth glue output and preventing nozzle blockages.
Process Flow

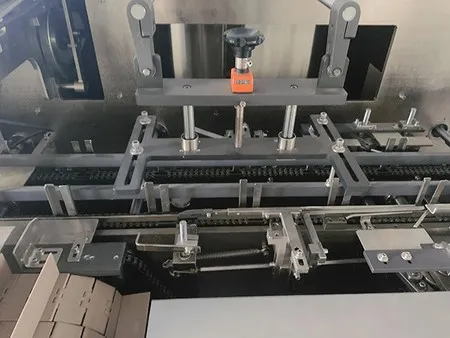

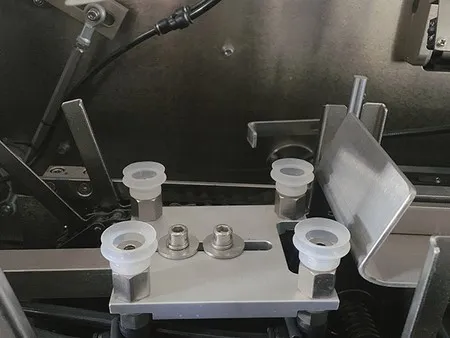

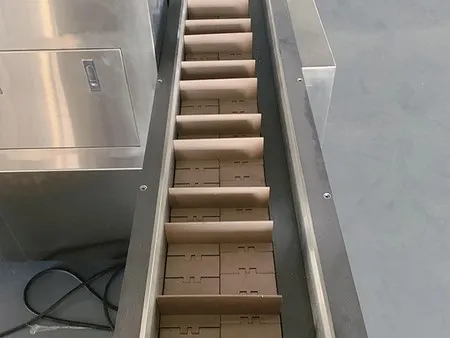

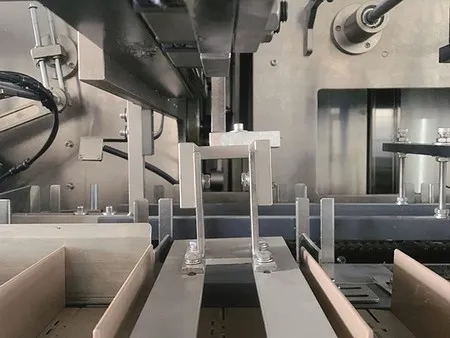

Manual product placement on the cartoner's conveyor → Detection by photoelectric sensor → Automatic carton forming → Left page automatic folding → Automatic product push into the carton → Right page automatic folding → Dual glue spraying and folding → Finished carton conveyed out by belt

Applications
  • Carton packaging industry: color boxes, cartons, cigarette and wine boxes, fruit boxes, corrugated boxes, etc.
  • Automotive interior industry: interior seals, car lighting manufacturing, car tailgate panels, headliners, windshields, lithium batteries, etc.
  • Home appliances and furniture industry: refrigerators, wine cabinets, televisions, air conditioners, sofas, mattresses, furniture edging, etc.
  • Cosmetics Packaging Industry: mascara, lipstick caps, mirror covers, powder covers, etc.
  • Medical and health products industry: sanitary napkins, diapers, non-woven fabrics, disposable protective clothing, etc.
  • Electronics Industry: circuit boards, control boxes, electronic components, photovoltaic, and electronic assembly, etc.
  • Textile coating and composite industry: garment accessories, leather and fabric composites, etc.
  • Air purification industry: filters, filter elements, air conditioning grids, etc.
